S.BUS Servo Channel Setting (R6208SB)
S.BUS servo channel setting can be performed by using an S.BUS compatible receiver, an SBC-1
channel changer or CIU-2 USB serial interface. To set the channel by using your R6208SB, please adhere
to the following steps:
Channel setting

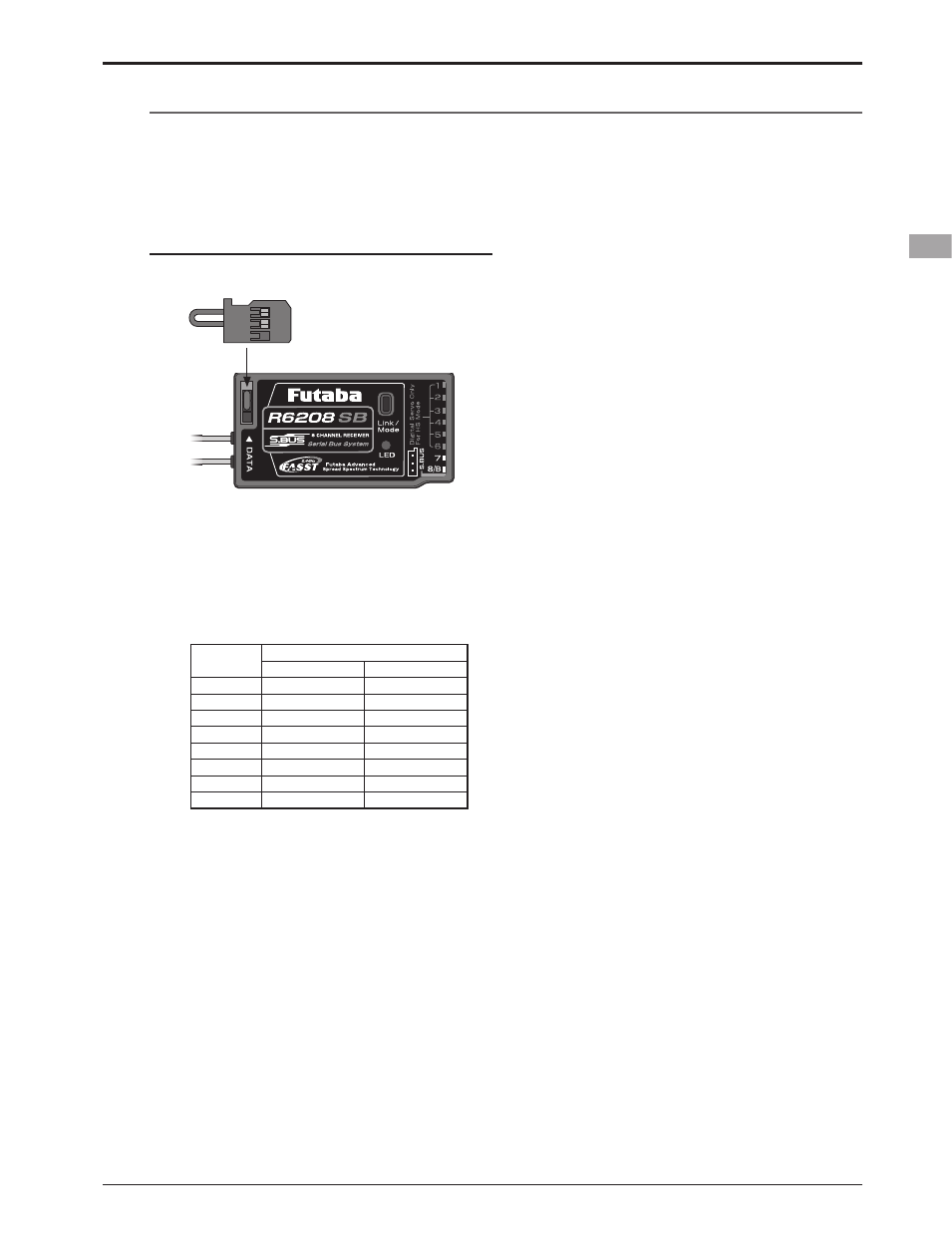

1. Connect the accessory short-plug to the
DATA port of the receiver.
Short-plug
(accessory)
* Connect the short-plug to the DATA port only when an
S.BUS servo channel is set. Normally do not connect the
plug.
2. Connect an S.BUS servo to the conventional
s y s t e m o u t p u t c o n n e c t o r ( 1 t o 8 )
corresponding to the channel you want to
set.
Output
connector
Channel setting
Mode A
Mode B
1
1
9
2
2
10
3
3
11
4
4
12
5
5
13
6
6
14
7
7
15
8
8
16
* Channel setting mode A (ch1 to 8 setting mode) or channel
setting mode B (ch9 to 16 setting mode) can be set.
3. Turn on the receiver.
* At once when turning on the receiver, the channel setting is
completed in mode A.
(To switch to mode B, press the Link/Mode
button until the red and green LED starts to
blink simultaneously. The channel setting is
completed in mode B.)
* The LED corresponding to the setting mode blinks.
Mode A: Red blinks 3 times
Mode B: Green blinks 3 times
4. Turn off the receiver.
