125

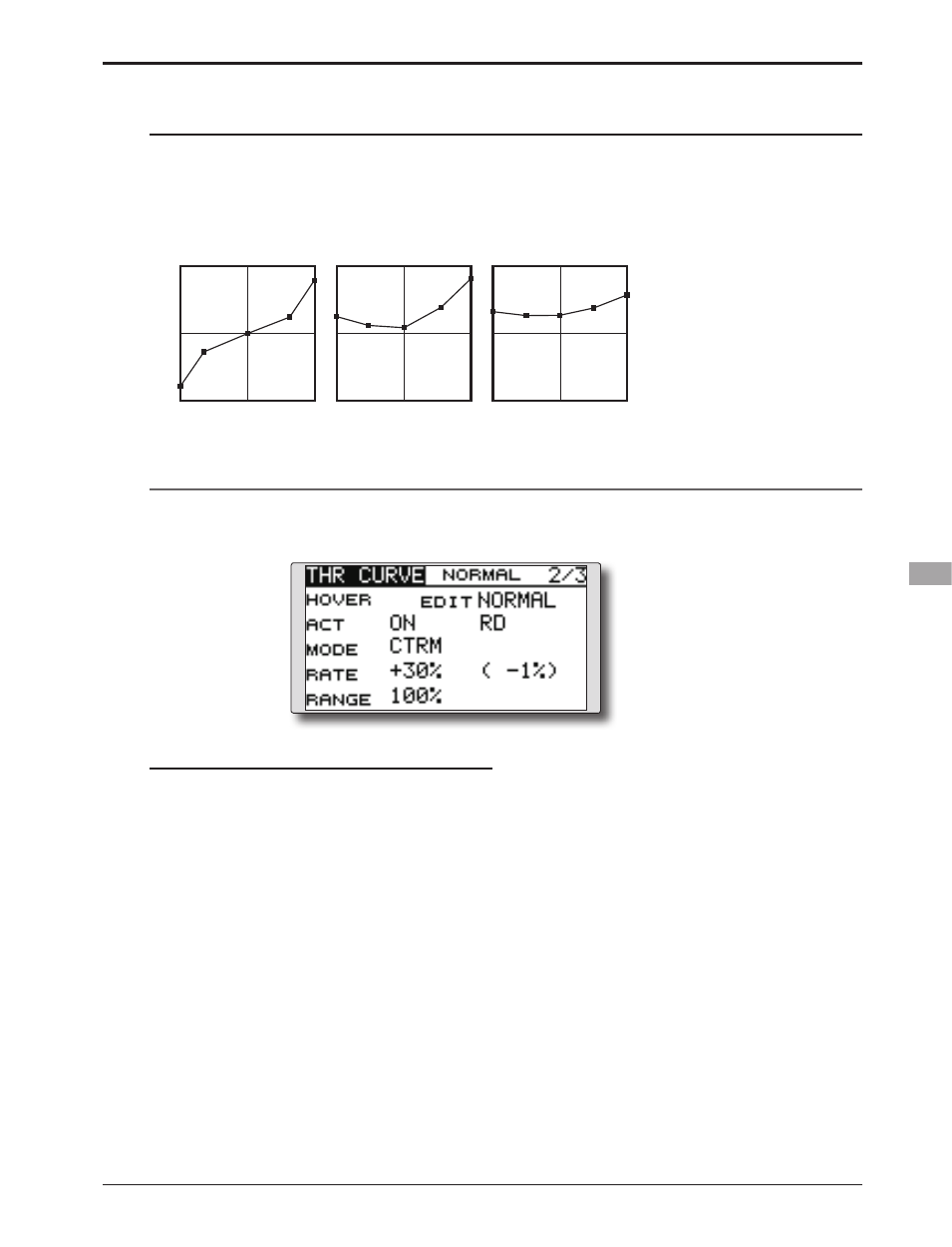

Normal Curve Idle-up 1 Curve Idle-up 2 Curve
●Throttle Curve (Example)
The curves shown below are created by inputting
the data of the 5 points 0% (low side), 25%,
50% (center), 75%, 100% (high) side for each
condition. When actually creating a curve, enter the
parameters specified per the model (or the reference
value).
Curve setting examples
Throttle Hover trim
Setting method
● Set the function to ACT ([ON]). (initial setting)
● Select the adjustment knob.
Selection example: RD (initial setting)
● The trim operation mode (Mode: CTRM/
NORM) can be selected.
CTRM mode: Maximum rate of change
near center by center trim operation
(recommended)
NORM mode: Normal trim (horizontal
movement trim) operation.
● The trim rate can be adjusted and the
operation direction can be set.
● Trim adjustment range (Range) setting
With smaller values, the trim is only active
near the center.
[Throttle hover trim setting]
