Futaba 8FGAS, 8FGHS 2.4GHz - Manual (Page 105)

105

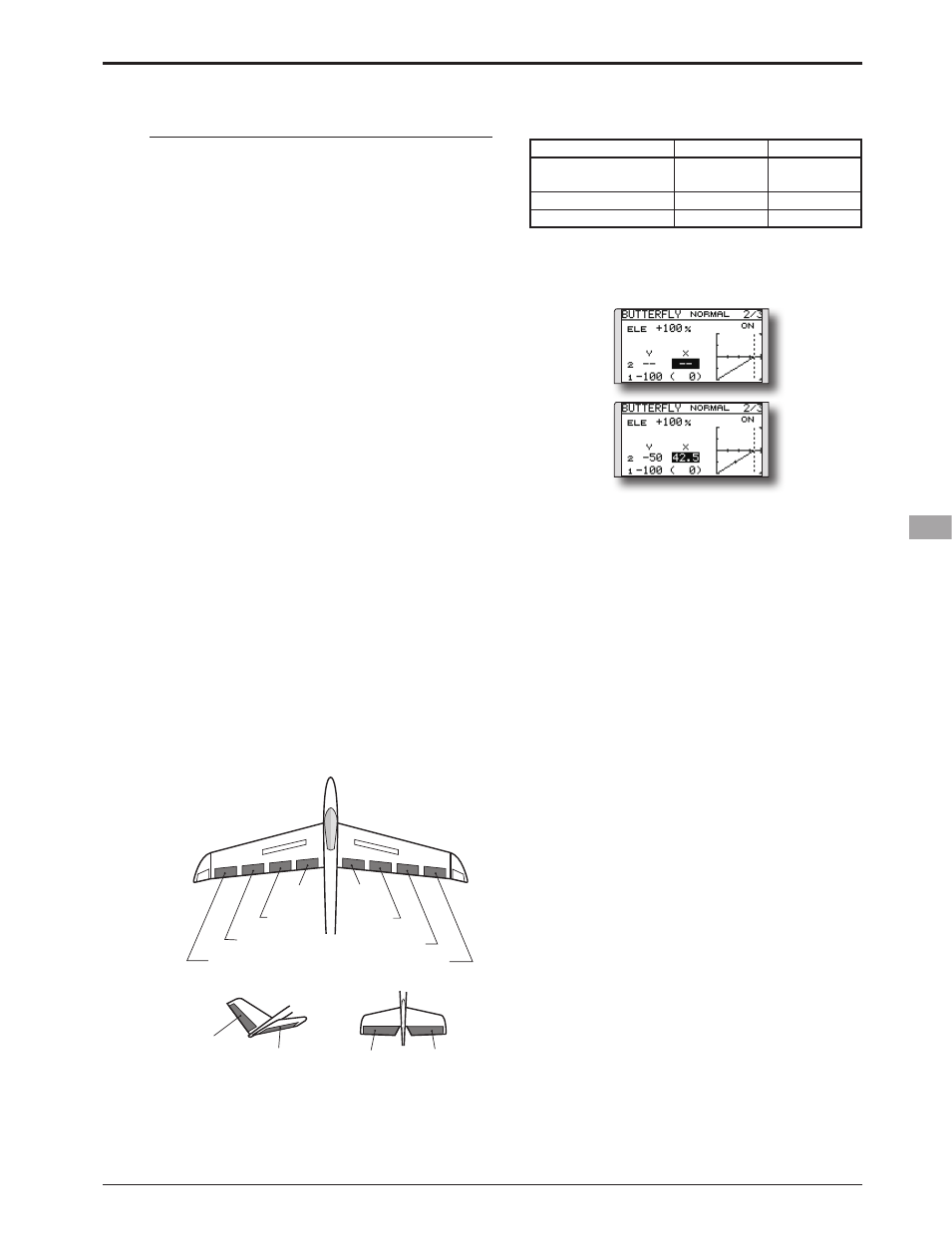

AIL 3
(Chip Aileron)
AIL 4
(Chip Aileron)
AIL1
(Main Aileron)
AIL 2
(Main Aileron)
FLP 2
(Camber Flap)
FLP 1
(Camber Flap)
ELEVATOR
ELEVATOR 2
V-TAIL
ELEVATOR ELEVATOR 2
AILVATOR
FLP 3
(Brake Flap)
FLP 4
(Brake Flap)
Setting method
●Activate the function
Move the cursor to the [ACT] item and touch
the RTN button to switch to the data input
mode. Select the ACT mode by scrolling the
touch sensor.
*The display blinks.
Touch the RTN button to activate the
function and return to the cursor mode. (ON
is displayed.)
When setting a switch, move the cursor to
the [SW] item and touch the RTN button to
call the selection screen. Select the switch
and set its ON direction. (Always ON at "--"
setting)
*For a description of the switch selection method, see the
description at the back of this manual.
●Rate adjustment
Move the cursor to the aileron, flap or
elevator rate item and touch the RTN button
to switch to the data input mode. Adjust the
rate independently by scrolling the touch
sensor.
Initial value: 0%
Adjustment range: -200~+200% (Elevator:
-120~+120%)
*When the RTN button is touched for one second, the rate is
reset to the initial value.)
Touch the RTN button to end the adjustment
and return to the cursor mode.
● Elevator compensation curve adjustment
Output (Y) Position (X)
Offset point Fixed (0) Fixed (offset
position)
2- Intermediate point Settable Settable
1- End point Settable Fixed
*When the intermediate point position setting button is
touched for 1 second, an intermediate point can be set. When
the button is again touched for 1 second, the intermediate
point is inhibited.
*When offset is set, the curve is initialized.
●Reference point adjustment
Move the cursor to the [OFFSET] item and
hold the airbrake stick to the desired position
and then touch the RTN button for one
second to set the butterfly operational
reference point.
Initial value: 0% (upper side)
Adjustment range: 0~100%
●Servo speed setting
Move the cursor to the aileron, flap or
elevator speed item and touch the RTN
button to switch to the data input mode.
Adjust the rate by scrolling the touch sensor.
Initial value: 0
Adjustment range: 0~27 (maximum delay)
*When the RTN button is touched for one second, the rate is
reset to the initial value.)
Touch the RTN button to activate the
function and return to the cursor mode.
