129
● Select the function name
and return to the Model
menu by touching the
RTN button.
THROTTLE MIX
This function corrects slowing of engine speed
caused by swash plate operation during aileron
or elevator operation. The method of applying
clockwise or counterclockwise torque when
pirouetting can also be corrected.
Setting example
● AIL to THR mixing counteracts the lag in
engine RPM's when an aileron input is given
to the helicopter. Engine over-speeding
can be adjusted independently for the
right aileron and left aileron inputs utilizing
Rates 1 and 2.

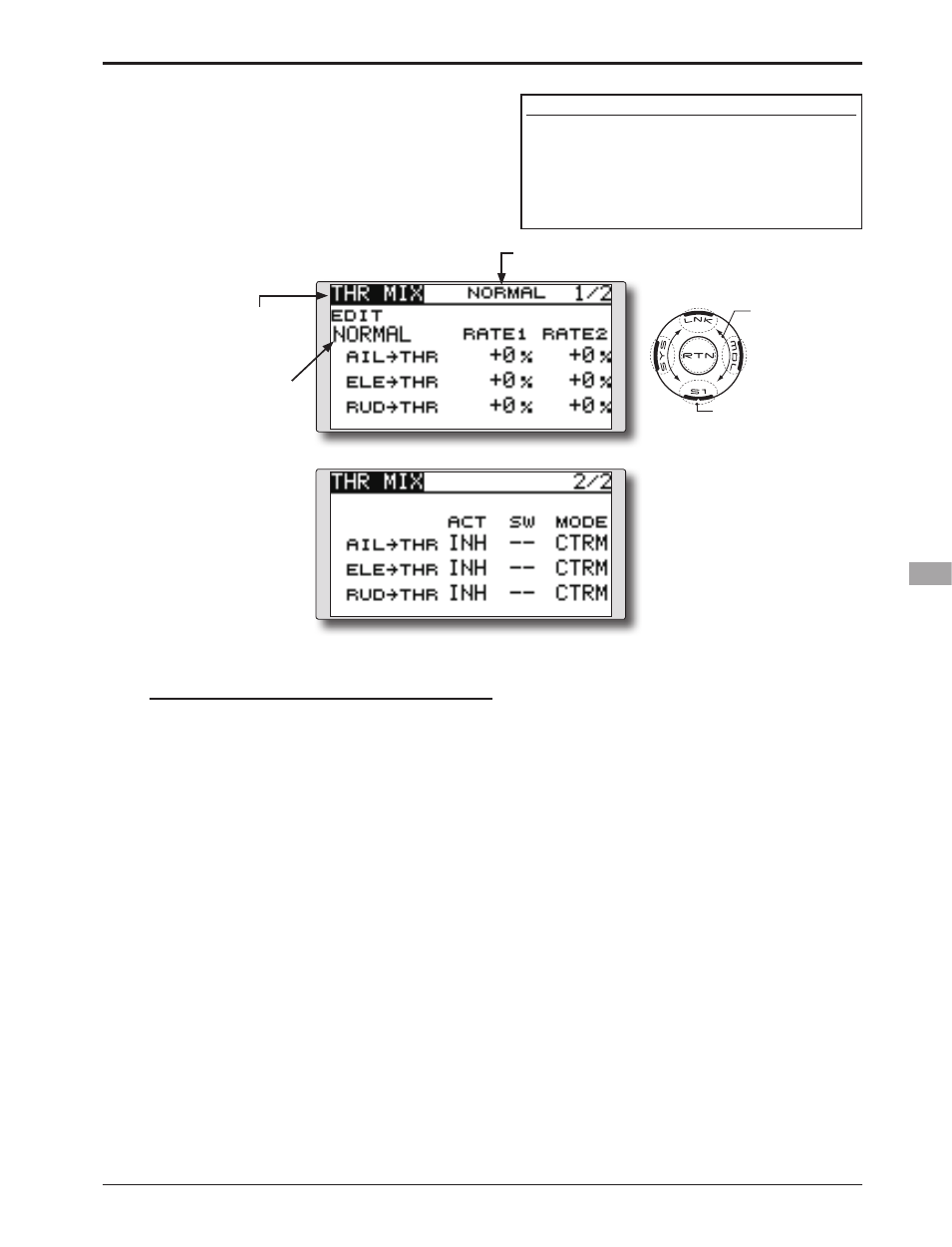

● Select [THROTTLE MIX] at the Model
menu and access the setup screen
shown below by touching the RTN
button.
Scrolling
● Moving cursor
● Selecting mode
● Adjusting value
● To next page
(Currently selected condition name)
Setting method
●Activate the mixing
When using this function, move the cursor to
the [ACT] item and touch the RTN button to
switch to the data input mode.
Select the ACT mode by scrolling the touch
sensor.
*The display blinks.
Touch the RTN button to activate the mixing
and return to the cursor mode. (ON is
displayed.)
[Switch selection]
When [ [--]] is set, the swash mixing function is
operated by merely selecting the condition.
When setting an [ON]/[OFF] switch, move the
cursor to the [SW] item and touch the RTN
button to call the selection screen. Set the
switch and its ON position.
*For a description of the switch selection method, see the
description at the back of this manual.
●Mixing rate adjustment
Move the cursor to the mixing rate item you
want to correct and touch the RTN button
to switch to the data input mode. Adjust the
rate independently by scrolling the touch
sensor.
Initial value: 0%
Adjustment range: -100~+100%
*When the RTN button is touched for one second, the rate is
reset to the initial value.)
Touch the RTN button to end the adjustment
and return to the cursor mode.
●Operation mode setting
Move the cursor to the [MODE] item and
touch the RTN button to switch to the data
input mode.
Select the operation mode by scrolling the
touch sensor.
*The display blinks.
CTRM mode: Corrects near the center only.
LIN. mode: Corrects the complete range.
Touch the RTN button to change the
operation mode and return to the cursor
mode.
●Condition selection
