Futaba 4GRS - Manual (Page 67)

(HOME screen)
(MENU 2 screen) (TH A.B.S screen) (MENU 1 screen)
Press
Press
Press
Press
Select
"TH A.B.S"
*This function is not available in "TH-STK : F10 mode".
67
Fu
nc
tio
n
Servo travel
Stick operation
AB.P
(Amount of
brake return)
TG.P (Starting point)
CYCL (Cycle)
DUTY (duty): X and Y ratio
X: (Brake application time)
Y: (Brake return time)
A.B.S
- AB.P : Amount of brake return
Sets the rate at which the servo
returns versus stick operation
for brake release. When set to
0%, the ABS function is not
performed. When set to 50%,
the servo returns 50% (1/2) of
the stick operation amount and
when set to 100%, the servo re-
turns to the neutral position.
With A.B.S.
Without A.B.S.

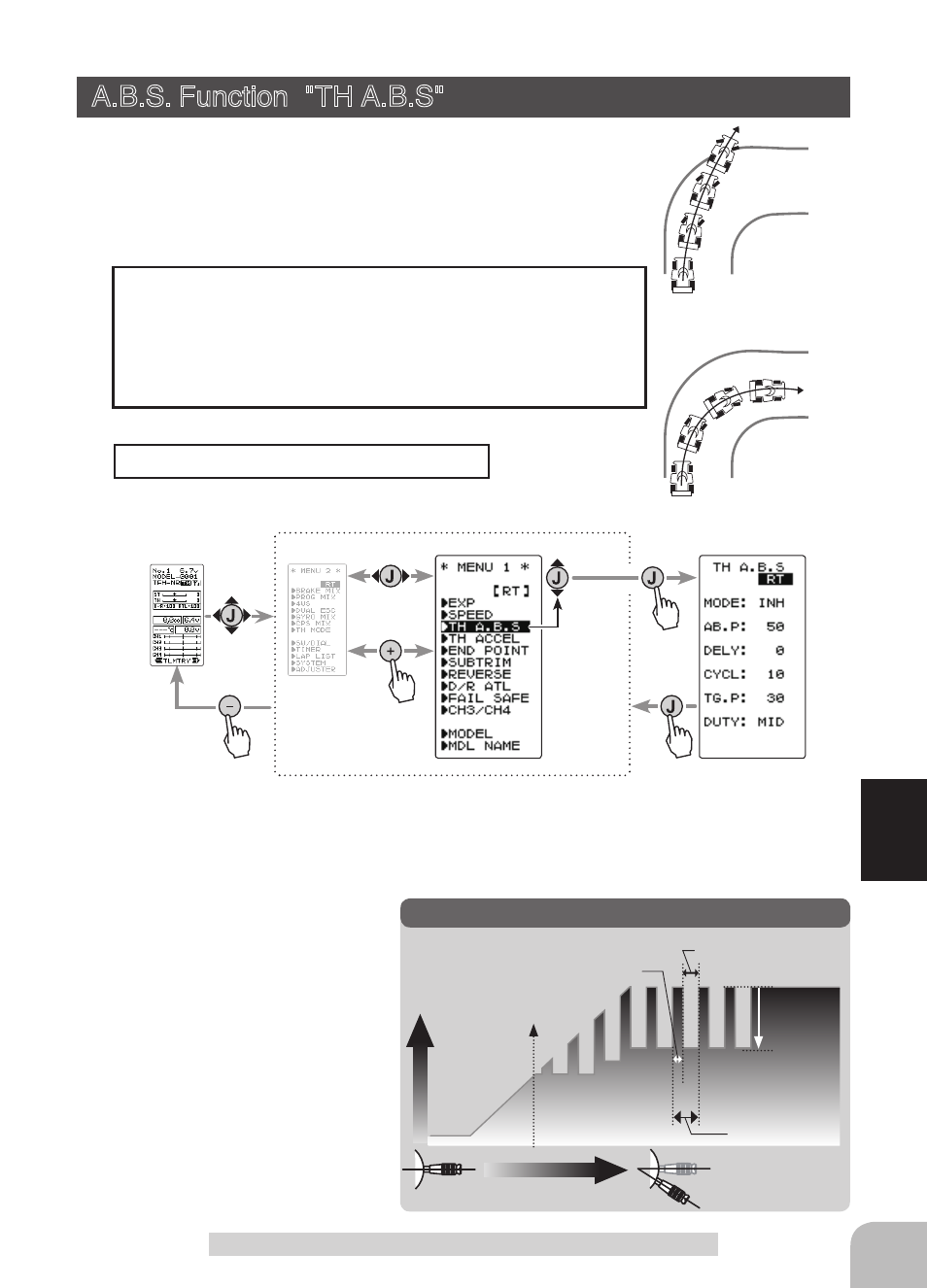

A.B.S. Function "TH A.B.S"
- When the brakes are applied, the throttle servo will pulse
intermittently. This will have the same effect as pumping the
brakes in a full size car.
- The brake return amount, delay amount, pulse cycle, and
brake duty can be adjusted.
Operation
A.B.S. Function "TH A.B.S" (Throttle system)
When the brakes are applied while cornering with a 4 Wheel
Drive or other type of vehicle, understeer may occur. This under-
steer can be eliminated and cornering improved using this func-
tion.
During ABS operation, the LED blinks.
Operation display
Display "TH A.B.S" screen by the following method:
Setup items
MODE : Function ON/Off
AB.P
: Brake return amount
DELY : Delay amount
CYCL : Cycle speed
TG.P : Starting point
DUTY : Cycle duty ratio
