Neutral Adjuster
Neutral Adjuster Operation

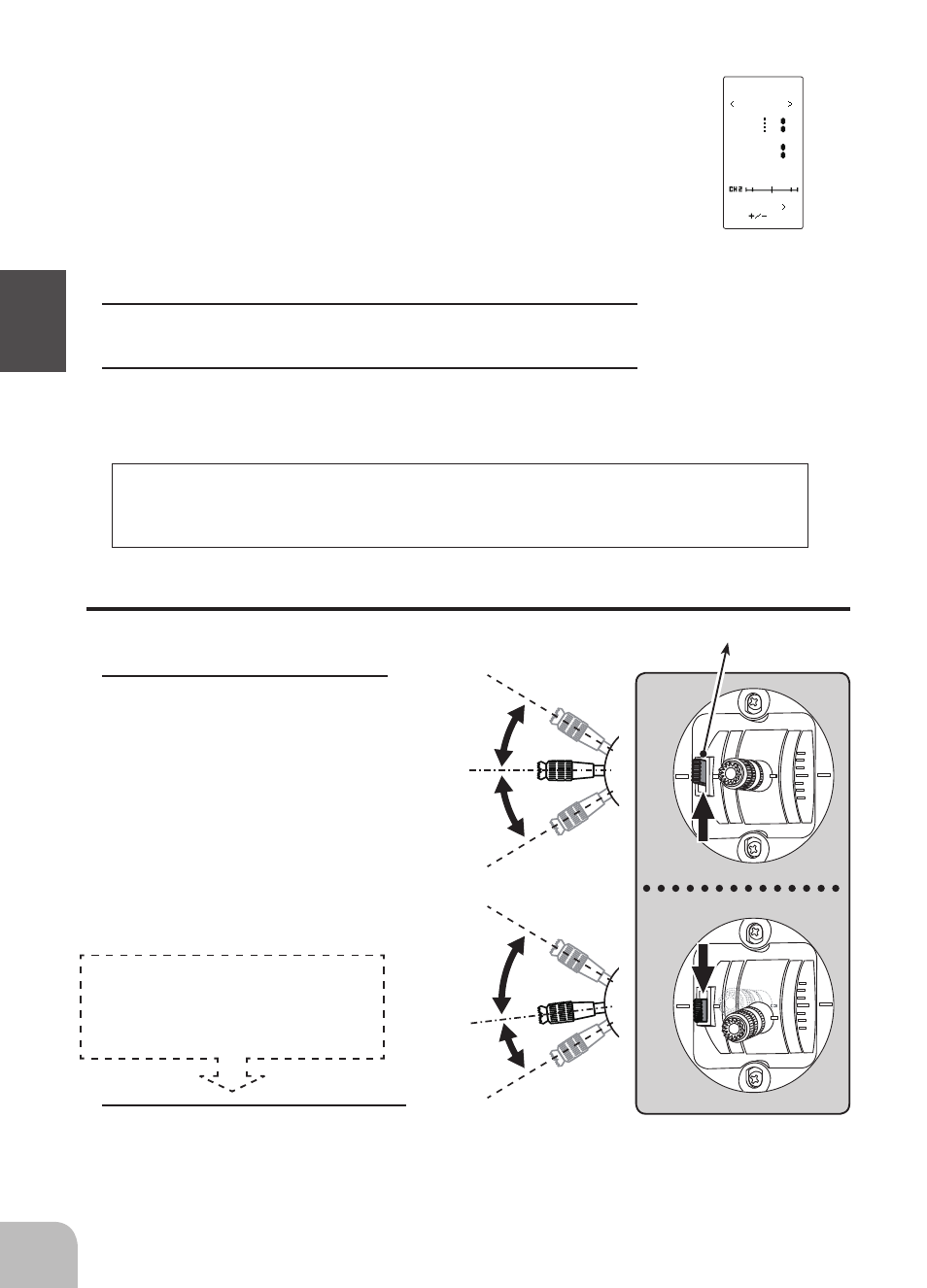

The neutral adjuster selects the throttle stick neutral position.
5
5
7
3
1
Neutral adjuster is set to 5 : 5 when
in the upper position. It will be set
to 7 : 3 when moved to the lower
position
• If 7 : 3 is used, the neutral to full power
stick range is increased.
mark (fig-4) is displayed, pressing the (JOG) button.
An internal check is performed automatically. When each adjust-
ment point is within a fixed range, correction is performed and
"COMPLETE!" (fig-5) is displayed.
If an adjustment point is not within a fixed range, correction is
not performed and the correction data is not updated.
If the stroke is made too narrow, this will cause an error.
In that case, extend the stroke.
7
When complete, return to the ADJUSTER screen by press the (JOG)
button.
8
Next, move the cursor to [RT] by the (JOG) button, and press the (JOG)
button.
Key
CANCEL
ADJUSTER
THROTTLE
N5 5
N7 3
BRK
FWD
COMPLETE!
fig-5
Caution
When the stroke is adjusted, the throttle servo travel should also be adjusted elec-
tronically. If the stroke is mechanically reduced too far the adjusting screw may
fall out.
When a neutral adjuster change
is made, be sure to carry out
system change.
Caution
2
On the MENU2 screen, select the set-
ting item "SYSTEM" using the (JOG)
button, and press the (JOG) button.
