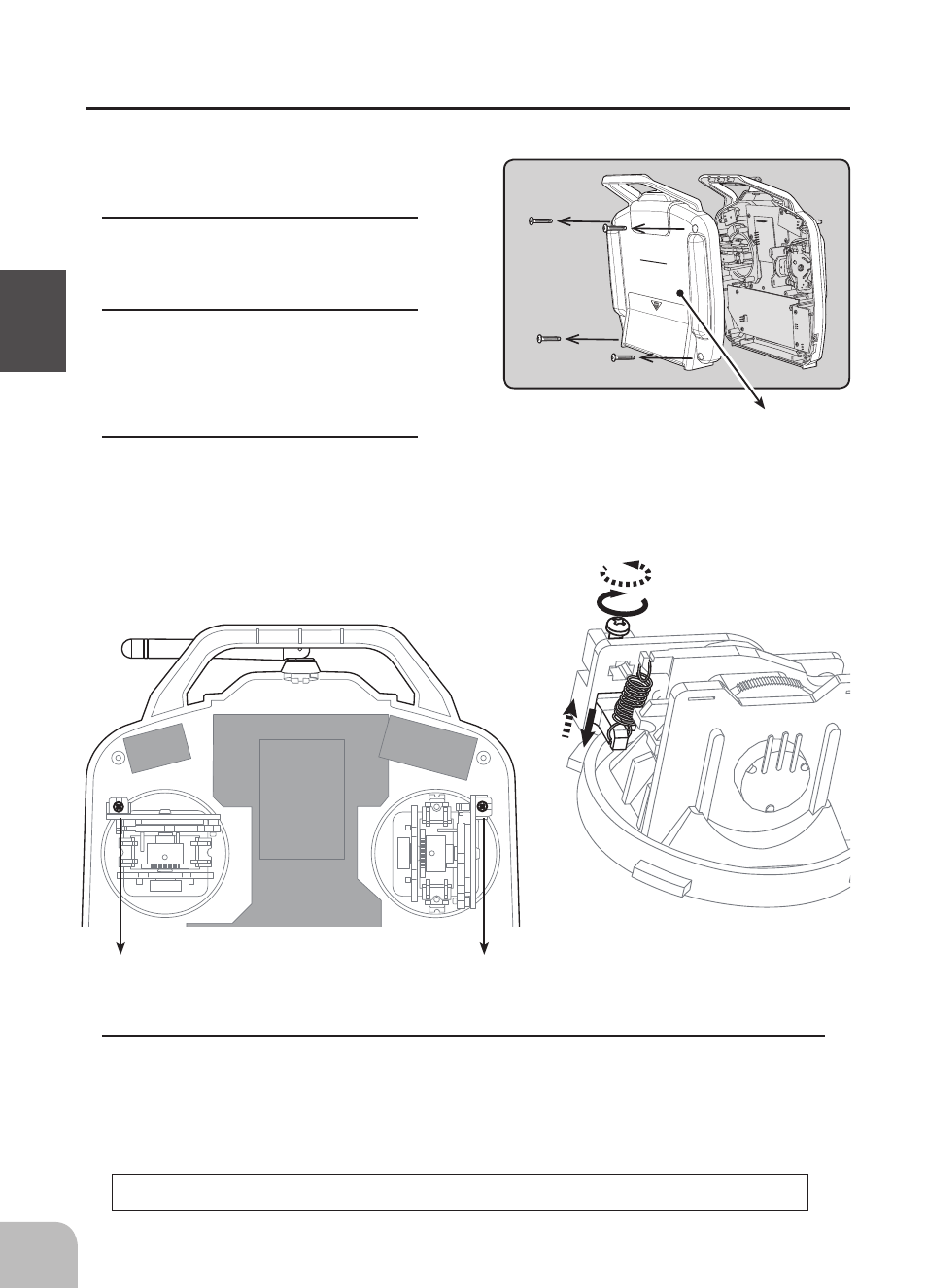

Steering stick adjusting
screw
Throttle stick adjusting
screw
Stick Tension Adjustment
Make this adjustment when you want to change the steering stick or throttle stick
spring tension.
Adjustment
1
Remove the battery from the transmit-
ter.
2
Using Phillips screwdriver, as shown in
a figure, four screws are removed, and
a rear case is removed.
• Don't touch internal electronic components.
3
Turn the adjusting screw using a small
Phillips screwdriver such as a watch-
maker's screwdriver.
• Turning the adjusting screw clockwise, in-
creases the spring tension.
• The adjustment range is about five turns in
both directions, from the initial position.
4
When the adjustment is completed, re-attach the rear case with a Phillips screwdriver.
• Take great care not to damage the wiring when re-attaching the rear case.
• Foreign substances must not be allowed to get into the interior of the case.
Caution
If turned too far counterclockwise, the adjusting screw may fall out.
Rear case
