(Set-Up Procedure When Installed In a Car)
When installing the servos in a car, performing function set-up in the following order is
recommended.
1
Carry out the Trims Initial Set-up as described on the previous page.
2
Set the servo direction of operation using the Reverse function.
- The servo installation method and linkage direction depend on the kit. Therefore, the servo
operation direction may have to be reversed relative to transmitter operation. Before install-
ing the servo, check the operating direction and set it using the Reverse function.
3
Set the subtrim and adjust the servo neutral point.
4
Set the throttle stick travel by adjusting the throttle stick mechanical ATL
to your liking.
- When the throttle stick travel is changed, set the servo travel as required using the adjuster
function.
5
Set EPA of each channel and adjust the servo throw (travel).

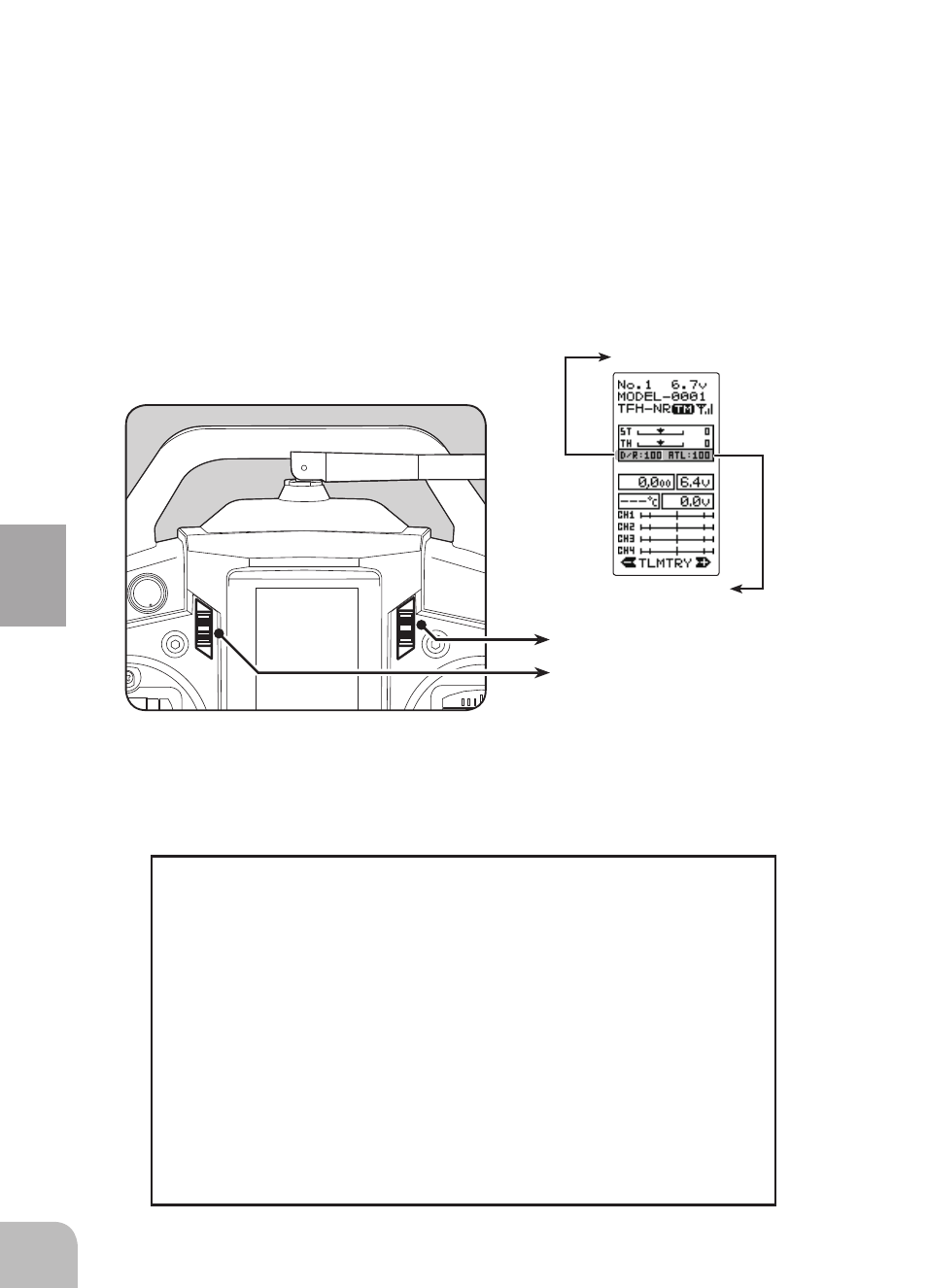

- Steering dual rate (DT3) check
At initial set-up, steering dual rate (D/R) is assigned to the DT3. Operate the lever and
check if the D/R value displayed on the screen changes. After checking D/R, set the
steering dual rate to 100%.
- Throttle ATL (DT4) check
At initial setting, throttle ATL (ATL) is assigned to the DT4. Operate the lever and
check if the ATL value displayed on the screen changes. After checking ATL, set throt-
tle ATL to 100%.
