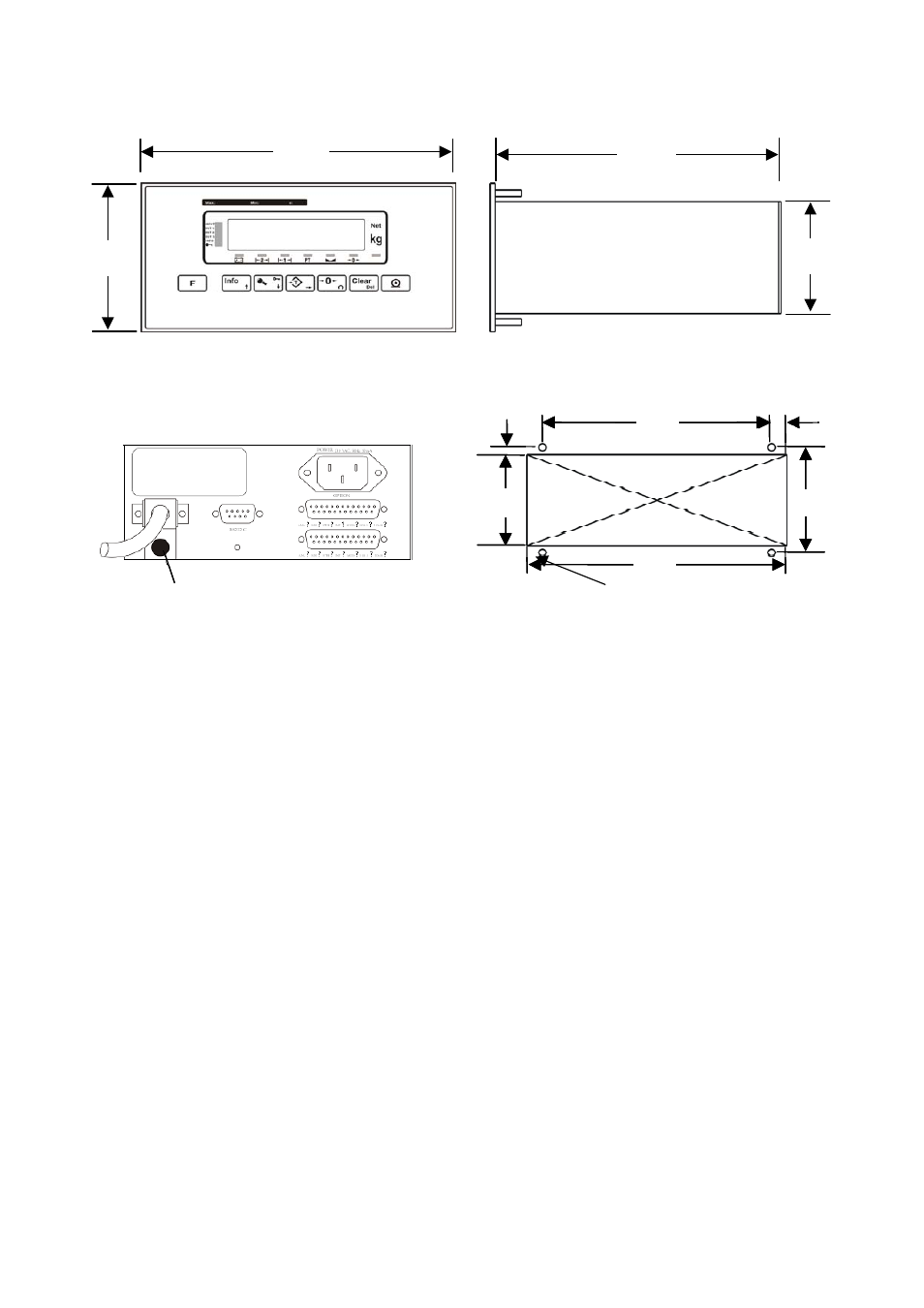

3.4.3 Panel Type Housing
Panel type front view
Panel type side view
9
5,5
69
144
80
164
Sticker
9
5,5
69
144
80
164
9
5,5
69
144
80
164
Sticker
Panel type rear view
The hole dimensions for mounting on a panel
175
68
174
90
5, mounting with 4x M4
