FT-12 Technical Manual, Rev. 1.35 November 2010 Page 12 of 44
5 F RONT P ANEL AND K EYPAD
5.1 Weight Display and Status LEDs

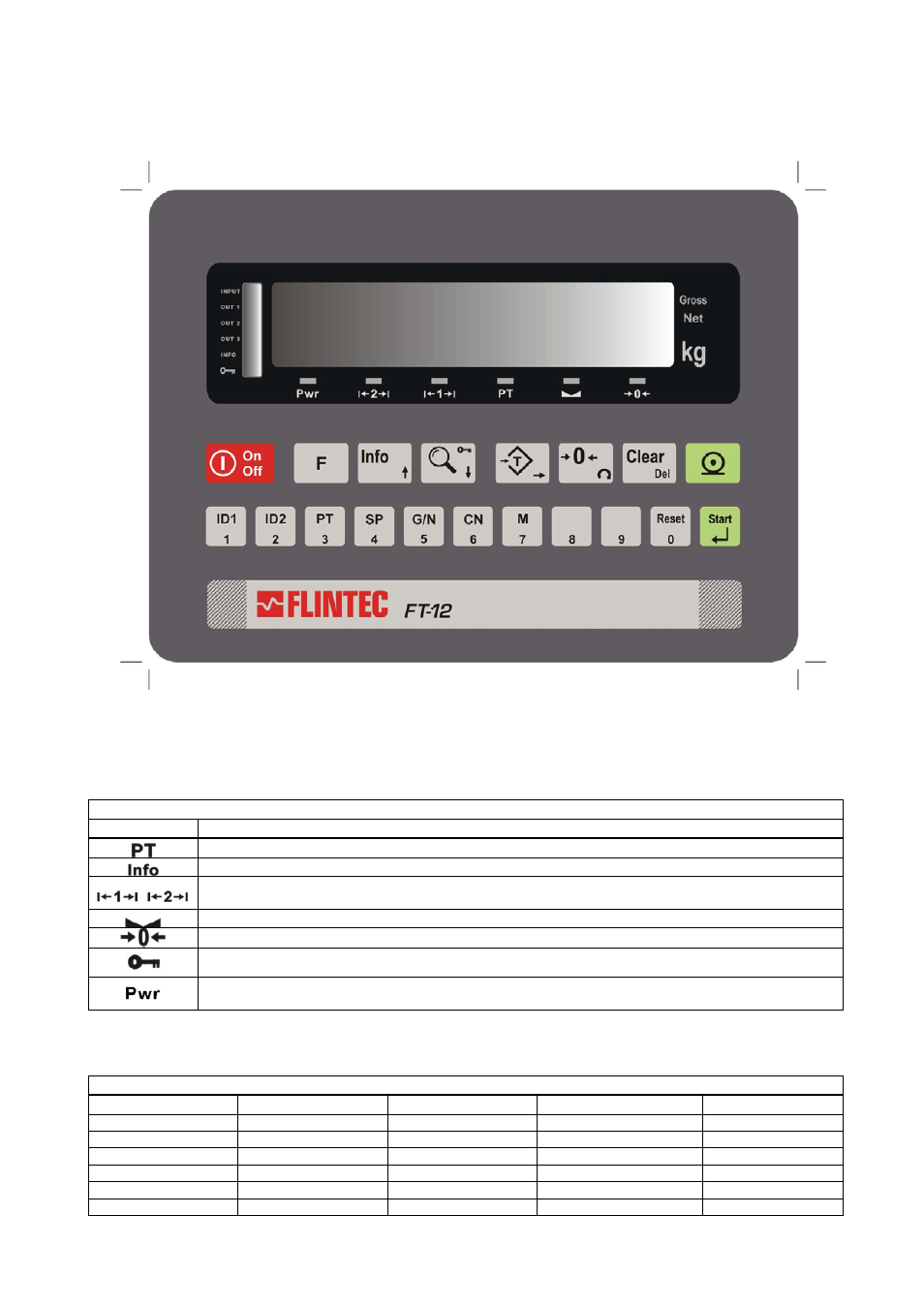

Figure 5.1 Front panel view of FT-12
The weight display of FT-12 is a 6 digit LED with 14 mm or 20 mm height.
At the right side of the display there are 3 status LEDs for indicating “Gross”, “Net” and the standard unit “kg”.
Below the weight display there are 6 status LEDs related to the weighing process:
Status LEDs related to the weighing process
LED Meaning
Preset tare: Indicator works with a preset tare
Info: The instrument displays information different from the weight
Range: With multi range scales these LED indicates the current operating range. For single range
scales only the first range LED is lit.
Stable: The weight value on the display is stable
Center of zero: The weight is in the center of zero (see param. [203] in chap.6.3)
Key lock: is active
Power: This LED will flash in case of supply voltage decrease. If the voltage decreases too much the
indicator will automatically shut off.
At the left side of the weight display there is a group of 6 status LEDs that have different meanings according to
the current application programme (for details refer to the relevant section in chapter 6.2.):
Status LEDs related to the application programme
Basic Weighing Check Weighing Peak Hold Dynamic Weighing Filling
INPUT W + + Ready INPUT Start
OUT 1 W + In Process OUT 1 Ready
OUT 2 OK EOP OUT 2 Coarse
OUT 3 W - Error OUT 3 Fine
INFO W - - INFO INFO EOB
Key Lock Key Lock Key Lock Key Lock Key Lock
