5.
Front Panel and Keypad
5.1. Weight Display and Status LEDs

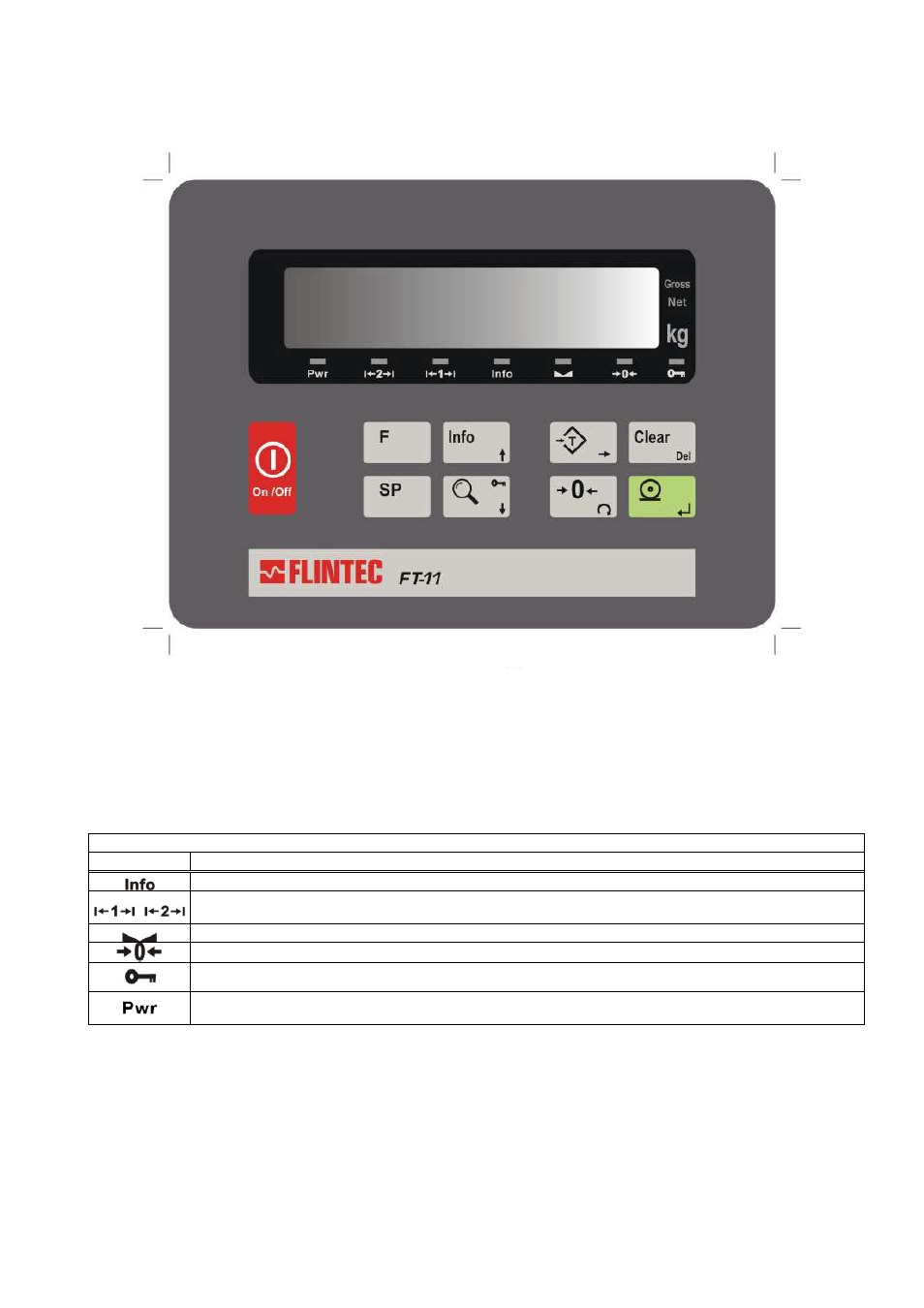

Figure 5.1
Front panel view of FT-11(D)
The weight display of FT-11(D) is a 6 digit LED with 14 mm or 20 mm height.
At the right side of the display there are three status LEDs for indicating “Gross”, “Net” and the standard unit
“kg”.
Below the weight display there are several status LEDs. The meanings of these are:
Status LEDs related to the weighing process
LED Meaning
Info:
The instrument displays information different from the weight
Range:
With multi range scales these LED indicates the current operating range. For single range scales
only the first range LED is lit.
Stable:
The weight value on the display is stable
Center of zero:
The weight is in the center of zero (see param. [203] in chap.6.4)
Key lock:
is active
Power:
This LED will flash in case of supply voltage decrease. If the voltage decreases too much the
indicator will automatically shut off.
