6.1.1 V LEDi dimensions and installation
For panel installation, use the snap-on brackets provided

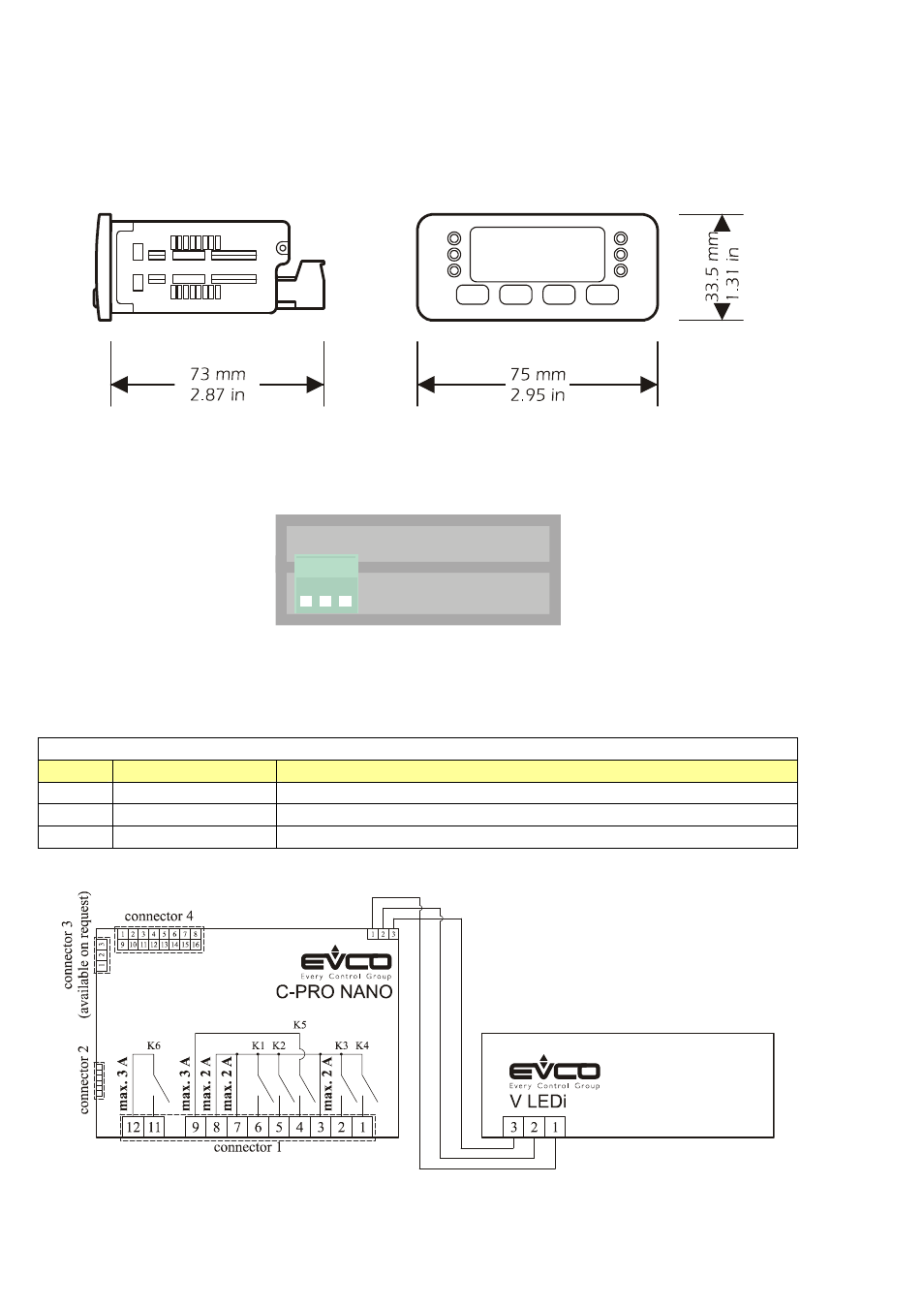

Local panel interface dimensions
Connections
D
A
T
A
G
N
D
1 2 3
1
2
V
d
c
CI1
Local panel interface connections
Connector CI1 : Interface connector
Conn. Abbrev. Description
CI1-1 12 V DC Keypad power supply
CI1-2 GND Common
CI1-3 DATA EVCO powered serial port
C-PRO NANO with V LEDi wiring diagram
