EVCO PR100AX9S001 User Manual
Pr 100a, Smart guide

Every Contr
ol S.r
.l. • PR 100A • Sheet 1/3
1
PREPARATIONS
1.1 How to install the instrument

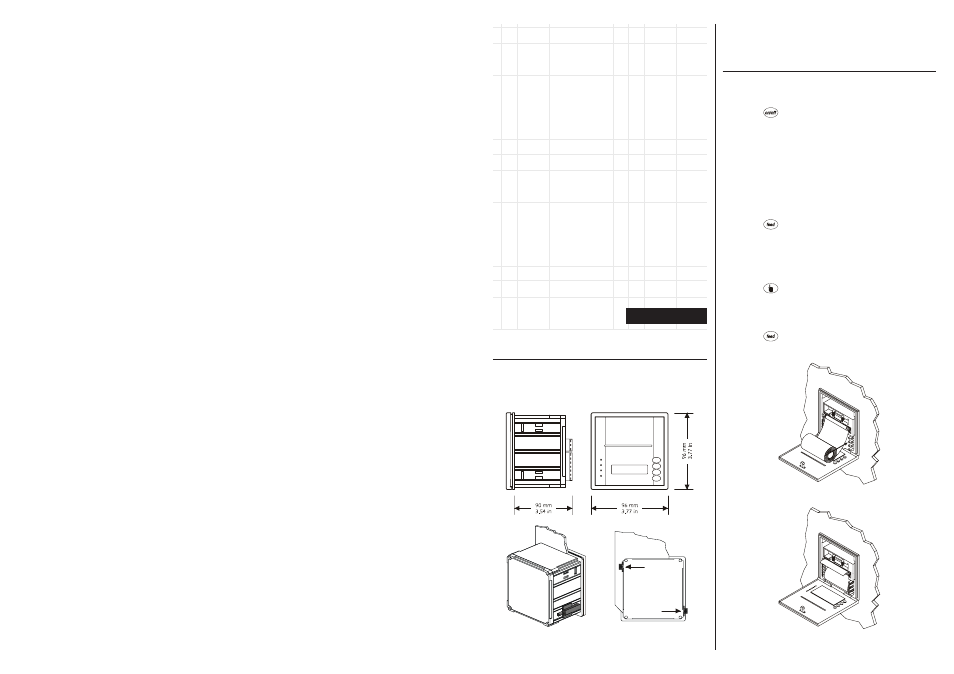

Panel mounting, panel cut out 92 x 92 mm (3.62 x 3.62 in), with
screw brackets (they are supplied by the builder).
smart guide
PR
100A
Two channels data recorder (one can ex-
pand them up to six)
Version 2.10 of 21
st
April 2004
File pr100a_eng_v2.10.pdf
PT
EVERY CONTROL S.r.l.
Via Mezzaterra 6, 32036 Sedico Belluno ITALY
Phone 0039-0437-852468 • Fax 0039-0437-83648
[email protected] • www.evco.it
installation with screw brackets (position the brackets as indicated); you have to moder-
ate the clamping torque, in order not to damage the box and screw brackets.
2
OPERATION
2.1 How to turn the instrument ON/OFF
If you have to turn the instrument ON/OFF:
• press
During the normal operation the instrument prints and/or stores
the values the probes are reading and the events.
During the OFF mode the instrument stores the values the probes
are reading and the events.
2.2 How to feed the paper by hand
If you have to feed the paper by hand:
• press
2.3 How to change the roll of paper
If you have to change the roll of paper:
• turn the instrument OFF
• press
for opening the panel at
the front of the instrument
• slip the roll of paper into the lower side of the roller
• press
as long as the roller drags
the roll of paper
• put the roll of paper into its box
• close the panel at the front of the instrument.
ENGLISH
