CONNECT THE SERVOS
I,.) 1. Use "Z-Bend" pliers or read the following
procedure to make a "Z-bend" in the end of one of
the 1/16" x 36" pushrod wires. B. Grip the first bend in your piiers and make another
90 degree bend in the wire 1 /8" behind the first.

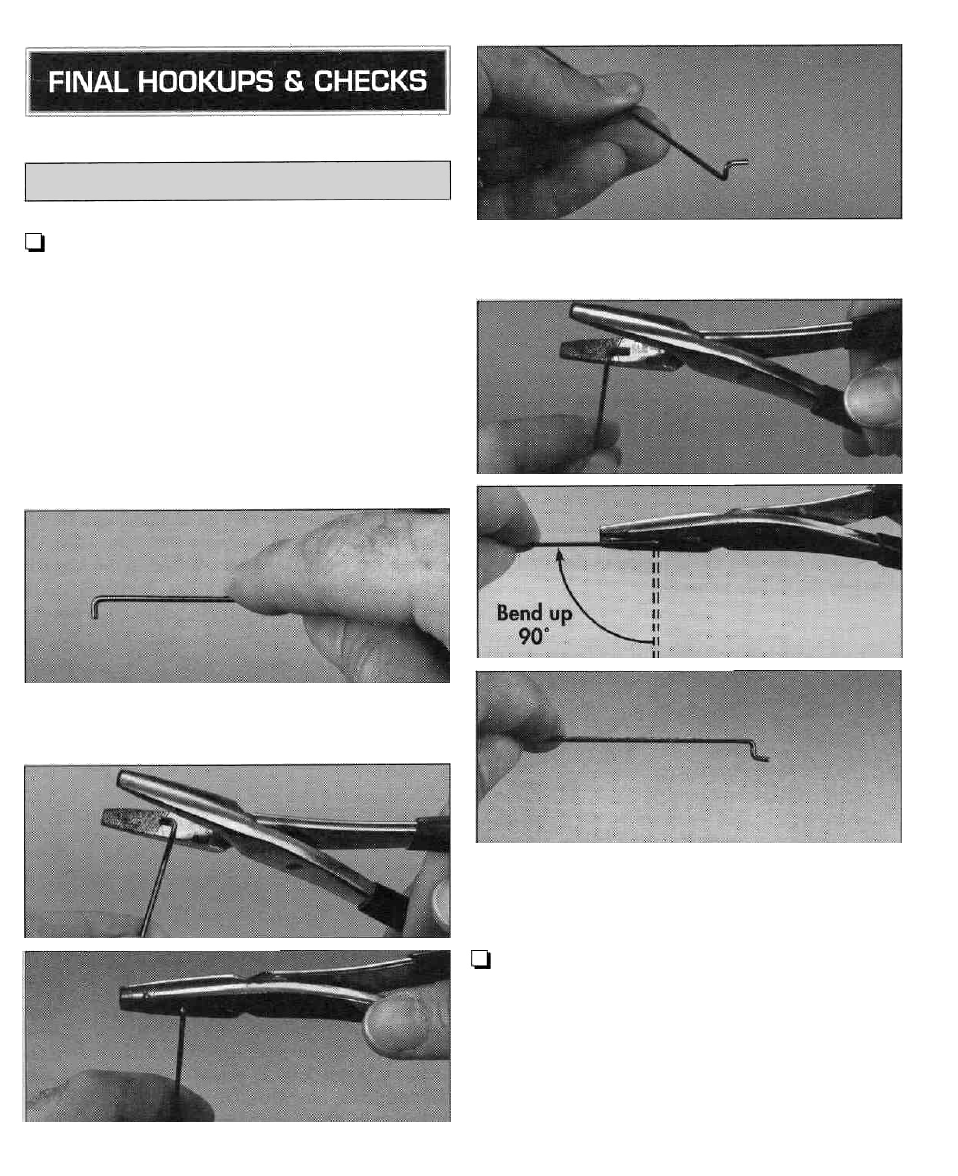

How To Make A Z-Bend In A Pushrod Wire With
Regular Pliers
A. Make a sharp "L-Bend" 1/8" from the end of
the wire.
C. Hold the "bends" in the pliers, then make a third
bend aligning the first two bends to make the
Z-bend.
Q 2. Use a new #11 blade to cut the covering from the
pushrod guide tube exits in the rear of the fuselage,
then temporarily mount a Screw-Lock Pushrod
Connector to the rudder servo wheel. Slide the pushrod
wire with the Z-bend into the pushrod guide tube
through the back of the fuselage and into the pushrod
connector on the elevator servo. Connect a small
control horn to the pushrod wire.
