3.3.3 Non-burst, 64-bit Memory Read

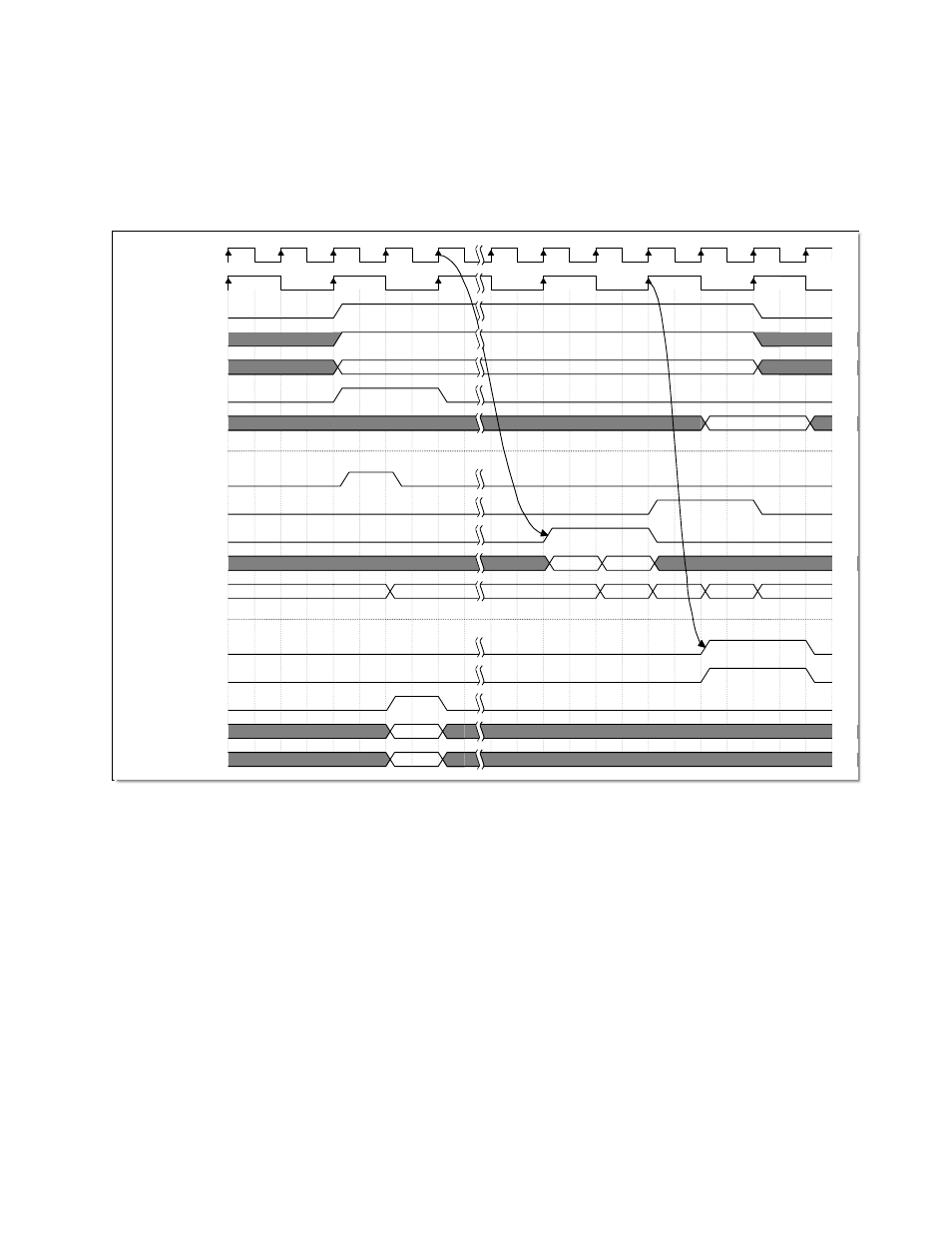

The timing diagram below is for a non-burst, 64-bit memory read where Rd_Data_Valid aligns
with the rising edge of Bus2IP_Clk. The non-aligned version of the read is similar except the
Rd_Align state is skipped.
1 2 3 4 5 6 7 8 9 10 11 12
Read
Address
Word1 Word2
64-bit Data
Address
Idle Wait_RdValid Rd_Align Idle Wait_RdValid Rd_Ack1 Rd_Ack2
Signals below are from write_ctrl
TimeGen
DDR2_Clk
Bus2IP_Clk
Bus2IP_CS
Bus2IP_RNW
Bus2IP_Addr
Bus2IP_RdReq
IP2Bus_Data
Rd_Send_Cmd
Rd_Send_Ack
Rd_Data_Valid
Rd_Data_FIFO_Out
State
IP2Bus_AddrAck
IP2Bus_RdAck
App_AF_WREn
App_AF_Cmd
App_AF_Addr
