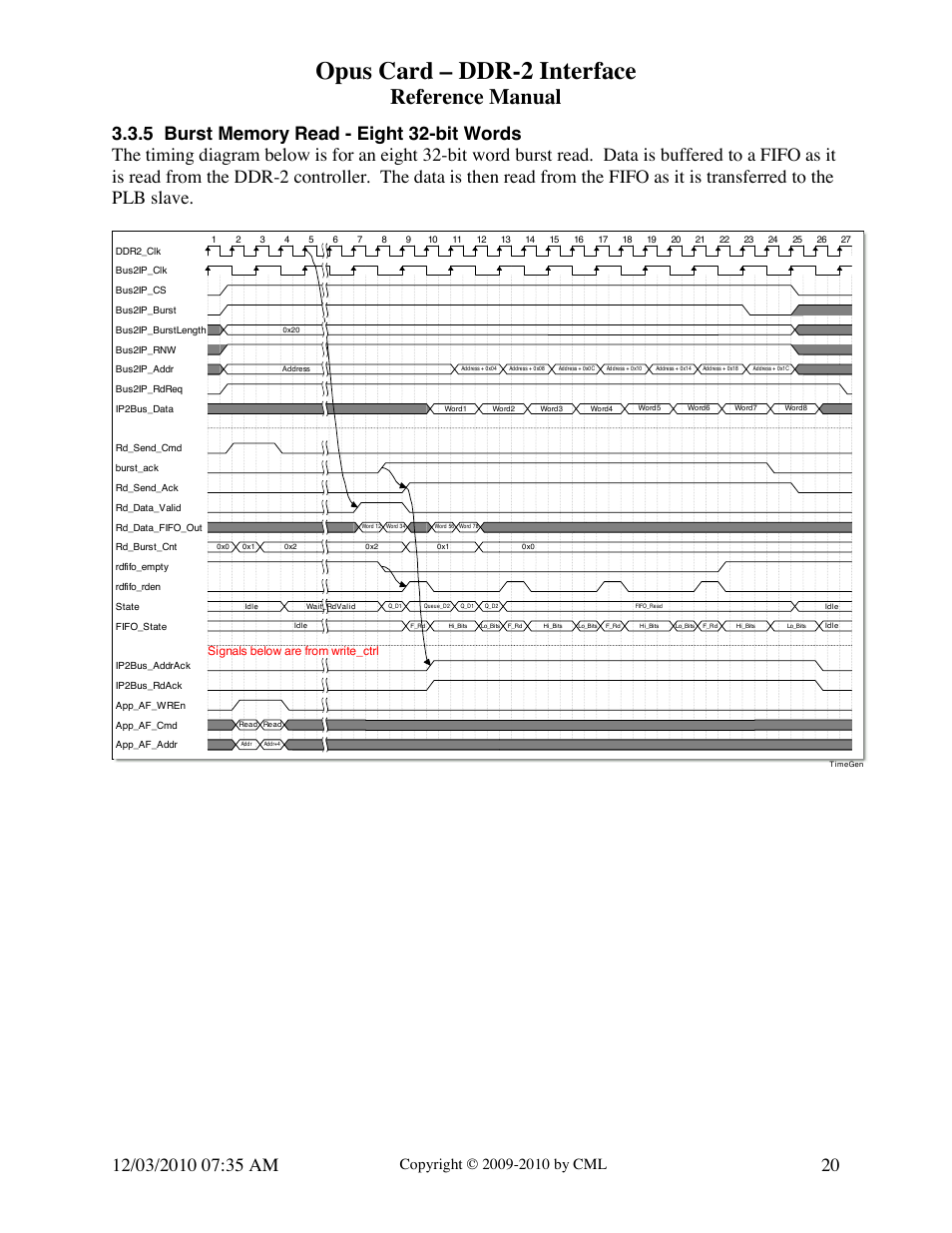

Opus card – ddr-2 interface, Reference manual, Signals below are from write_ctrl – Digilent DDR-2 Opus Card User Manual
Page 20
