Page 4
chipKIT™ Max32™ Board Reference Manual
Copyright Digilent, Inc. All rights reserved.
Other product and company names mentioned may be trademarks of their respective owners.
Page 4 of 20
17. Reset Button
This button can be used to reset the microcontroller, restarting operation from the boot loader.
2
chipKIT Max32 Jumper Settings
The chipKIT development platforms use a Microchip PIC32 microcontroller. These are 32-bit products that bring
unprecedented features to the Arduino community. In order to maintain compatibility with existing hardware and
software, additional jumpers and row headers are provided. This document describes the functionality of the
jumpers listed in Fig. 2 below.

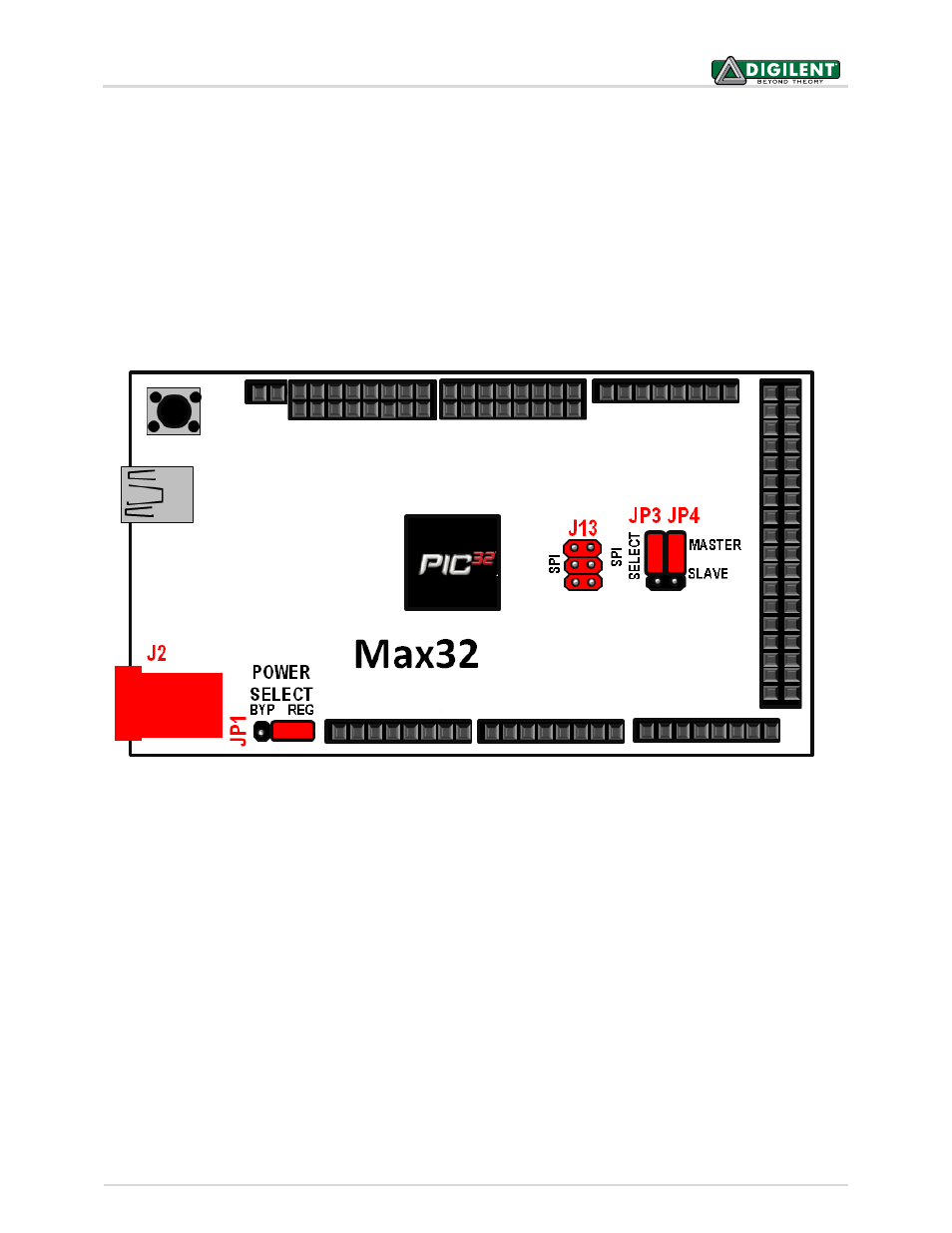

Figure 2. chipKIT Max32 Jumpers.
