DeviceMaster Primo for Pair and Raw Connect Methods
21
Ethernet to Serial (Optional)
Port: The default Port number is 4001. If you change a range of Port numbers,
they should be the same number.
Ethernet to Serial
(Optional)
Src (Source) IP: A list of source IP addresses which DeviceMaster accepts
data from and transmits it to the serial port. If you want to accept all hosts,
keep the fields blank.
Local listen Port: The default Port number is 4001.
Data packing
(Optional)
Delimiter 1 (Hex): Keep this field blank if you do not want to use a trail
delimiter, or enter a character in hex.
Delimiter 2 (Hex): Keep this field blank if you do not want to use a second
trail limiter, or enter a character in hex.
Force transmit: The system sends the serial data to the Ethernet. Keep the
field blank if you do not need to use force transmit.
DeviceMaster adds the Delimiter (Hex) and Force transmit (ms) options for
customized data format. Once the user starts up with one or two of these
settings, DeviceMaster will automatically send the data from serial port to
Ethernet after receiving the delimiter character or receiving serial data time
out. This option could meet your specified application requirements like a card
reader, copy machine, scanner, and so on.

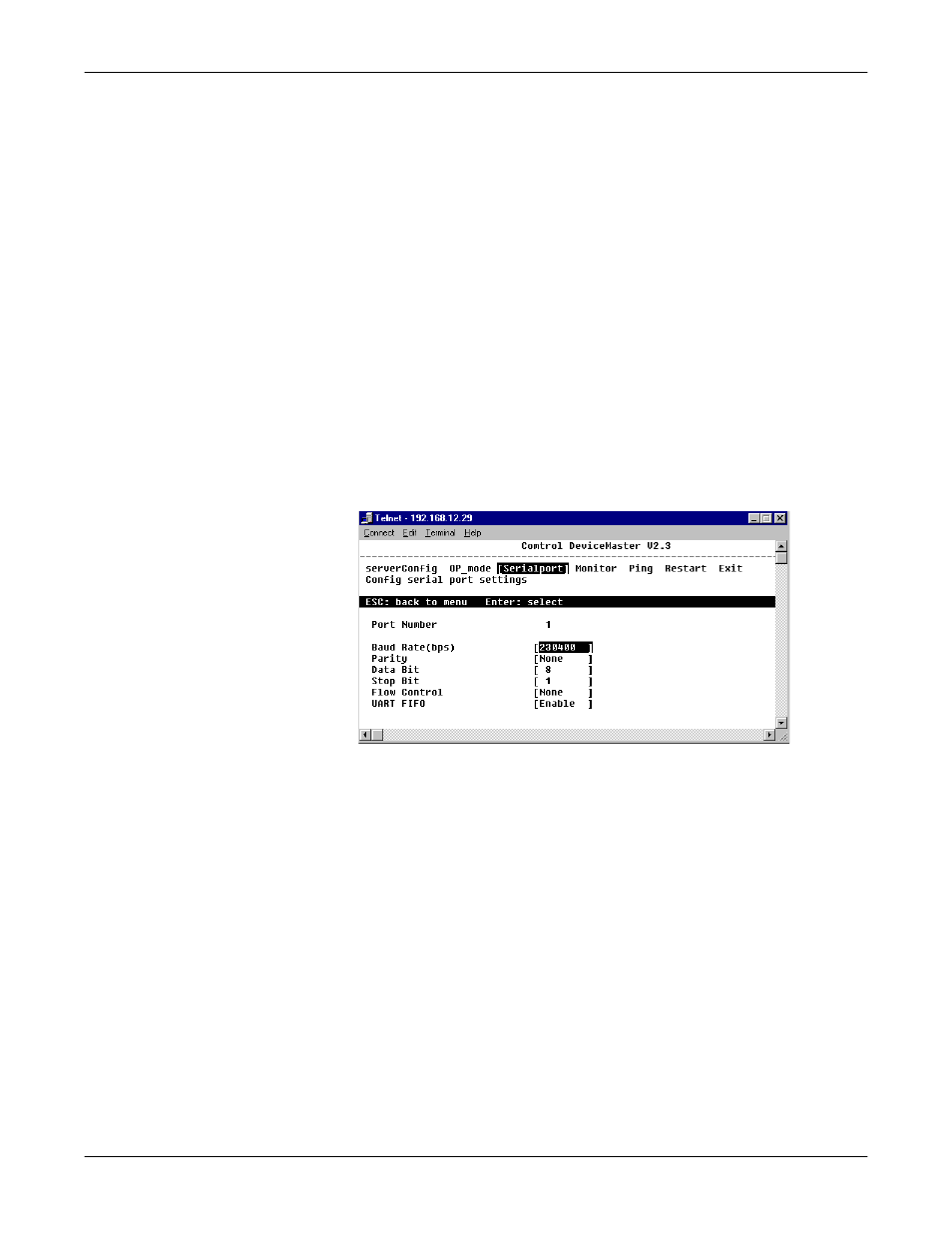

10. Select the Serialport menu item, and press the Enter key.
Review the parameters. Make sure that all your devices have the same port
settings.
11. Press the Esc key to return to the main menu.
12. Select the Monitor menu item, and press the Enter key.
