Cover Removal and Reinforcement Bar
If the inverter ambient temperature specification (—10®C to +40®C) cannot be
maintained, remove the top, bottom, and front cover as shown. Then the
allowable temperature can be between —10®C and +50®C. When removing the
top and bottom covers, fasten reinforcement bar at the top and bottom as shown.
Section 15

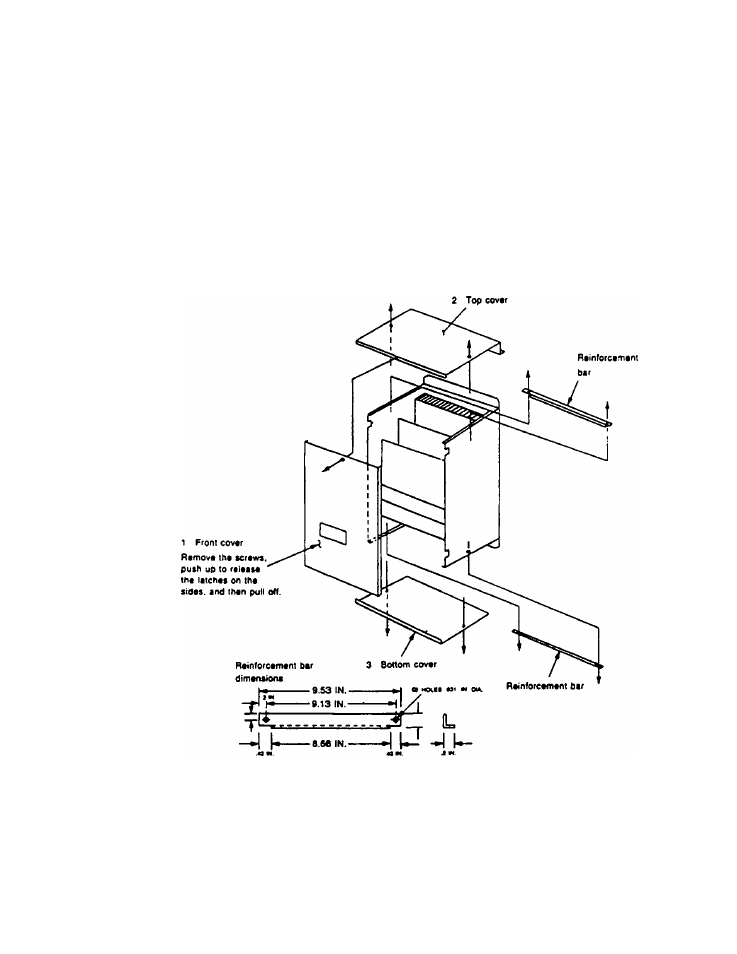

< Removing sequence> (1) Front cover
(3) Bottom cover
(2) Top cover
Thtckn*M: .13 IN.
66
