Section 4
INSTALLATION
(INVERTER MUST BE INSTALLED IN VERTICAL POSITION)
1. The ambient temperature must be between —10**C and AO^C (18 to 104 degrees
Farenheit). If the inverter is installed inside a self-contained panel or a large con­
trol panel, there must be proper ventilation to keep the temperature between
-10*0 and40*C.
2. If the ambient temperature exceeds 40*0, it is necessary to remove the upper
and tower covers and the front cover. (When the inverter is installed inside an in­
dependent panel or a control panel, remove the covers for adequate ventilation.)
This will improve ventilation and allow the ambient temperature rise up to 50*0,
(122*F), However, this reduces the strength of the side panel and therefore, the
operation panel should be left in place. (In lieu of the standard operation panel a
reinforcement bar can be used.)
Refer to page 70 for cover removal and reinforcement bar installation.
3. it is necessary for proper inverter operation to avoid high temperatures, humidity,
dust, or metal particles.
4. Corrosive gas and/or liquids must be avoided.
5. Install in an area where there is no vibration or noise from other electrical equip­
ment and where maintenance can be performed easily.
/ / / / / /

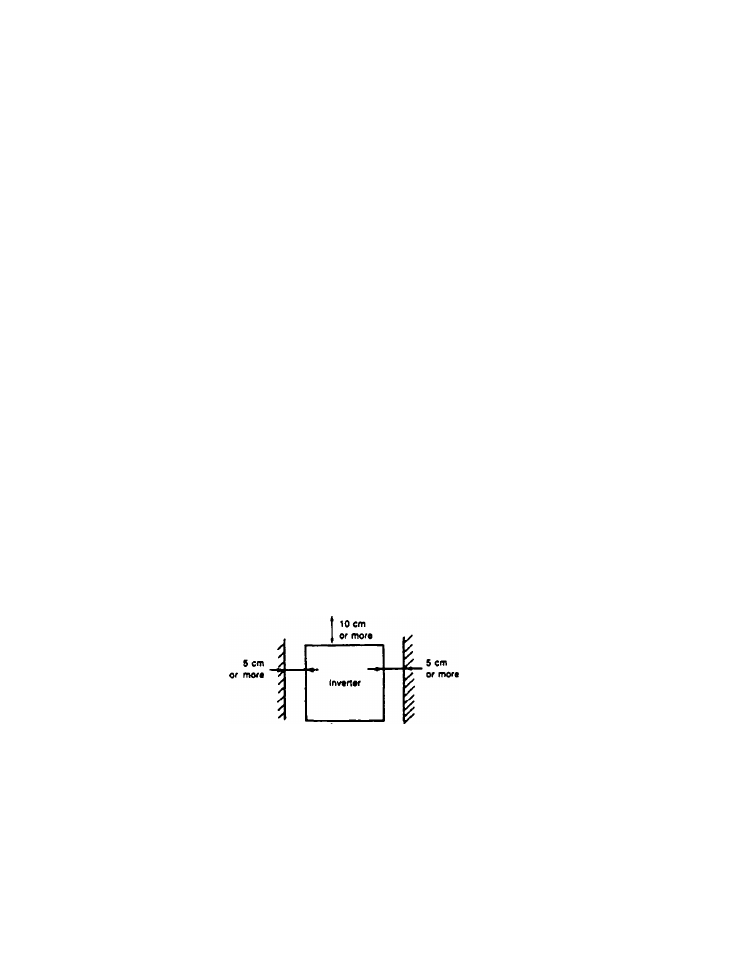

10 cm
or moro
rT^rrTTTTrr
InsUtffing
FIGURE 4-1
