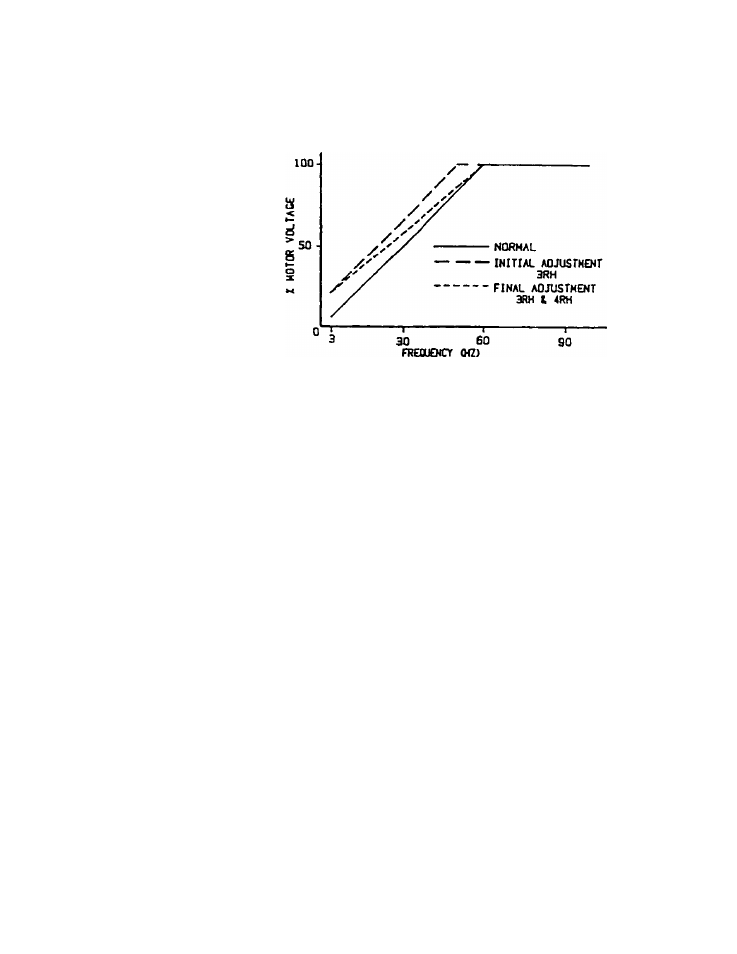

FIGURE 3-1
6.
Upper and Lower Limits Pot. lORH adjusts lower limit and will override minimum
speed set in step 5. Pot. 9RH adjusts upper limit and will override maximum speeds
set in 2 and 5.
7.
Voitag« Boost Pot. 3RH increases low speed breakaway torque. Note: High voltages
at low frequency may burn up the motor.
8.
Overvoltage Level factory set for safe operation. It should never be adjusted.
9.
Check Motor Current at several different operating speeds after completion of
adjustments. Continuous currents above the motor nameplate (rated) current may
damage the motor.
