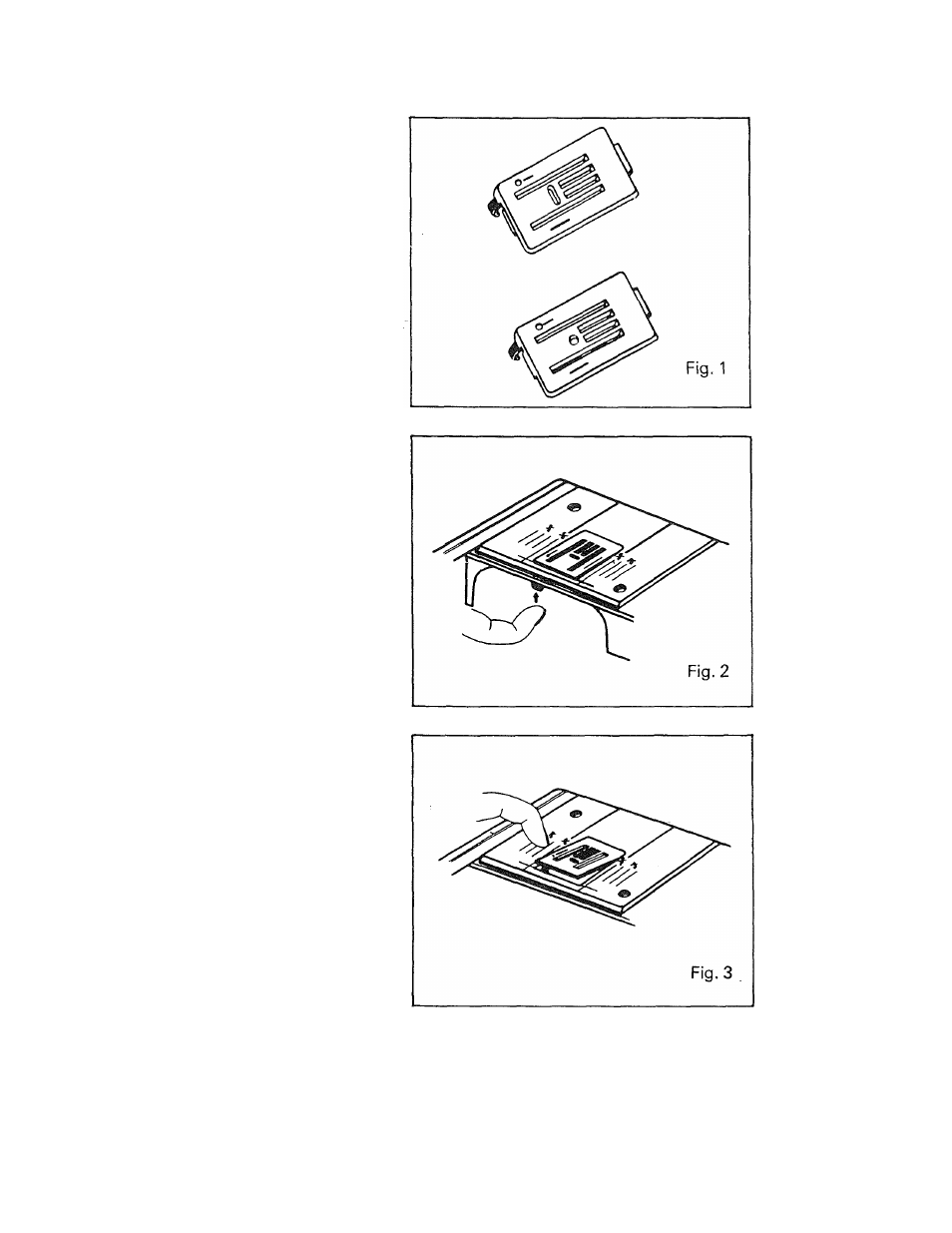

NEEDLE PLATE INSERTS
You are provided with two needle plate
inserts. The one with the wide oval hole
is to be used for all zigzag stitching.
The one with the round hole is for
regular
straight
stitching
or
straight
stretch stitch sewing.
CHANGING NEEDLE PLATE
INSERTS
1.
Raise needle to its highest position
and raise presser foot.
2. Open bed cover plate.
3.
Remove accessory box from the
machine, and push a spring under
the plate as shown to release the
needle plate insert.
4.
Remove
needle
plate
insert
by
placing thumb under edge of plate.
5.
Replace
the needle
plate insert
positioning as shown in Fig 2.
6.
Push needle plate insert down to
lock
into
place.
Reposition
the
accessory box and bed cover plate.
22
