Installation Instructions

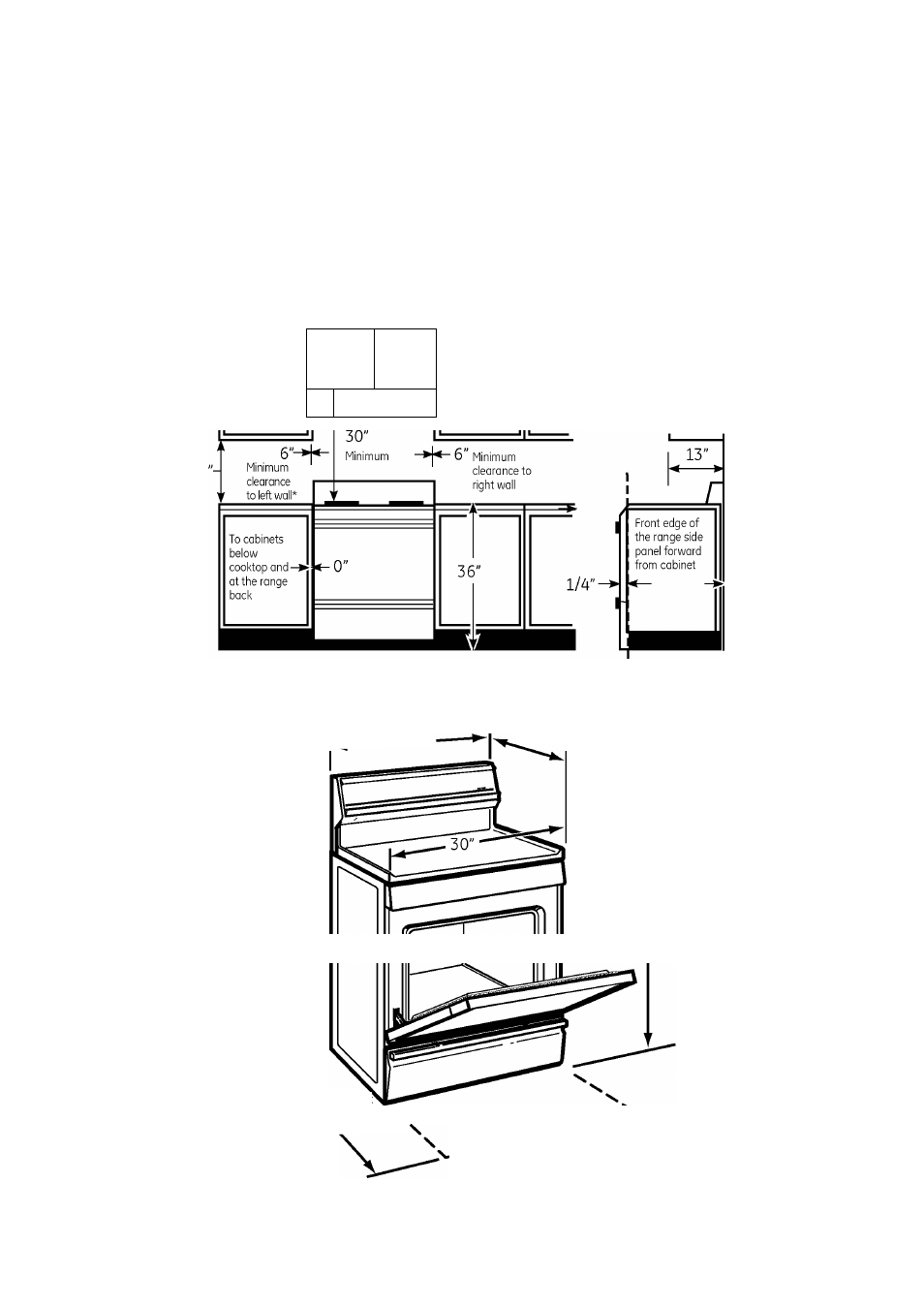

DIMENSIONS AND CLEARANCES

Provide adequate clearances between the range and adjacent combustible surfaces. These dimensions must be
met for safe use of your range. The location of the electrical outlet and pipe opening (see Gas Pipe and Electric

Outlet Locations) may be adjusted to meet specific requirements.

The range may be placed with 0" clearance (flush) at the back wall. (Some models will not fit flush.)

For island installation, Model C2S985, maintain 2-1/2" minimum from cutout to back edge of countertop and 3"
minimum from cutout to side edges of countertop.

*Models PGB900,

PGB910, PGB915,
PGB930 and PGB935

require only 3"
minimum clearance

to left wall.

„„

Minimum to

cabinets on
either side
of the range

^ 30"

Maximum

depth for

cabinets above

countertops

<-0"

To cabinets below

cooktop and at

the range back.

(Some models
will not have 0”
clearance)

Height

48"

Depth with door closed (includes door handle)

29^/s"

Depth varies depending on model.

See specifications sheet for your model.

351/4" ± 1/4"

Depth with door open

45 ^/s"
