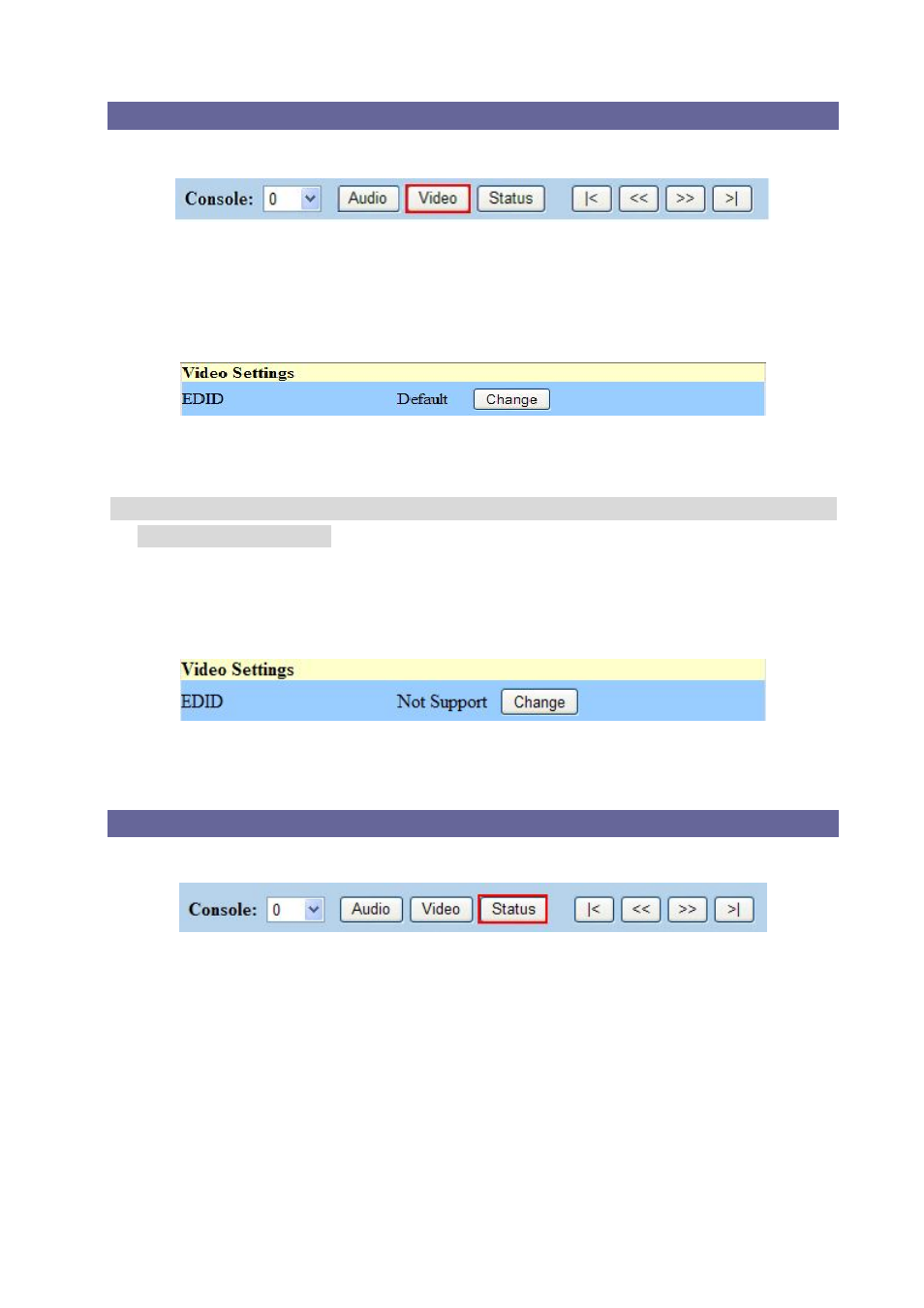

7.3.1 Video Configuration
For video configuration, click Video button directly to pop-up “Video Settings” window.
Figure 7-8 Video Operation
In “Video Settings” window, you can click Change button to switch EDID Output1 and
Default port.
Figure 7-9 Video Configurations – Default port used
The LCD will appear FIX when you switch to Default, alternately, it will appear OUT1
with Output1 selection.
If the Switcher does not support video function, it will appear “Not Support”. The
Change button will useless.
Figure 7-10 Video Configuration – Not Support
7.3.2 Device Status Information
Click Status button pop-up “Device Status Information” window as below.
Figure 7-11 Device Status
The “Device Status Information” window will show you Device Name, Device ID,
Firmware Version, Total Memory, Total Output and Total Input information. Click
“Refresh” button to renew related information in real time.
