33
Upgrade: Use for firmware upgrade. For more information, refer to Appendix B
Firmware Upgrade .
Options: Allow you to configure the IP address.
Save: Click this button to save the connected combinations output and input ports. It
also includes the present input/output switching relations and all settings.
All Output: A Hot Key for you to set the same value to all output channels. Select the All
Output check box, then key in example “4” value in the channel 1 output. Click
anywhere on the window, the all channels output will become “4” value.

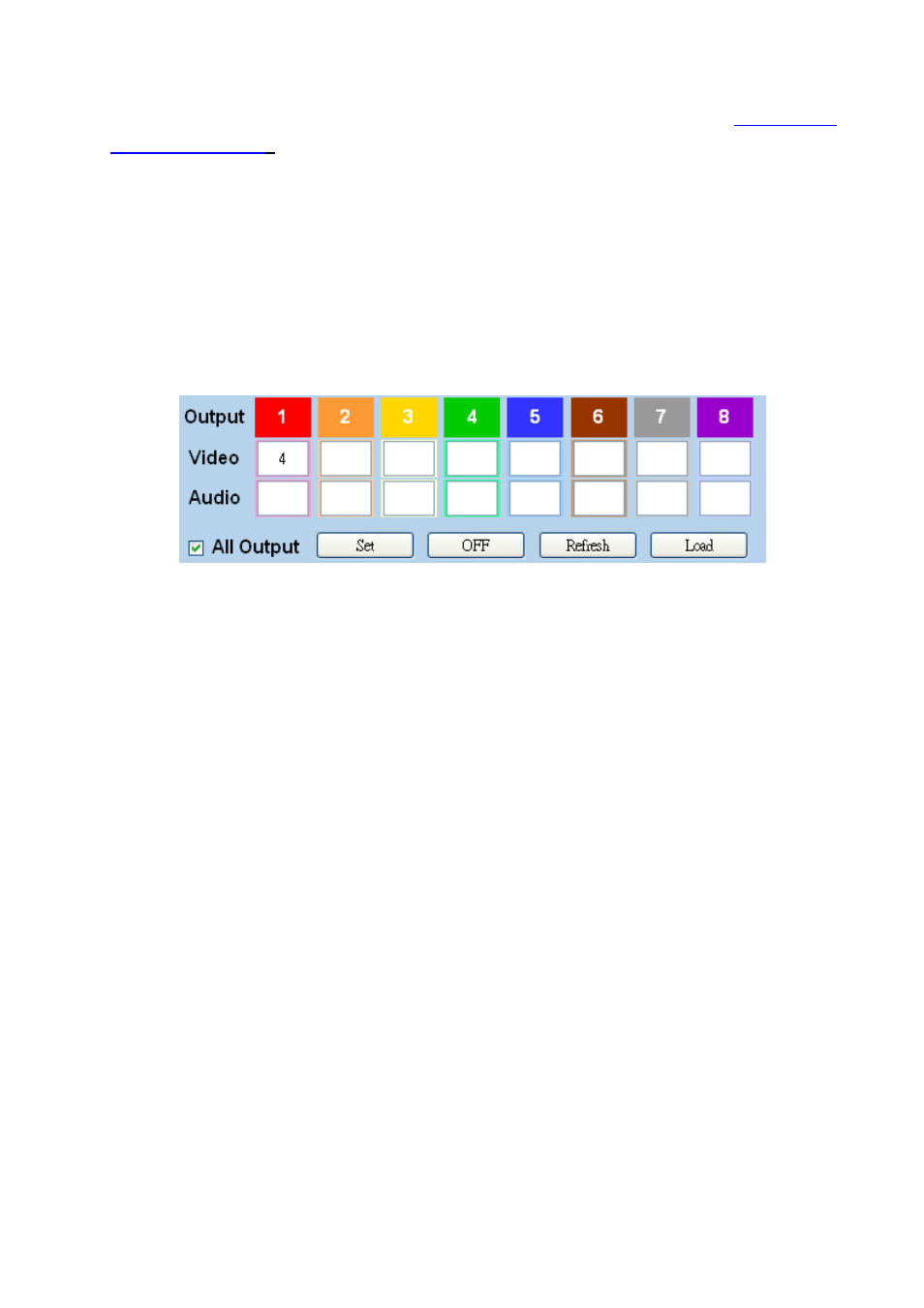

Figure 7-7 All Output Check Box Function
AV Link: Link between audio and video.
Key In: A Hot key that is for key in the value 0~99 quickly. After setting the value, click
“Enable” to take effect.
Previous and Next: If the connections of your Switching devices are over to 8 devices,
you can click “Previous” or “Next” to view the console list by paging.
