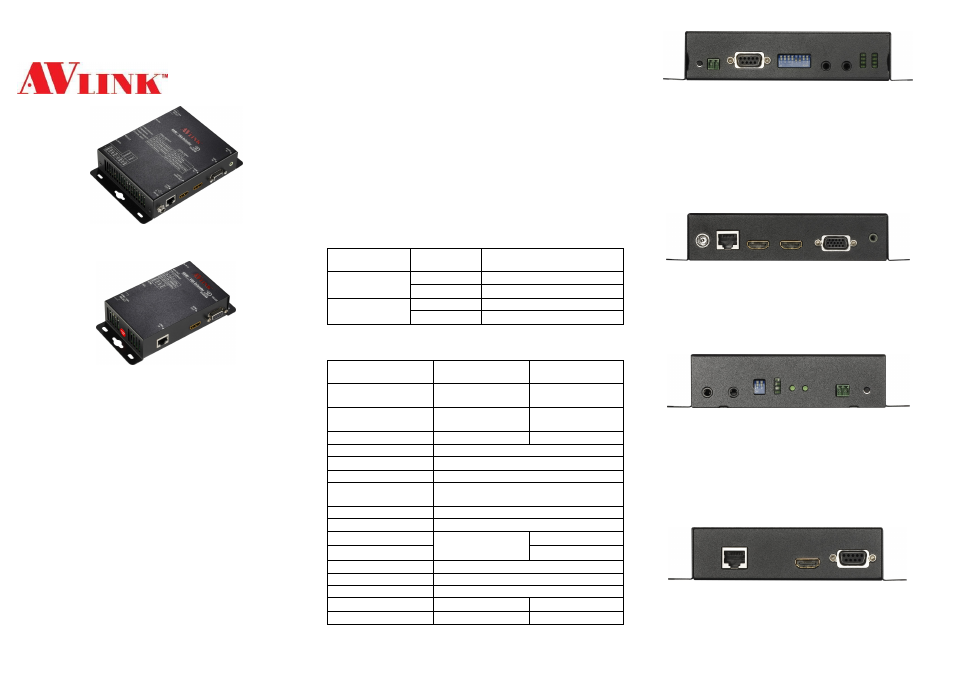

Avlink VH-EXWB - Manual

HDMI
EXTENDER
VH-ELWB
(Local)
VH-ERWB
(Remote)
U SER M ANUAL
V1.0
VH-EXWB
Package Contents-
 1x VH-ELWB Local Unit
 1x VH-ERWB Remote Unit
 1 user manual
 1x Power adapter DC 48V with lock and Power Cord
 1x IR Blaster Cable
 1x IR Receiver Cable
 4x screws
 8x foot pads
 2x Female 1x2 Pole Captive Screw Socket
Any thing missed, please contact with your vendor.
Features
 Through the HDMI Extender, you can use one DVD or
PC to display identical image and extension of HDMI
signal up to 100 meter on HDTV
 HDCP Compliant
 Supports 3D pass-through
 Support RS-232(Bi-direction transfer)
 Supports all frequency band IR control
 One CAT.5 cable extension
 Supports HDTV up to 4k2k
 Supports VGA up to 1920 X1200
 HD-baseT technology
 Use CAT.5 cable to install easily
 Cable Distance
 Supports Power over Cable
Undervoltage, Overvoltage and Thermal Protection
Short-Circuit Protection with Auto-Restart
Resolution Cable Type VH-EXWB
1080P(12bit)
Cat5e/Cat6 100M
Cat6a/Cat7 100M
4Kx2K
Cat5e/Cat6 70M
Cat6a/Cat7 100M
Specifications
Function Local Remote
HDMI In Connector
HDMI A-Type
Female x 1
None
HDMI Out Connector
HDMI A-Type
Femalex1(DA)
HDMI A-Type
Female x 1
VGA In Connector HD-15 Female x 1
RJ-45 Connector 1
IR OUT 3.5ψ Stereo Jack x 1
IR2 IN 3.5ψ Stereo Jack x 1
Source select
(TAC Switch)
TAC SW X1
Source select (TB) 1X2 Pole Captive Screw
Max. Resolution 4k2k
FW Upgrade Switch
8 PIN DIP Switch
2 PIN DIP Switch
Mode select Switch None
Cable Distance 100M
Power Adapter (Min.) DC 48V with lock
Housing Metal
Weight 550g 324g
Dimensions (LxWxH) 171x120x35 mm 150x80x35 mm
-1-
LOCAL FRONT VIEW
1. TACK SW (HDMI/VGA SELECT)
2. 1X2 Pole Captive Screw (HDMI/VGA SELECT)
3. RS-232
4. DIP SW
5. IR OUT
6. IR IN
7. SOURCE LED (LOCAL HDMI / VGA, REMOTE HDMI
/ VGA)
8. ACTIVE LED (MODE, LINK, HDCP, POWER)
LOCAL REAR VIEW
1. Power jack (48V DC IN)
2. LINK (RJ-45 Connector)
3. HDMI OUT (DA)
4. HDMI IN
5. VGA IN
6. AUDIO IN
REMOTE FRONT VIEW
1. IR IN
2. IR OUT
3. DIP SW
4. ACTIVE LED (MODE, LINK, HDCP, POWER)
5. HDMI LED
6. VGA LED
7. 1X2 Pole Captive Screw (HDMI/VGA SELECT)
8. TACK SW (HDMI/VGA SELECT)
REMOTE REAR VIEW
1. LINK (RJ-45 Connector)
2. HDMI OUT
3. RS-232
-2-
