7.3 LAN Web Configuration

Open the Browser on your PC, key in the default IP address: http://192.168.0.3 to login

the AV MATRIX Control configuration window. Once the default IP address is changed,

please use the changed IP to login.

The software controls signal connection between the corresponding input port and

output port as required. The LAN main configuration window is as below:

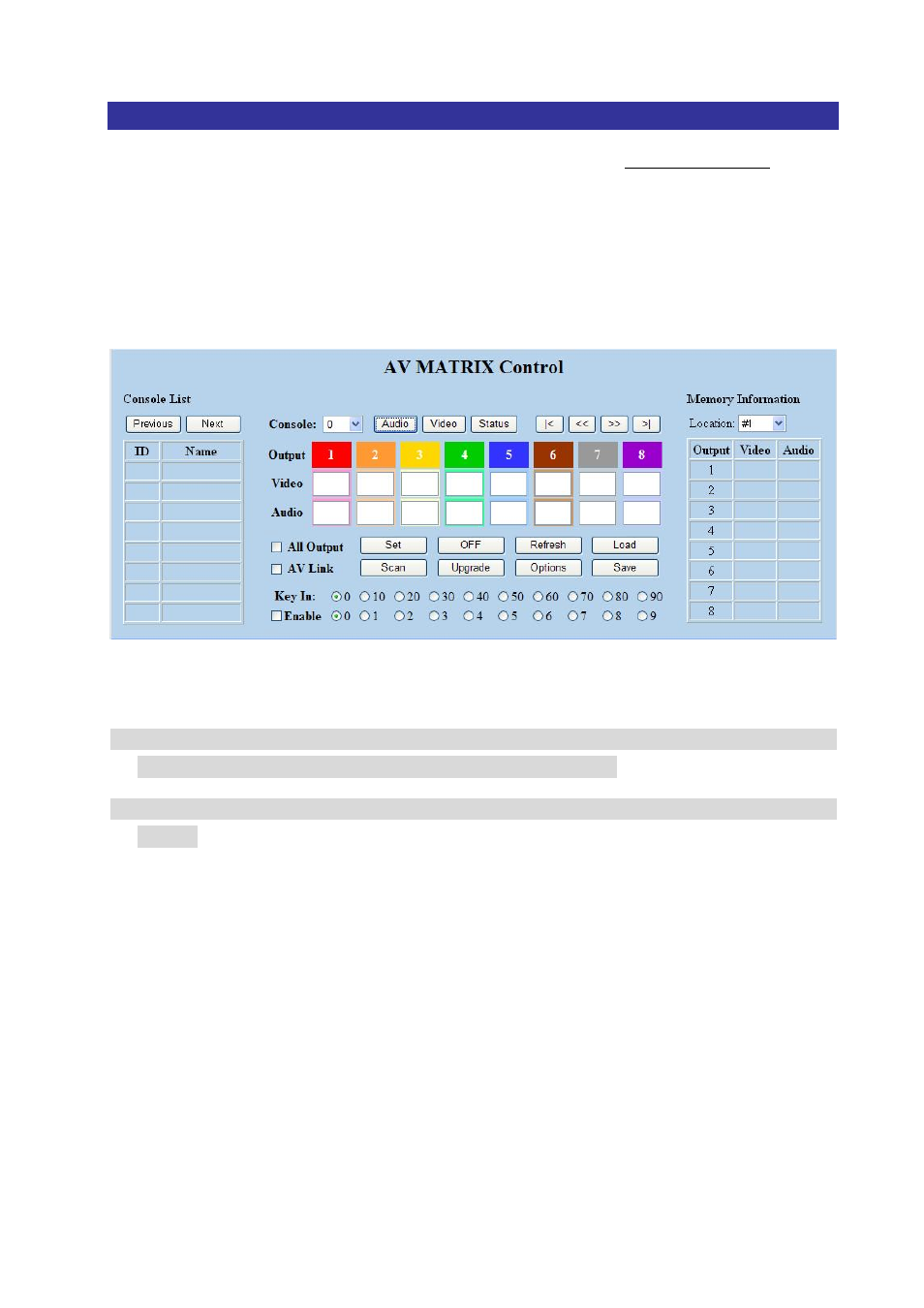

Figure 7-6 LAN Web Configuration Window

 MRM-602P Switcher is integrated HDMI switching equipment. You can only key in the

Output Channel No. into the Video field for configuration.

 MRM-602P Switcher’s Device ID is based on the DIP of switcher located on the rear

panel.

Set: Click this button to set the connected combinations both output and input ports.

OFF: Disable the entire output channels.

Refresh: To refresh the values of the configuration window. Any changed settings

directly on the MRM-602P Switcher will not respond to the AV Matrix operating interface,

you have to click the “Refresh” button to refresh the configuration window so that

showing the changed values.

Load: Click this button to retrieve the previously saved settings.

Scan: To search the device controlled by the LAN Web Configuration. When the

Console List content is empty, you can click the “Scan” to research and update the

Console List. If the connections of your Switching device are over to 8 devices, you can

click “Previous” or “Next” to view console list by paging.
