16
CHAPTER 6 CONNECTIONS

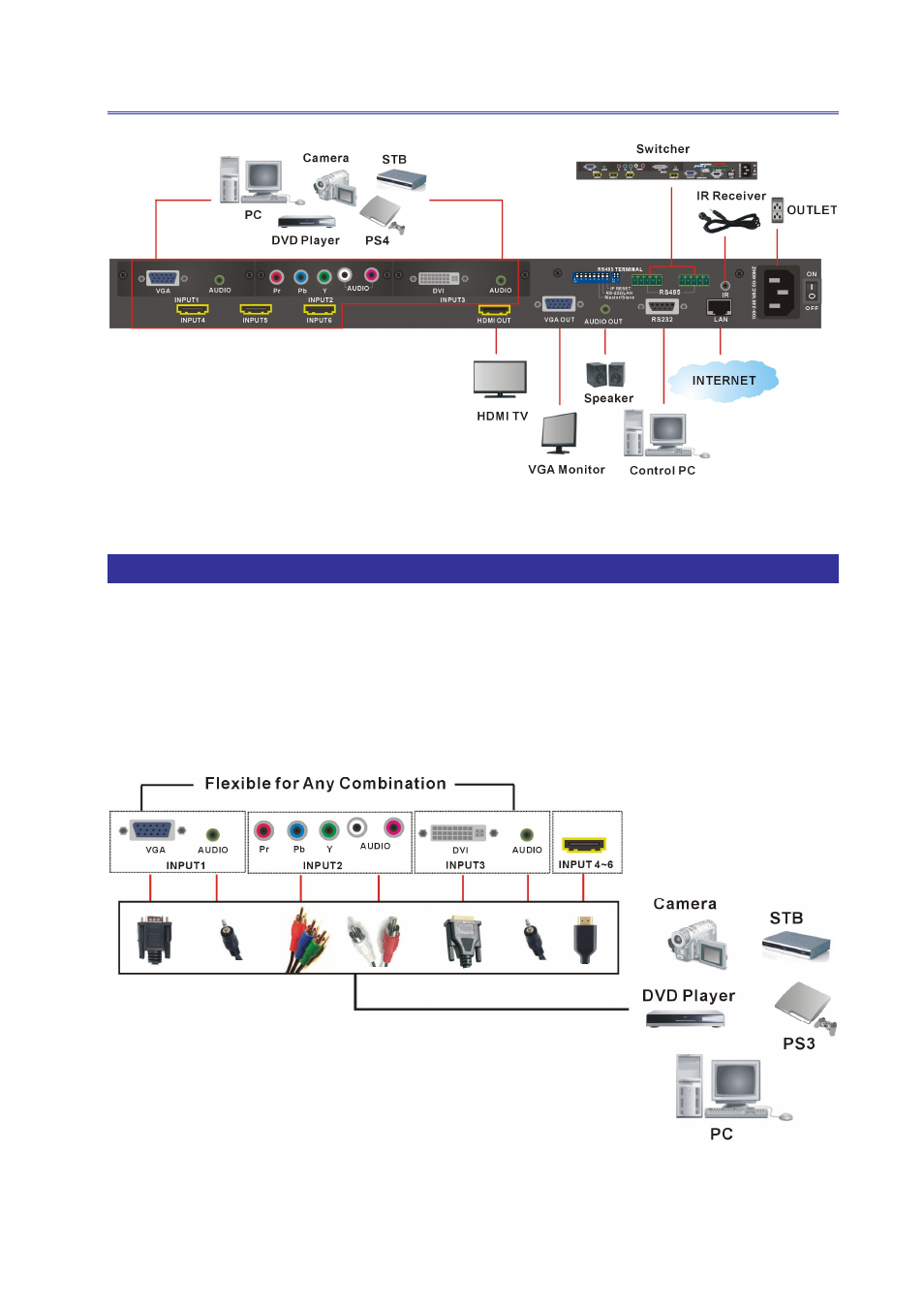

Figure 6-1 MRM-602P Connections
6.1 Input/Output Connections
Use the VGA/YPbPr/DVI/HDMI connecting cable to connect the Input modular card
(INPUT1 ~ INPUT 6) on the rear panel to the output connector of the sources (CD/DVD
player/Camera/ PS3/STB/PC). And use the HDMI or VGA connecting cable to connect
the output connector (HDMI OUT/VGA OUT) on the rear panel to the input connector of
the HDMI TV, displays, multiplexers and so on.
Figure 6-2 Input Connections
