Avlink VRM-714FAE User Manual
Video/audio selector, Features, Specifications

VIDEO/AUDIO
Selector
VRM-714FAE
U
SER
M
ANUAL
V1.1
VRM-714FAE
Package Contents-
1
AVLINK
VRM-714FAE
1 user manual
1 power adapter DC 12V/600mA
1 IR remote controller
2 rack rails, 8 screws
If anything is missing, please contact your vendor.
Features
Extends the video/audio signal up to 300 meter.
Supports VGA, SVGA, UXGA, QXGA resolutions.
Supports audio stereo unbalanced.
Audio sample rate 96 KHz.
Can use an external microphone to output sounds to
the audio amplifier.
Remote controller for operation.
Auto skips over the power-off and suspended PC and
the unplugged VGA cable.
1U rack design.
Specifications
Function VRM-714FAE
VGA Input Connector
4x HD-15 Female
Audio Input Connector
4x 3.5φ Mini-Stereo Jack
MIC Input Connector
4x 3.5φ Mini-Stereo Jack
Video/Audio Output
Connector
1x RJ-45 Female
On Line
4
LEDs
Selected 4
Select Switch
4
Cable Distance
300 m (Max.)
Max. Resolution
1280x1024 60Hz
Power Adapter (Min.)
DC 12V 600mA
Housing Metal
Weight 1055g
Dimensions (LxWxH)
269x106x42mm
Technical Specifications
Input/Output Signal
Pin #
Signal
Pin #
Signal
1 Red
video
9 NC
2 Green
video
10 Ground
3 Blue
video
11 ID0
4 ID2
12 ID1
5 Ground
13 Horizontal
sync
6
Analog ground
14 Vertical sync
7 Analog
ground
15 ID3
8 Analog
ground
-1-

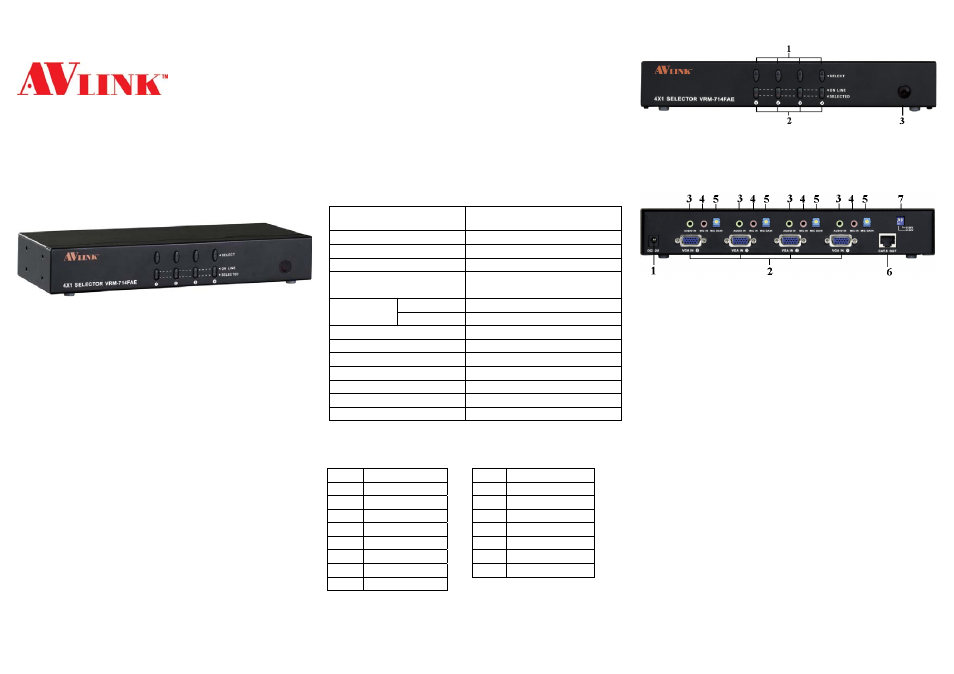

FRONT VIEW
1. Push-button Switches (Manual type)
2. Port LEDs
3. IR Receiver
REAR VIEW
1. Input Power Jack
2. Video Input
3. Audio Input
4. MIC Input
5. MIC GAIN – adjust volume of microphone
6. RJ-45
Output
7. Control H/V signal inverting switch
The default setting of SW1 is “OFF”. If SW1 is set to
“ON”, the H signal is inverting output.
The default setting of SW2 is “OFF”. If SW2 is set to
“ON”, the V signal is inverting output.
If the H/V signal is negative logic, then you need to
change the logic of the H/V signal or if you have any
other problems, please use this function.
-2-
