23
6.5.3 LAN Port
The MRM-602P Switcher supports a network RJ-45 registered jack using 8P8C modular
connector, which specifies the physical male and female connectors as well as the pin
assignments of the wires in a telephone cable. (A common LAN cable is available.)

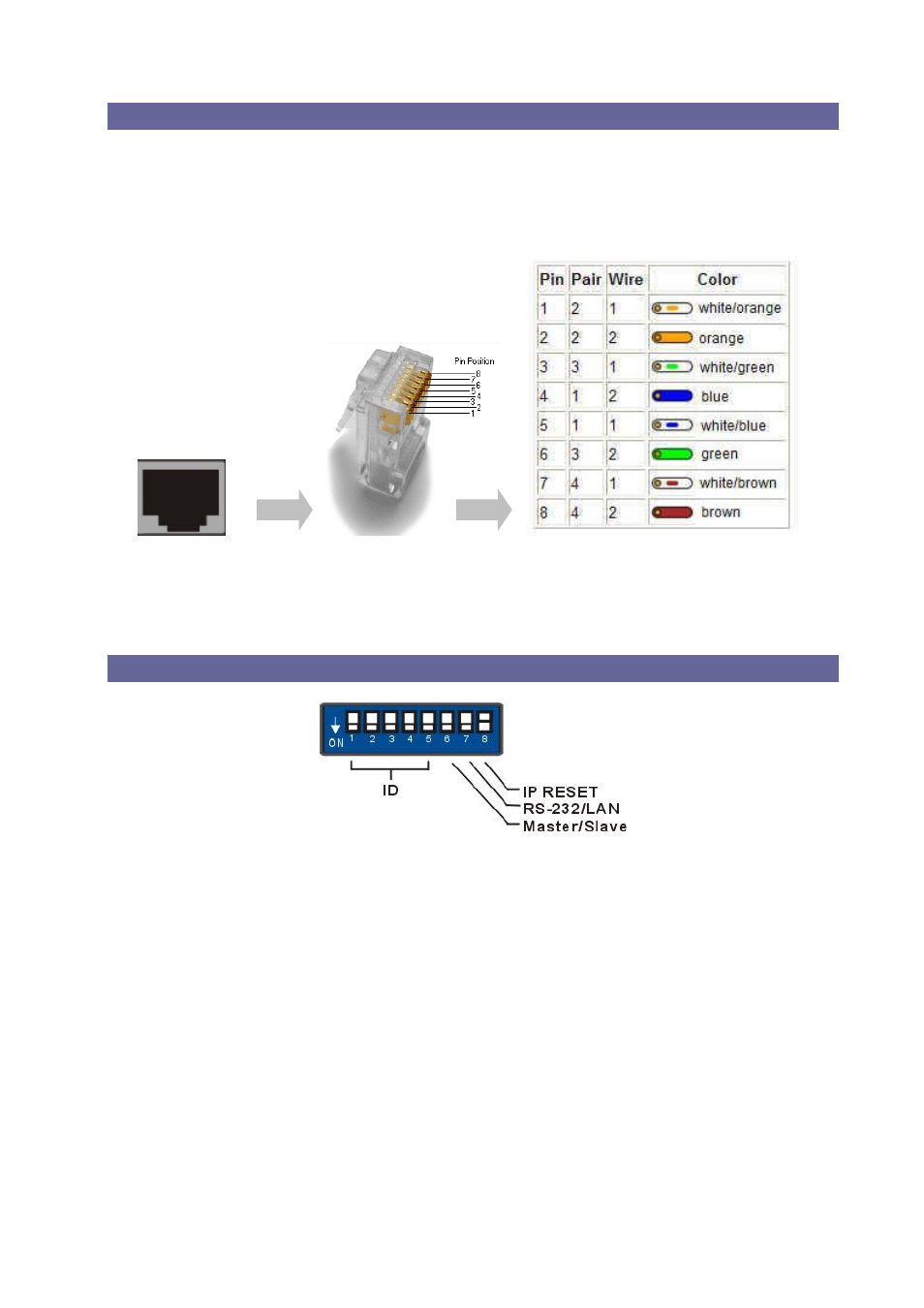

Figure 6-12 LAN Port
6.5.4 DIP Switcher for 8 Pins
Figure 6-13 DIP Switch for 8 Pins
A. DIP Switcher Pin 1 to 5: Switch to down (ON) is specified for “0”, on the other hand
to up (OFF) is specified for “1”. The default value is “ON”.
B. DIP Switcher Pin 6: Mater/Slave Enable/Disable. Only one Matrix device can be
connected to other device and control PC via RS-232/LAN that is specified as Master,
others are specified as Slave. The default value is “ON”.
ON: RS-485 Serial Master and RS-232 / LAN Enable.
OFF: RS-485 Serial Slave and RS-232 / LAN Disable.
