CHAPTER 4 DEVICE INSTALLATION
The Switcher has a black metallic housing. It can be placed on a sturdy desk directly or
installed on a bracket. See Figure 4-1 below:

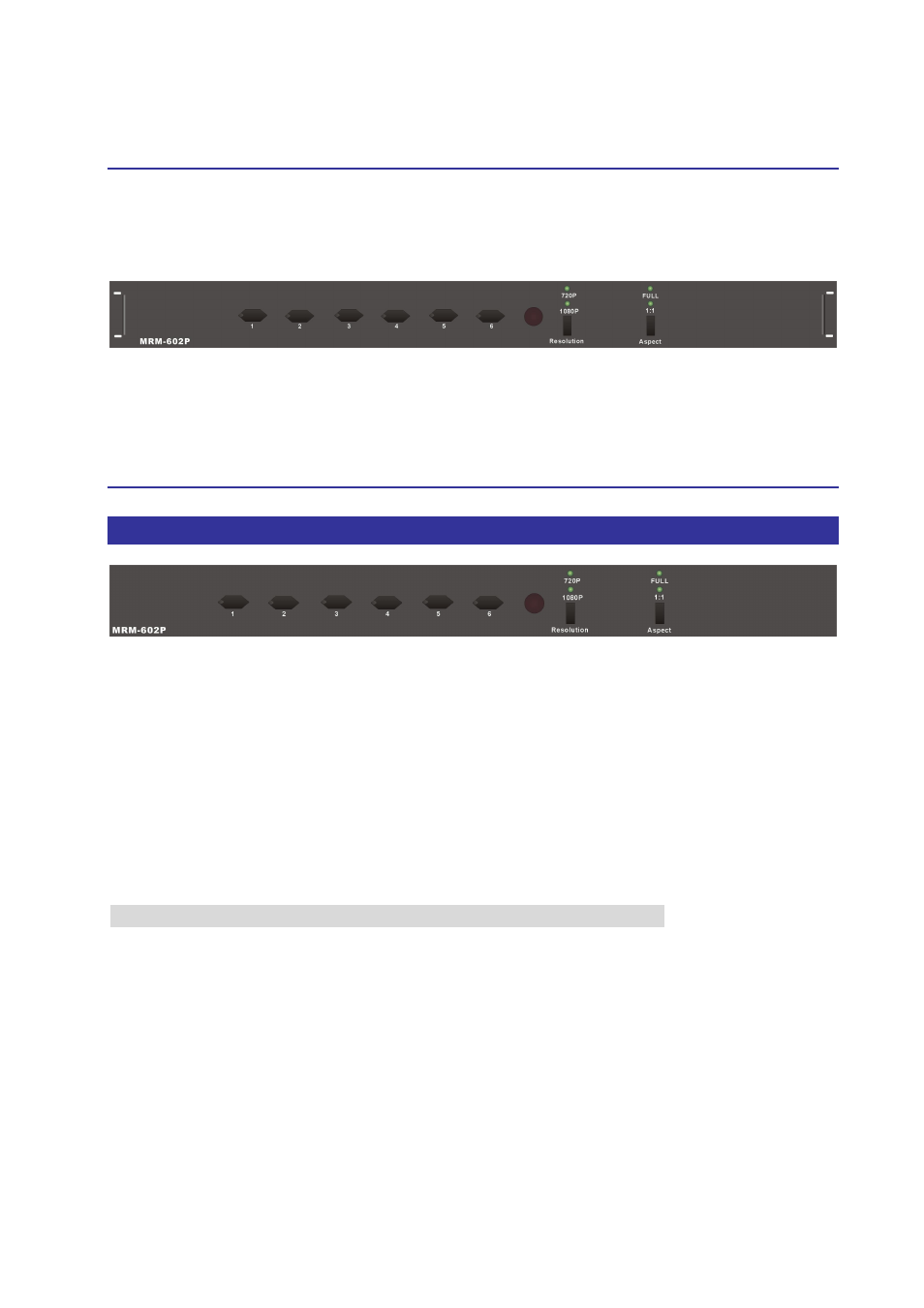

Figure 4-1 Mount the Device on a Standard Bracket with 1U Rack-mount
CHAPTER 5 FRONT/REAR PANELS
5.1 Front Panel
Figure 5-1 MRM-602P Switcher Front Panel
The MRM-602P Switcher supports up to 6 switching keys on the Front Panel for
indicating the connection status that allows you to switch connected sources quickly.
 Key1~6: Specifies the one of input channels that comes from VGA, YPbPr, DVI or
HDMI1~4 interface to the HDMI or VGA output. These keys configure the signal
sources of channel1~6. You can also use these keys to switch input channels.
 Only one of input channels can be configured as output source.
