6.2 Switcher System Remote Control
Use the RS-232 connecting cable to connect the computer serial communication port
(COM1 or COM2) to the RS-232 communication port of the MRM-602P Switcher. The
computer can then be used to control the MRM-602P Switcher after installing of
application software. Aside from using the front panel keys for switching operation, you
are also permitted to use the RS-232 connection port for a remote operation.

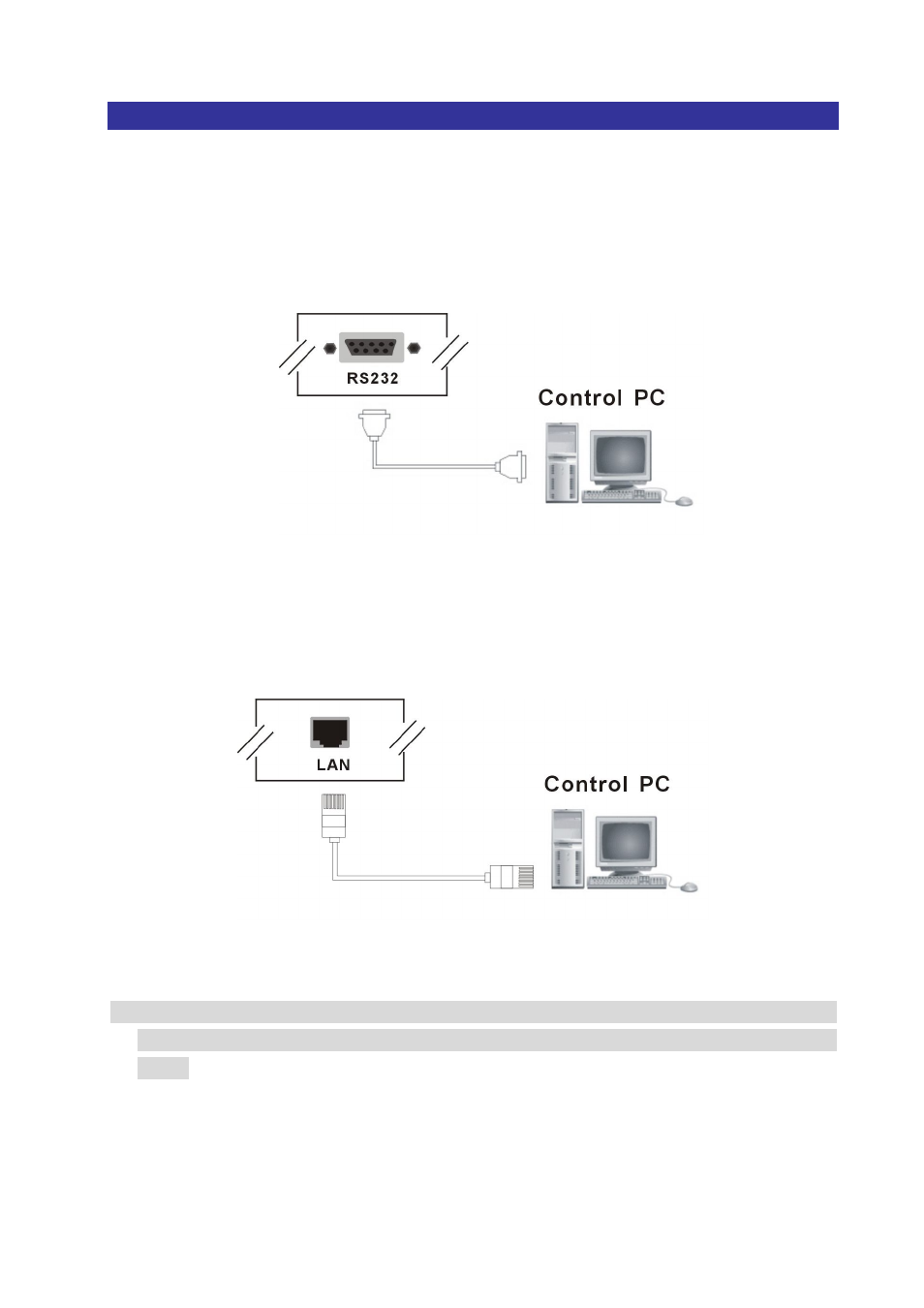

Figure 6-4 RS-232 and Control PC connection
The MRM-602P Switcher also supports a LAN port allows you to control all the series
connection devices through PC Browser.
Figure 6-5 LAN port and Control PC Connection
 The MRM-602P Switcher supports RS-232 and LAN port on the rear panel for a
remote control and allows you to operate settings via the keys located on the front
panel.
