9.4 Scales

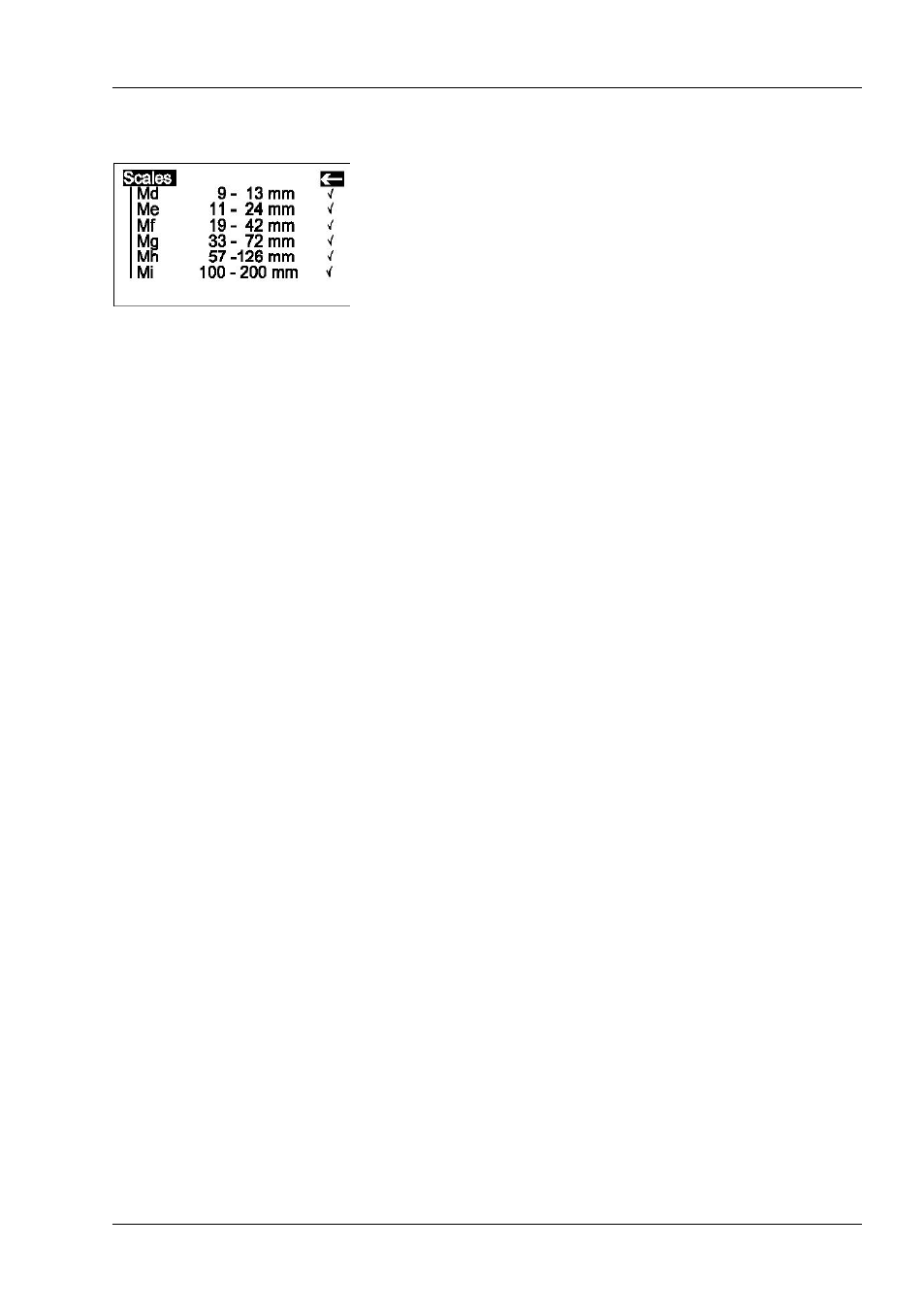

Eight scales may be selected for the display of the
measurement results.
Following scales are available:
Mottle Spectrum: Md...Mi
The measurement signal is filtered into 6 different
ranges, which represent a specific range of mottle
sizes.
Mottle Chart: T, M
a two-dimensional evaluation of small and large
mottles.
Texture: a measure for mottles smaller ~ 25mm
Mottling: a measure for mottles larger ~ 25mm
Select the desired scale and press the operate
button.
Note:
Depending on the mottle size, a minimum scan
length is required for measurement of:
Md to Mi 75 cm
Md to Mh 42 cm
Md to Mg 23 cm
Md to Mf 13 cm
Md to Me 10 cm
M 23 cm
