ECS and CXT-E Retrofit Instructions Kit # 27004-TAB

Technical Instruction Document

TID-0141_0A

12/30/2014

AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, New York 10913 • Phone: 800-526-0288 Page 50 of 76

COLD WATER INLET

(SEE VIEW “A - A”)

DW-45, DW-68

INSULATION

SHELL

FLOW

METER

A

A

ORIFICE

DISC

SPRING

RING

INLET

PIPE

VIEW “A - A”

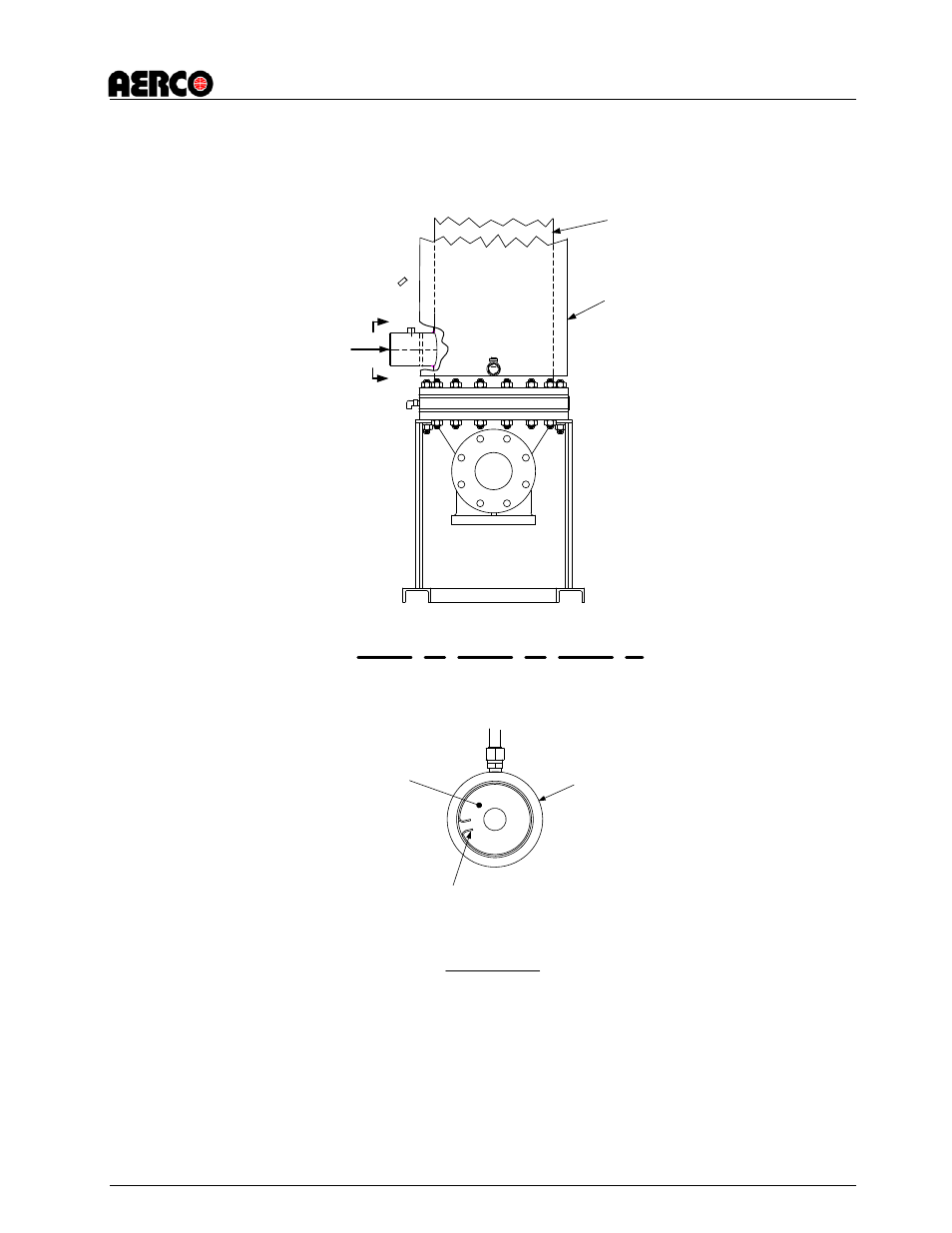

Figure 4-13. Cold Water Inlet Orifice Location – Water-to-Water

Double-Wall Heater

SWDW-45, SWDW-68
