19
48AJ,AK,AW,AY UNITS

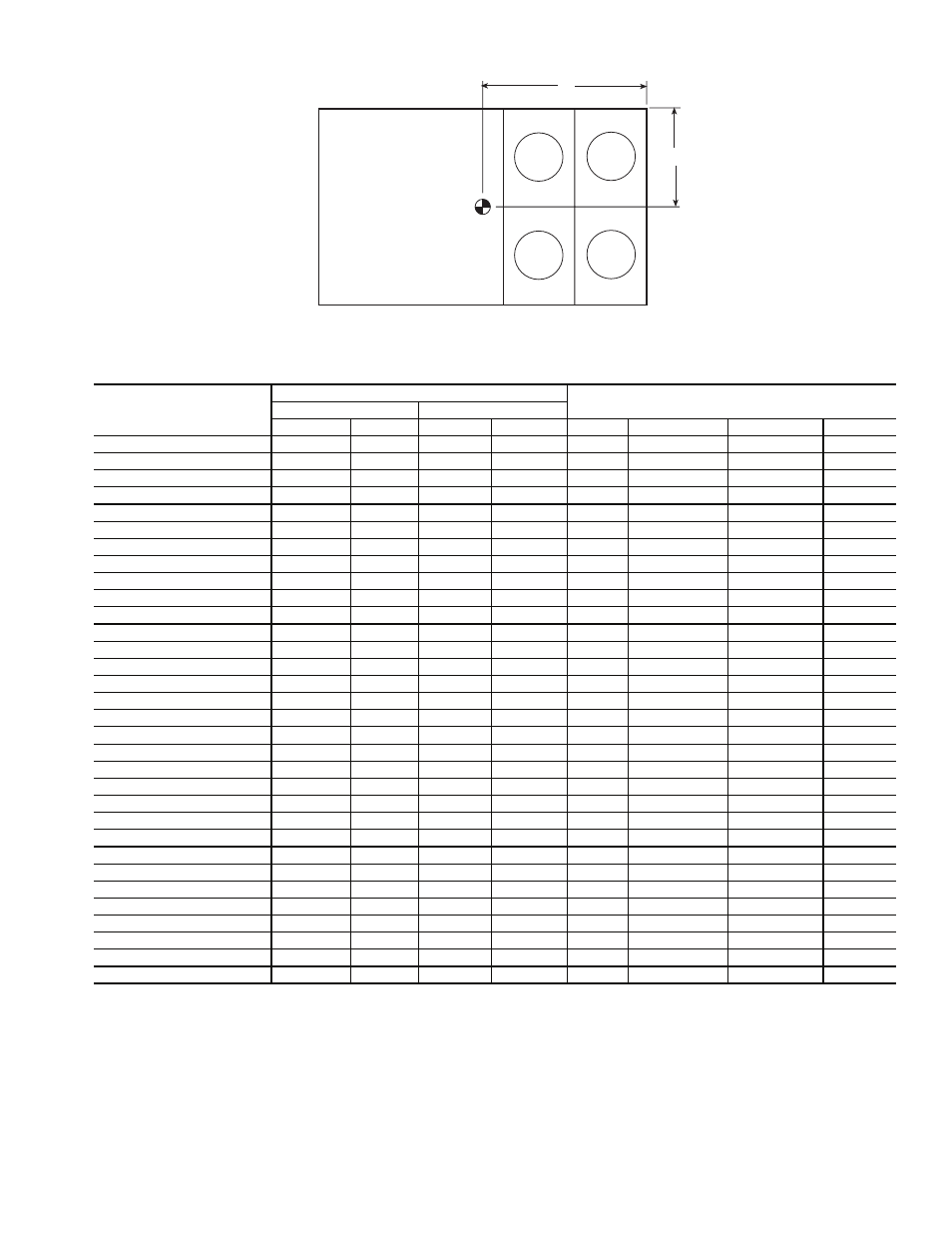

Fig. 17 — Rigging Information
UNIT
CENTER OF GRAVITY PERCENT OF TOTAL WEIGHT
AT EACH CORNER (%) Inches Millimeters
A B A B 1 2 3 4
48AJ,AKD020 72.4 42.2 1839 1072 21.0% 22.8% 29.2% 26.9%
48AJE020 73.3 42.7 1862 1085 21.6% 22.9% 28.6% 27.0%
48AW,AYD020 72.4 42.2 1839 1072 21.0% 22.8% 29.2% 26.9%
48AWE020 73.3 42.7 1862 1085 21.6% 22.9% 28.6% 27.0%
48AJ,AKD025 69.6 44.0 1768 1118 21.1% 21.1% 28.9% 28.9%
48AJE025 70.1 44.3 1781 1125 21.4% 21.1% 28.6% 29.0%
48AW,AYD025 69.6 44.0 1768 1118 21.1% 21.1% 28.9% 28.9%
48AWE025 70.1 44.3 1781 1125 21.4% 21.1% 28.6% 29.0%
48AJ,AKD027 69.6 44.0 1768 1118 21.1% 21.1% 28.9% 28.9%
48AJE027 70.1 44.3 1781 1125 21.4% 21.1% 28.6% 29.0%
48AW,AYD027 69.6 44.0 1768 1118 21.1% 21.1% 28.9% 28.9%
48AWE027 70.1 44.3 1781 1125 21.4% 21.1% 28.6% 29.0%
48AJ,AKD030 69.6 44.0 1768 1118 21.1% 21.1% 28.9% 28.9%
48AJE030 70.1 44.3 1781 1125 21.4% 21.1% 28.6% 29.0%
48AW,AYD030 69.6 44.0 1768 1118 21.1% 21.1% 28.9% 28.9%
48AWE030 70.1 44.3 1781 1125 21.4% 21.1% 28.6% 29.0%
48AJ,AKD035 92.7 46.9 2355 1191 23.0% 20.1% 26.6% 30.3%
48AJE035 94.1 47.2 2390 1199 23.5% 20.3% 26.1% 30.2%
48AW,AYD035 92.7 46.9 2355 1191 23.0% 20.1% 26.6% 30.3%
48AWE035 94.1 47.2 2390 1199 23.5% 20.3% 26.1% 30.2%
48AJ,AKD040 89.3 46.9 2268 1191 22.1% 19.4% 27.3% 31.2%
48AJE040 90.8 47.2 2306 1199 22.7% 19.6% 26.8% 31.0%
48AW,AYD040 89.3 46.9 2268 1191 22.1% 19.4% 27.3% 31.2%
48AWE040 90.8 47.2 2306 1199 22.7% 19.6% 26.8% 31.0%
48AJ,AKD050 87.7 46.5 2228 1181 21.6% 19.2% 27.9% 31.3%
48AJE050 89.2 46.8 2266 1189 22.1% 19.4% 27.4% 31.1%
48AW,AYD050 87.7 46.5 2228 1181 21.6% 19.2% 27.9% 31.3%
48AWE050 89.2 46.8 2266 1189 22.1% 19.4% 27.4% 31.1%
48AJ,AKD060 125.3 45.2 3181 1149 21.7% 19.3% 27.7% 31.2%
48AJE060 132.2 47.2 3359 1199 23.9% 19.4% 25.4% 31.3%
48AW,AYD060 127.7 46.6 3242 1184 21.7% 19.3% 27.7% 31.2%
48AWE060 134.7 48.6 3422 1235 23.9% 19.4% 25.4% 31.3%
A
B
3
4
2
1
