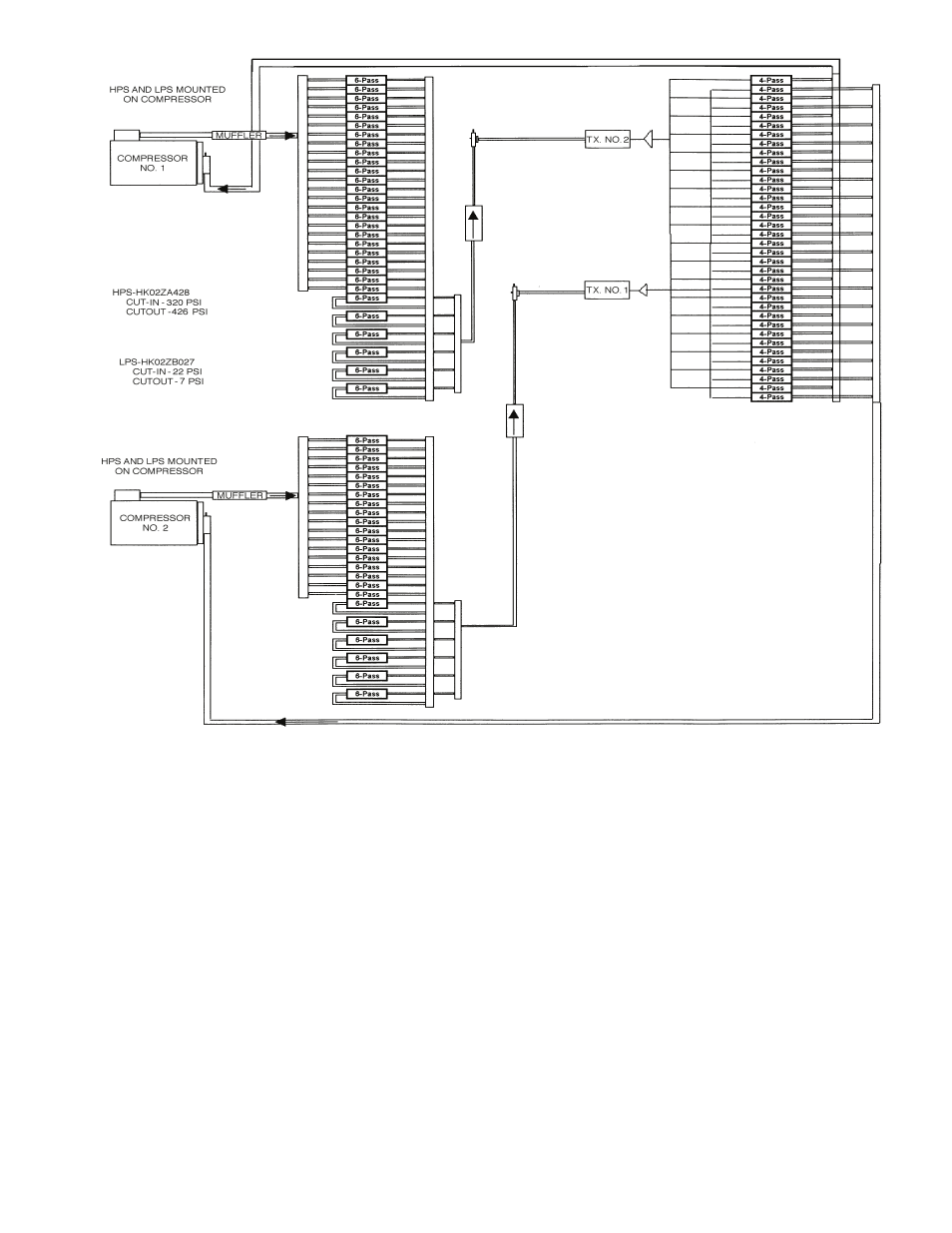

Fig. 92 — Typical Refrigerant Circuiting (48EJ,EK,EW,EY064)

HPS —

High-Pressure Switch

LPS —

Low-Pressure Switch

TXV —

Thermostatic Expansion Valve
