Page 14
CHAPTER 2: INSTALLATION
Page 14 of 160 PR2: 04/22/13
Benchmark 2.0LN Dual-Fuel Low NOx Boiler
Operation and Maintenance Manual
OMM-0052_0E
GF-127
AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 • Ph: 800-526-0288
2" PROPANE
INLET
CONNECTION
2" NATURAL
GAS INLET
CONNECTION
BOILER
RETURN
EXHAUST
MANIFOLD
BOILER SUPPLY
4" – 150# FLANGE
CONNECTION
SHELL
DRAIN
VALVE
REAR VIEW

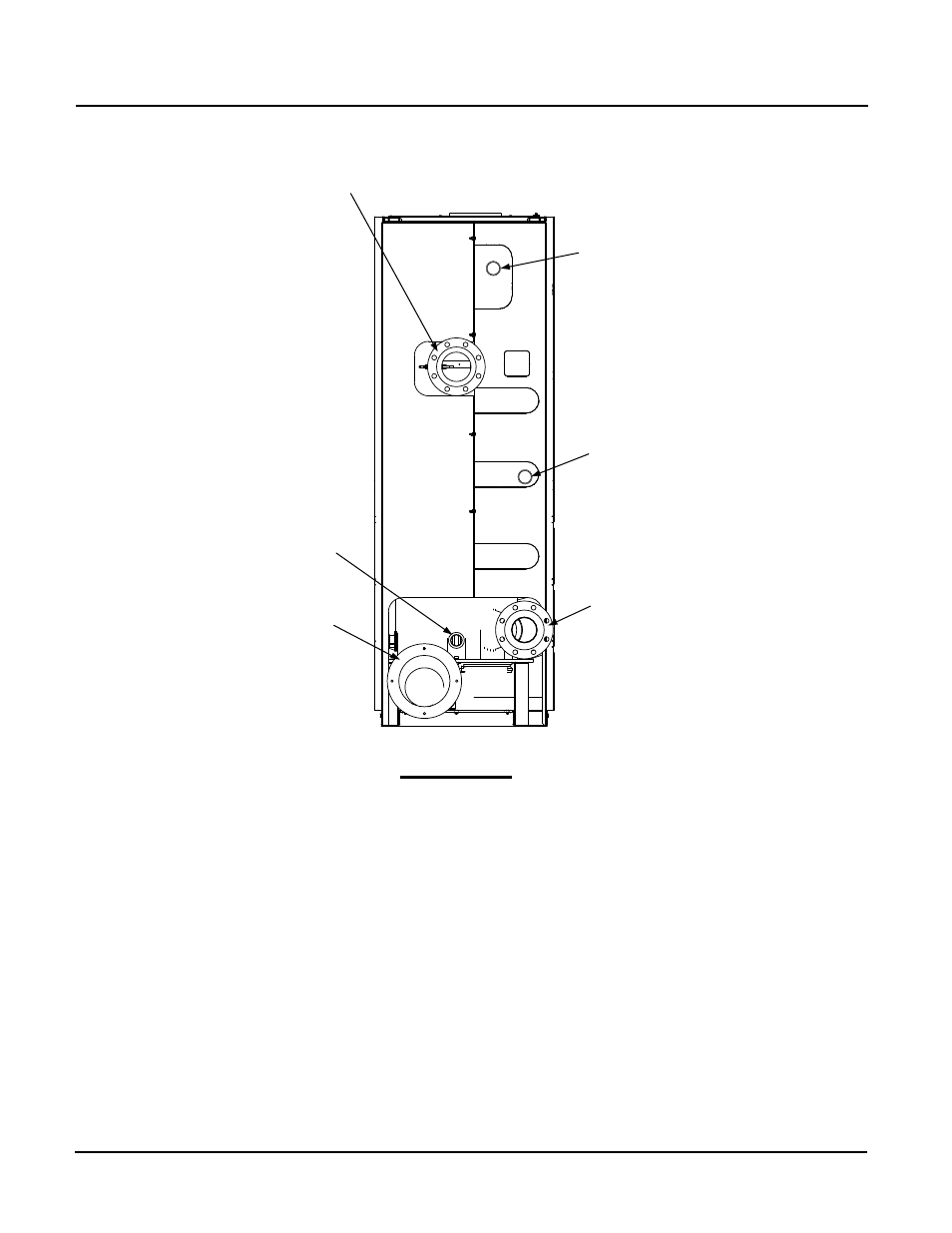

Figure 2-3: Supply and Return Locations
2.6 CONDENSATE DRAIN AND PIPING
The Benchmark 2.0LN Boiler is designed to condense water vapor from the flue products.
Therefore, the installation must have provisions for suitable condensate drainage or collection.
The condensate drain pipe located on the exhaust manifold (Figure 2-4) must be connected to a
condensate trap which is packed separately within the unit’s shipping container.
The procedure to install and connect the condensate drain is provided in paragraph 2.6.1.
