SR-500 Series
SR-500 Series (with mounting bracket)
Mounting bracket
General specifications
*
In order to comply with UL/IEC60950-1, Limited Power Source defined in UL/
IEC60950-1 must be use.

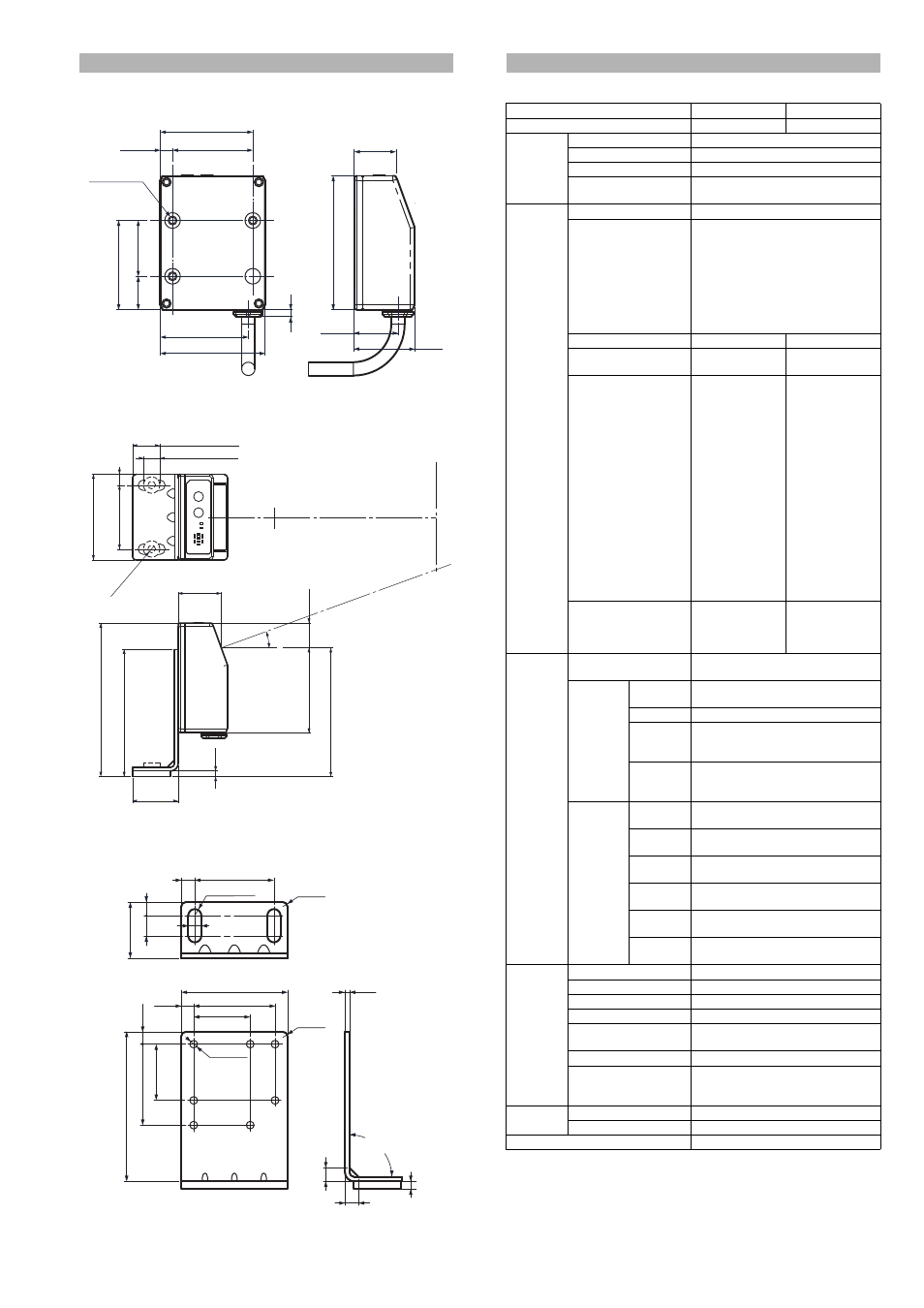

Dimensions
(40)
3
15
25
60
36
18.7
39.5
19.6
27.1
47
5.5
3-M3
Depth 5mm
(41.5)
35
6
47
* Use a screw position within this range
23.6
13.6
20°
8
4.1
25
69.6
3.1
46.4
70.5
2-
φ 4.1
15(Screw position)
9(Screw position)
47
2.0
36
5.5
25
25
36
66.5
5.5
35
4-(R2.9)
2-R2
2-R2
7-
φ3.4
6
3.1
90°
6
2-5.8
6
25
96
Specifications
Model
SR-500
SR-510
Type
High resolution
Mid-range
Laser
pointer
specifications
Light source
Visible light semiconductor laser (655nm)
Output
90μW
Pulse width
200μs
Laser Class
Class 1 Laser Product
(IEC60825-1,FDA(CDRH) Part1040.10)
Reading
specifications
Light
High precision red LED
Supported code
CODE39, ITF, industrial2of5, COOP2 of 5,
NW-7, CODE128, GS1 128, CODE93,
JAN/EAN/UPC (handles add-ons),
TriopticCode39,
GS1 Databar,
QR code, MicroQR,
DataMatrix (ECC200), PDF417, MicroPDF,
MaxiCODE,
CompositeCode (CC-A, CC-B, CC-C)
Focal distance
29mm
100mm
Minimum resolution
2D code: 0.08mm
Barcode: 0.127mm
2D code: 0.25mm
Reading distance
(typical examples)
QR:
24 to 30 mm
(cell size: 0.08 mm)
20 to 34 mm
(cell size: 0.127 mm)
16 to 43 mm
(cell size: 0.25 mm)
DataMatrix:
25 to 29 mm
(cell size: 0.08 mm)
21 to 34 mm
(cell size: 0.127 mm)
20 to 40 mm
(cell size: 0.25 mm)
Barcode:
60 to 110 mm
(narrow bar width:
0.127 mm)
60 to 180 mm
(narrowbar width:
0.25 mm)
55 to 250 mm
(narrow bar width:
0.5 mm)
2D code:
55 to 125 mm
(cell size: 0.25 mm)
50 to 140 mm
(cell size: 0.33 mm)
45 to 180 mm
(cell size: 0.5 mm)
Reading view range
18.5x13.9mm
(Distance: 29mm)
60.9x45.6mm
(Distance:100mm)
116.3x87.2 mm
(Distance:200mm)
I/O
specifications
Trigger and preset input
Non-voltage input (with contacts,
without contacts) for each point,
Comparator
output
Output form
Four types (OK, NG, ERROR, BUSY)
NPN open collector
Rated load
24VDC 30mA
OFF
leakage
current
0.1mA or less
ON
residual
voltage
0.8V or less
Serial
inter-
face
Communication
method
Conforming to EIA, RS-232C standard
Transmission
speed
9600, 19200, 38400, 57600, 115200bit/s
Synchronization
method
Asynchronous
Data
bit length
7/8 bits
Stop
bit length
1/2 bits
Parity
check
None/Even/Odd
Environmental
resistance
Enclosure rating
IP65
Ambient temperature
0 to +45°C
Storage temperature
–10 to +50°C
Relative humidity
35 to 85% RH (No condensation)
Operating ambient
luminance
Sunlight: 10000 lx, incandescent lamp: 6000
lx, fluorescent lamp: 2000 lx
Operating environment
Location without dust or corrosive gas
Vibration
10 to 55Hz, double amplitude
1.5mm in the X, Y, and Z directions,
3 hours respectively
Electrical
rating
Voltage
5VDC +5%, –10%
Current consumption
400mA or less
Weight
Approx. 274g (including the cable)
