1

Vision Sensor

IV Series Setting Guide

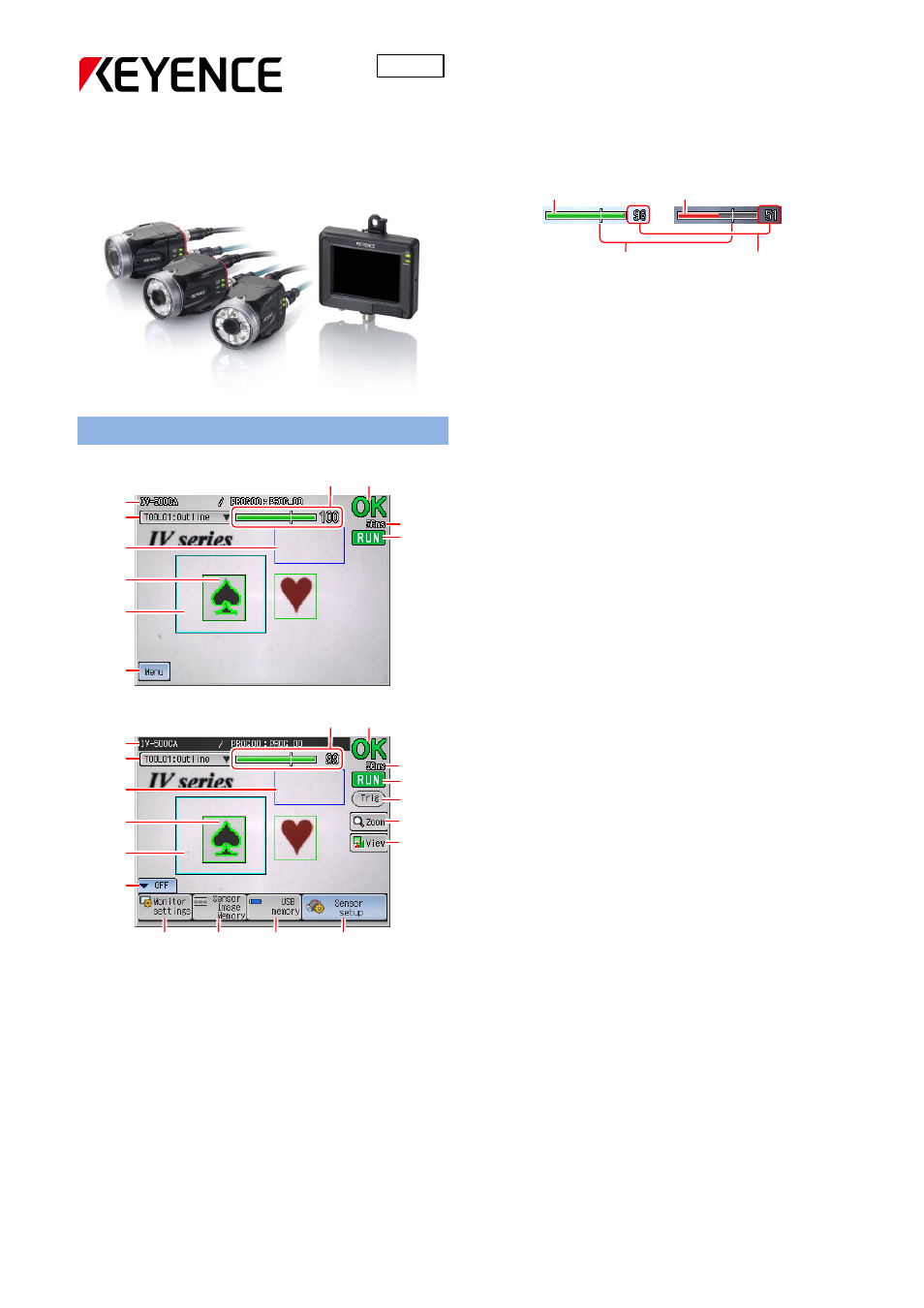

Monitor Display

Menu OFF

Menu ON

(1) Title

Displays the device name, the program number and the program

name.

(2) Tool name

Displays the tool number and the tool name of the tool selected. The

selected tool can be switched.

(3) Brightness correction range

When the Brightness correction is set, the range will be displayed

with a blue frame.

(4) Tool window

Displays the tool window which has been set.

(5) Search Window

If the search window of the tool is set, the range will be displayed
with a light blue frame.

(6) [MENU] button

Changes the screen to the Menu ON screen.

(7) [OFF] button

Changes the screen to the Menu OFF screen.

(8) Status gauge

Displays the result (OK/NG) of the tool selected.



(9) OK/NG display

Displays the total status result.

(10) Processing time

Displays the time from receiving a trigger until the result is output.

(11) [Image Type] display

Displays the situation of the screen. Run mode or Test mode.

(12) [Trig] button

Displayed when the external trigger is set. When this button is
touched, a trigger signal is sent to the sensor.

(13) [Zoom] button

Changes the display to full screen mode and makes it possible to
enlarge the image.

(14) [View] button

Displays the menu to select how to show the tools and the analyze
screen.

(15) [Monitor settings] button

Displays the monitor screen.

(16) [Sensor Image Memory] button

Displays the Sensor Image Memory screen.

(17) [USB memory] button

Displays the USB memory screen.

(18) [Sensor setup] button

Stops the running mode and displays the Sensor setup menu
screen.

462GB

(8)

(9)

(1)
(2)

(3)

(4)

(5)

(6)

(10)
(11)

(1)
(2)

(3)

(4)

(5)

(7)

(8)

(9)

(10)
(11)
(12)

(13)

(14)

(18)

(17)

(16)

(15)

Status OK (green)

Status NG (red)

Threshold

Matching rate
