Page 3

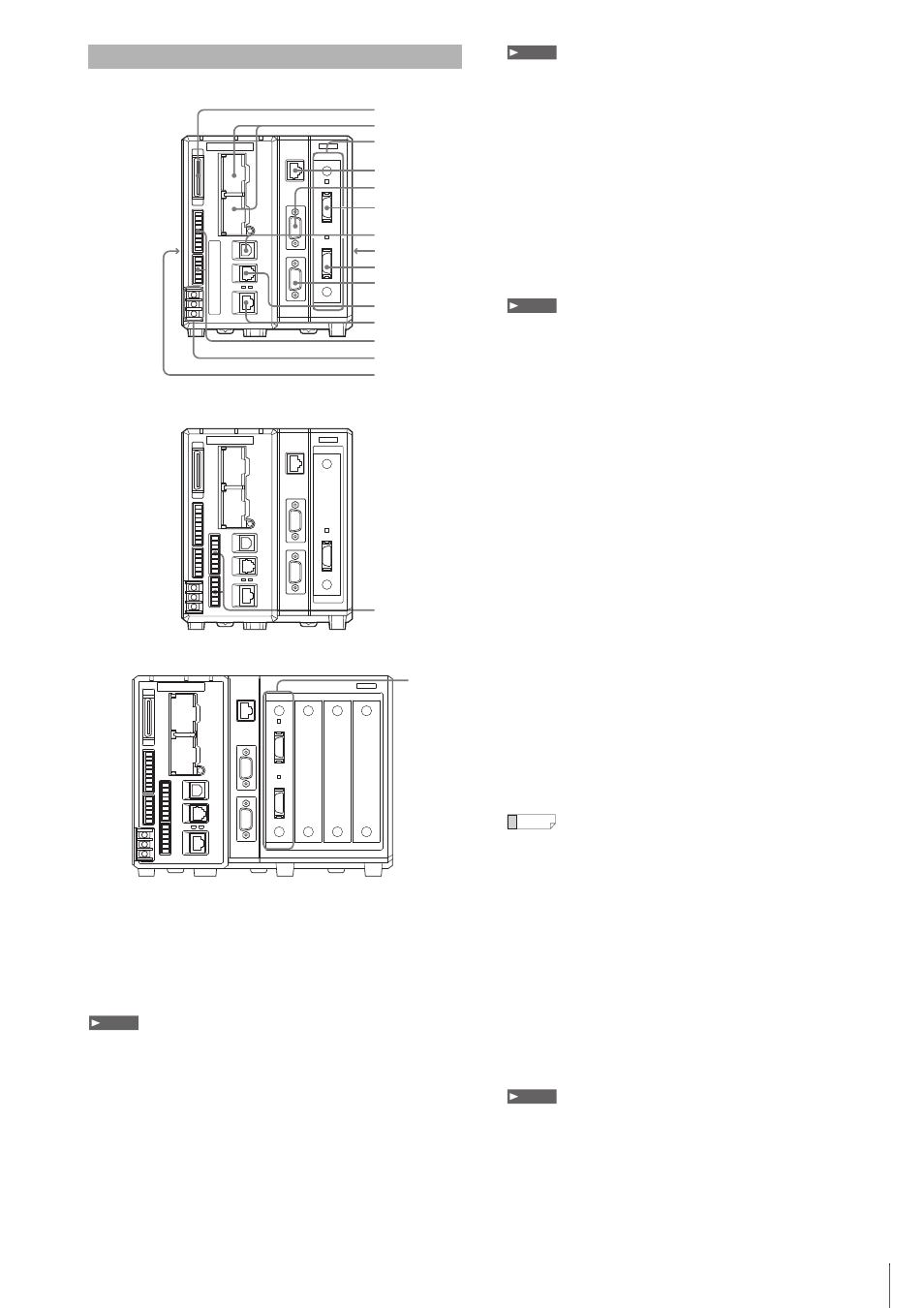

XG-8700/8702/8500/8502/8000/8002

XG-8700L/8702L/8500L/8502L

XG-8800/8002/8800L/8802L

1 Parallel I/O connector
Use to connect the parallel input/output signals.

2 SD2 slot (upper), SD1 slot (lower)
Insert an SD card.
The lower slot (SD1) holds the included SD Card (CA-SD1G: 1GB,
or OP-87133: 512MB) as SD Card 1.

SD Card 1 must be inserted while the device is operating.

3 Camera Slot
Connect the camera input unit.
• The Camera Input Unit (CA-EC80: Area Scan Camera, or

CA-EC80L: Line Scan Camera) is connected to the slot at the
time of shipping.

• The XG-8800(P)/8802(P)/8800L(P)/8802L(P) have 3 free slots.

The user can add camera input units according to need.

• Camera input unit CA-EC80HX cannot be used with the XG-8800L(P).

Camera input unit CA-EC80HX/CA-EC80L/XG-EC80L cannot be used with
the XG-8800(P).

• If the firmware of the camera input unit is old, an error message will be

displayed at the startup of the device (Ver.5.0.0020 or later). In this case,
execute an update with the latest firmware with the camera input unit
attached.

4 CONSOLE (Modular) connector
Use to connect to the console (OP-84231/OP-84236, optional) or to
the console connector cable (OP-87260: 3 m/OP-87261: 10 m,
optional).

5 MONITOR (RGB output) terminal
Use to connect to an Analog RGB Monitor.

• When using a commercially available Analog RGB Monitor other than the

SVGA (800 x 600 pixels), or XGA (1024 x 768 pixels), due to the
specifications of the Monitor, the image quality may become worse or the
screen may not display correctly (recommended monitor: CA-MP120T/
CA-MP120/CA-MP81).

• When a program setting where XGA output is set is used in the main unit,

always connect a monitor that supports the XGA. When using a monitor
that supports the SVGA only, the screen may not display correctly.

6 CAMERA 2 connector (only when CA-EC80/XG-EC80

installed)

Connect Camera 2. When the XG-EC80HX/CA-EC80L/XG-EC80L
is installed only Camera 1 is connected.

7 USB connector
Use to connect to the USB cable.

8 Expansion unit connector 1 (right side)
Use to connect the camera expansion unit CA-E800/XG-E800.

9 CAMERA 1 connector
Use to connect to the camera 1.

10 RS-232C Port 2
Connect the RS-232C Cable for the Touch Panel (OP-87258: 3 m/
OP-87259: 10 m, optional) or a commercially available RS-232C
Cable (D-sub9 Pin female).

11 RS-232C Port 1
Connect the RS-232C Communication Cable (OP-26487: 2.5 m,
optional) or the RS-232C Modular Cable for the Touch Panel
(OP-87264: 3 m/OP-87265: 10 m, optional).

For the default settings of the RS-232C Port: Port 1 is for data output and
command control, and Port 2 is for CA Series Touch Panel use. Concerning
changes in the settings refer to the XG-8000 Series User’s Manual.

12 Ethernet connector
Use to connect the Ethernet cable.

13 OUT1/IN1 Connector (Terminal Block 1)
Use the signal Input/Output (OUT1/IN1).

14 Power Source/Grounding Terminal
Connect the power supply (24 VDC) and the grounding wire.

15 Expansion unit connector 2 (left side)
Use to connect the illumination expansion unit CA-DC30E/DC21E or
CC-Link unit CA-NCL10E.

• The CA-DC30E cannot be connected to the XG-8800(P) or XG-8800L(P).
• When the illumination expansion unit CA-DC20E is connected, flash control

is limited to FLASH1-4.

16 IN2/OUT2 Connector

(Terminal Block 2, XG-8500L(P)/8502L(P)/8700L(P)/8702L(P)/
8800(P)/8802(P)/8800L(P)/8802L(P) only)

Use for the Input/Output signal (IN2/OUT2).

Identifying Controls and Connectors

6
7

10
11

Note

Reference

Note
