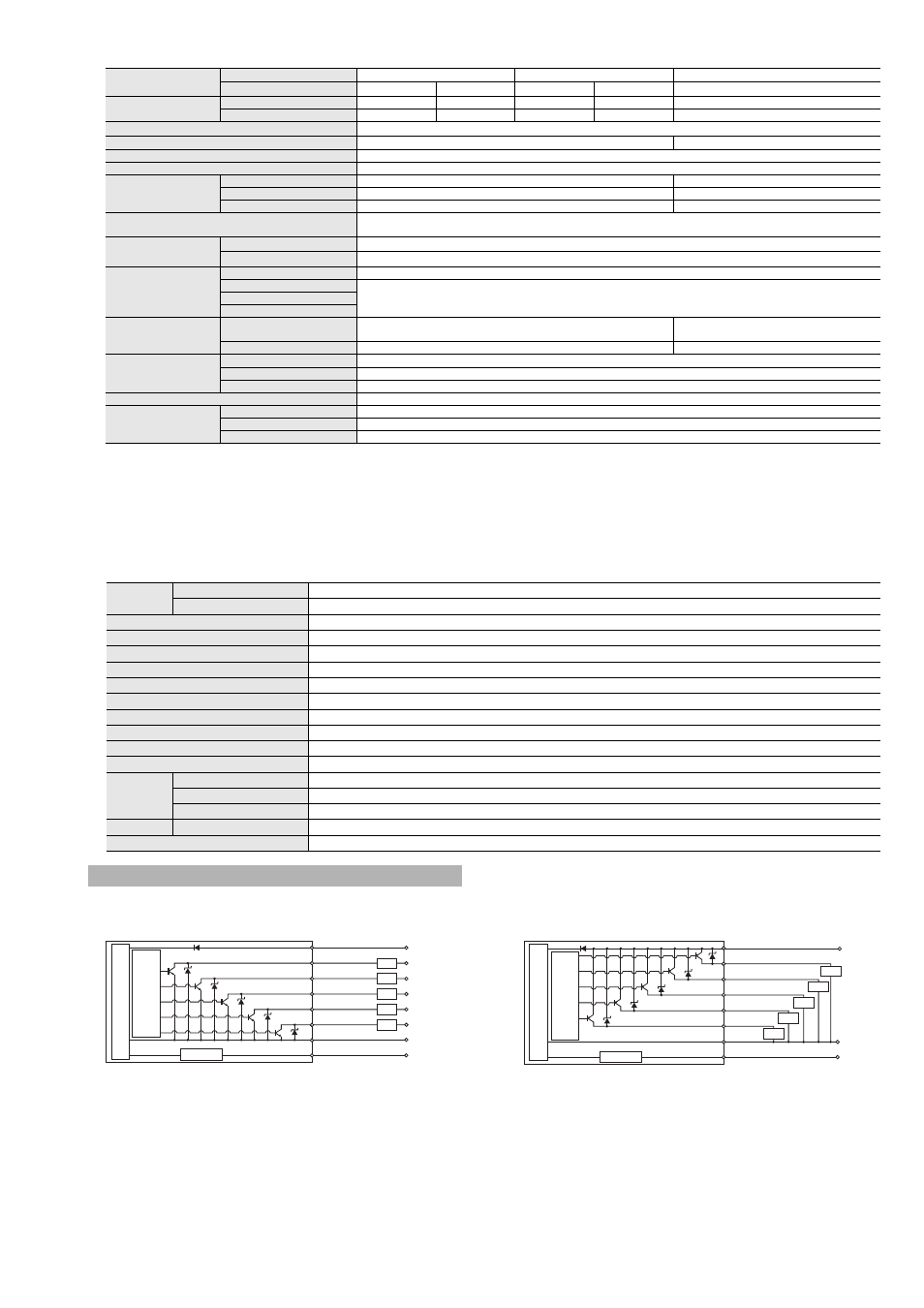

■ Amplifier (GT2-71(C)N/71(C)P/72(C)N/72(C)P/75N/75P/76N/76P/71MCN/71MCP)
*1 When using the DIN rail mount type unit, be sure to mount it to a DIN rail (fixed to a metal plate). Use the end unit (OP-26751) when connecting expansion units.
*2 When adding an expansion unit(s), the following restrictions apply depending on the number of connected units.
When connecting 2 to 8 units including the main unit
• Supply voltage: 20 to 30 VDC
• Control output current: 20 mA max.
• (GT2-71MCN/71MCP only) Surrounding air temperature: -10 to +45°C
When connecting 9 to 15 units including the main unit
• Supply voltage: 20 to 30 VDC
• Control output current: 10 mA max. (including the output current of the DL-RB1A)
• Residual voltage: 1.5 V max.
• (GT2-71MCN/71MCP only) Surrounding air temperature: -10 to +45°C
*3 HH and LL are not available for GT2-71MCN/71MCP.
■ Amplifier (GT2-71D)
Circuit diagram
■ I/O circuit diagram
GT2-71(M)(C)N/72(C)N/75N/76N GT2-71(M)(C)P/72(C)P/75P/76P
Type
Mount type *1 DIN rail mount Panel mount DIN rail mount
Main unit/Expansion unit *2 Main unit Expansion unit Main unit Expansion unit Main unit
Model
NPN output GT2-71(C)N GT2-72(C)N GT2-75N GT2-76N GT2-71MCN
PNP output GT2-71(C)P GT2-72(C)P GT2-75P GT2-76P GT2-71MCP
Number of units that can be added *2 Up to 14 expansion units for 1 main unit
Supply voltage *2 10 to 30 VDC, including 10% ripple (P-P) Class 2 20 to 30 VDC, including 10% ripple (P-P) Class 2
Display range -199.9999 to 199.9999
Display resolution 0.1 µm
Current consumption
Normal 2200 mW max. (73.3 mA max. at 30 V) 2700 mW max. (90 mA max. at 30 V)
Power saving (eco half) 1800 mW max. (60.0 mA max. at 30 V) 2300 mW max. (76.7 mA max. at 30 V)
Power saving (eco) 1700 mW max. (56.7 mA max. at 30 V) 2200 mW max. (73.3 mA max. at 30 V)
Response time
hsp (3 ms), 5 ms, 10 ms, 100 ms, 500 ms, 1000 ms
(hsp (12ms), 20ms, 40ms, 400ms, 2000ms, 4000ms when using GT2-P***/PA*** with a sensor head)
Control output
(HH/HIGH/GO/LOW/LL)
*3
NPN output NPN open collector 40 V 50 mA max. Residual voltage: 1 V max. *2
PNP output PNP open collector 30 V 50 mA max. Residual voltage: 1 V max. *2
Control input
Timing input Input time: 2 ms min.
Preset input
Input time: 20 ms min. Reset input
Bank input
Analog output
Output range –––––––––––––––
4 to 20 mA, Maximum load resistance 350 
(Can be set anywhere within the analog output range)
Response time ––––––––––––––– Specified response time + 1 ms
Environmental
resistance
Surrounding air temperature *2 -10 to +50°C (No freezing) *2
Relative humidity 35 to 85%RH (No condensation)
Vibration 10 to 55 Hz, Horizontal amplitude: 1.5 mm, 2 hours each in X, Y, and Z axis
Material Main unit cover/Front cover: Polycarbonate (PC), Keytop: Polyacetal (POM), Front sheet: Polyethylene terephthalate (PET), Cable: Polyvinyl chloride (PVC)
Weight
GT2-71N/71P/72N/72P Approx. 140 g (Including a power cable)
GT2-75N/75P/76N/76P Approx. 140 g (Including a panel mounting bracket, front protective cover, power cable)
GT2-71(M)CN/71(M)CP/72CN/72CP Approx. 70 g
Type
Mount type DIN rail mount
Main unit/Expansion unit Main unit
Model GT2-71D
Number of units that can be added Expansion not possible
Supply voltage 10 to 30 VDC, including 10% ripple (P-P) Class 2
Indicators Power indicator (green), alarm indicator (red), pulse output indicator (green), input indicator (green)
Pulse resolution Select from 0.1 µ m, 0.5 µ m, 1 µ m, 10 µ m
Power consumption 1600 mW or less (53.3 mA or less with 30 V)
Minimum phase difference Select from 0.5 µ s, 2.5 µ s, 5 µ s, 25 µ s
Control input (homing) No-voltage input (with contact, without contact), input time 20 ms or more
Output signal Phase A/B/Z 90° phase difference, differential square-wave (EIA-422 compliant), x 4
Output signal level +5 V
Environmental
resistance
Surrounding air temperature -10 to +50 ° C (No freezing)
Relative humidity 35 to 85%RH (No condensation)
Vibration 10 to 55 Hz, Horizontal amplitude: 1.5 mm, 2 hours each in X, Y, and Z axis
Material Main unit cover Polycarbonate (PC)
Weight Approx. 110 g (including a power cable)
*1 Brown and blue are available for main units (GT2-71(M)(C)N/75N) only.
Not available for expansion units (GT2-72N/76N).
The expansion unit of the connector type (GT2-72CN) is not connected.
*2 In the analog type (GT2-71MCN), the orange and green lines are analog output lines.
Refer to the analog output circuit diagram for details.
*3 When an expansion unit is connected or for the analog type (GT2-71MCN), the voltage is DC20-30V.
*4 Refer to external input circuit diagram for details about external input.
Input circuit
Brown * 1
Blue * 1
Pink, Violet, Pink/Violet, Yellow, Red * 4
Black (HI output)
White (LO output)
Gray (GO output)
Orange (HH output)* 2
Green (LL output)* 2
DC10-30V* 3
DC5-40V
DC5-40V
DC5-40V
DC5-40V
DC5-40V
0V
External input
Load
Main circuit
Ov
ercurrent
protection circuit
Load
Load
Load
Load
*1 Brown and blue are available for main units (GT2-71(M)(C)P/75P) only.
Not available for expansion units (GT2-72P/76P).
The expansion unit of the connector type (GT2-72CP) is not connected.
*2 In the analog type (GT2-71MCP), the orange and green lines are analog output lines.
Refer to the analog output circuit diagram for details.
*3 When an expansion unit is connected or for the analog type (GT2-71MCP), the voltage is DC20-30V.
*4 Refer to external input circuit diagram for details about external input.
Load
Load
Load
Load
Load
DC10-30V* 3
0V
External input
Brown * 1
Blue * 1
Pink, Violet, Pink/Violet, Yellow, Red * 4
Black (HI output)
White (LO output)
Gray (GO output)
Orange (HH output)* 2
Green (LL output)* 2 Ov
ercurrent
protection circuit
Main circuit
Input circuit
