Scale Operations
Operational Overview
The control panel for the weighing platform is in the front section of the pad, along with the
electronics of the system. The control panel has a liquid crystal display (LCD) screen and several
control switches.
Display Description

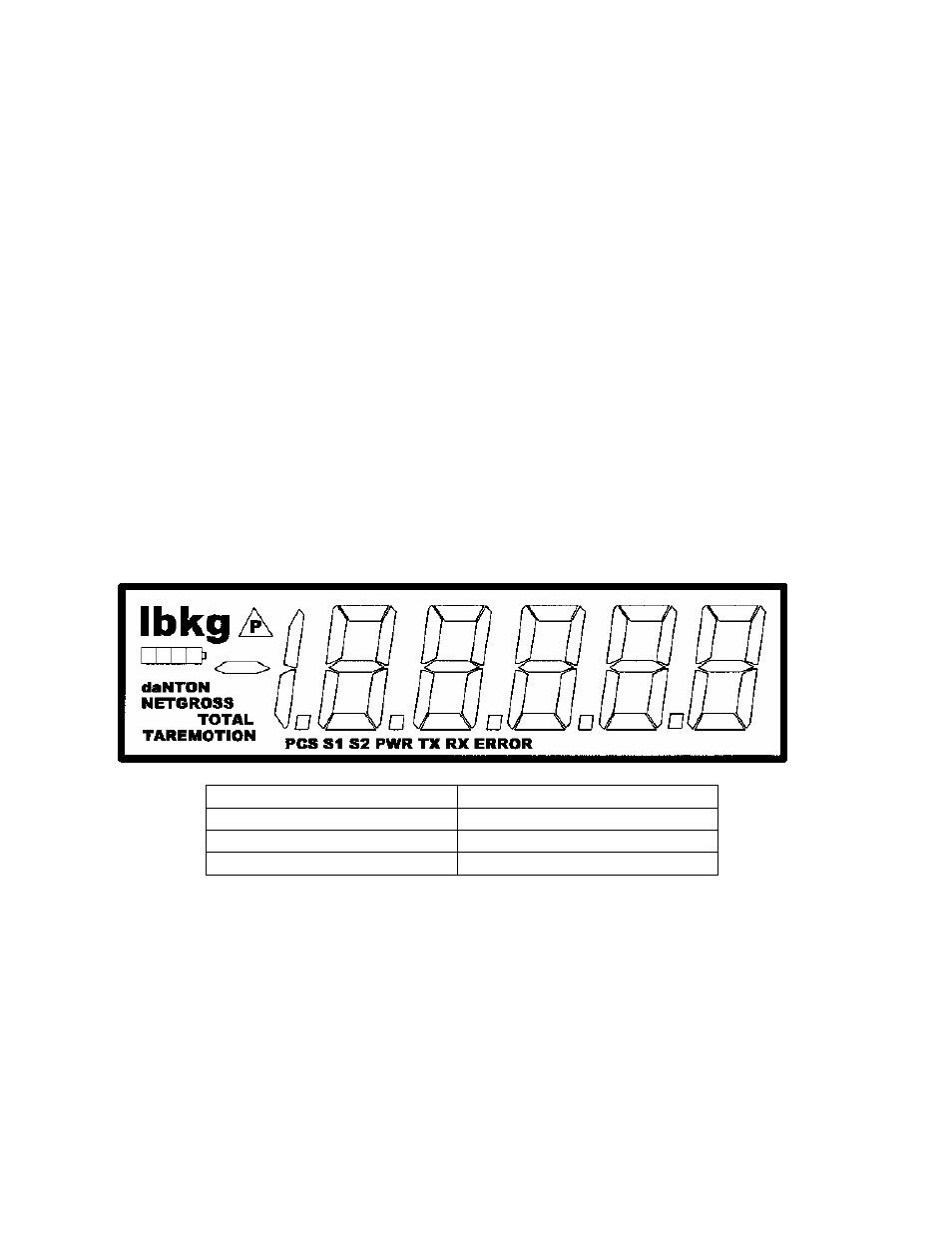

The display is a Liquid Crystal Display unit, providing one line of 5 1/2 digits. The screen shows
the weights read from the pad. The TOTAL icon indicates measurement mode as in the table
below the PT300 display. Information displayed includes indicators for both “lb” and “kg”, a
segment bar to show battery charge level, error conditions and set-point indicators when set-point
thresholds are reached. The display contains an automatic backlight for use in low-light
conditions.
Mode status Setting
TOTAL not lit Local
TOTAL lit Total
TOTAL flashing Accumulated Total
