HI WS100 CONFIGURATION SOFTWARE
4-6
enables the HI 1746-WS to read the infor-
mation in the integer file.

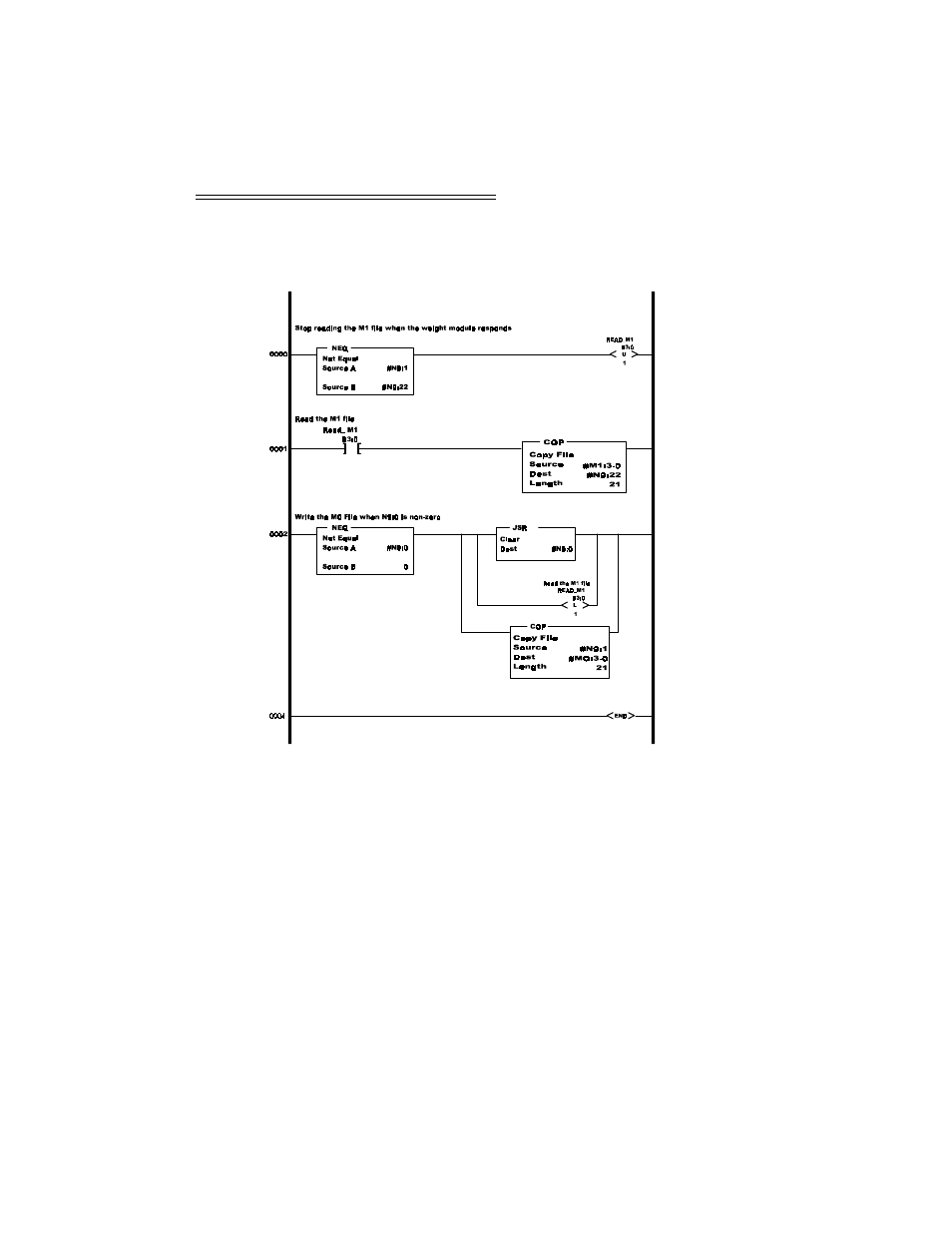

FIG. 4-4 SAMPLE OF REQUIRED LADDER LOGIC FOR INTEGER TYPE
FILES SLC 5/02
NOTE: Our example has the HI 1746-WS weigh module
located in slot #3 of the SLC and the integer file #9
(N9) is chosen with the starting word = 0.
Step 2. Click in the check box next to the “Use
integer file (required by 5/02, needs ladder
logic support)”. (See Fig. 4-5) The pro-
gram will write to the specified integer file
number (7,8,9, etc. for N7, N8, N9,. . .)
starting at the specified offset (starting
word) within that file. The program
