HI WS100 CONFIGURATION SOFTWARE
3-2
Wiring Diagram for
the HI 215IT
Junction Box
C2 Loadcell
Cable
Connection
(J1)
When connecting the HI 215IT Junction box using C2
loadcell/point cable (6020-0001) use the following
color code:

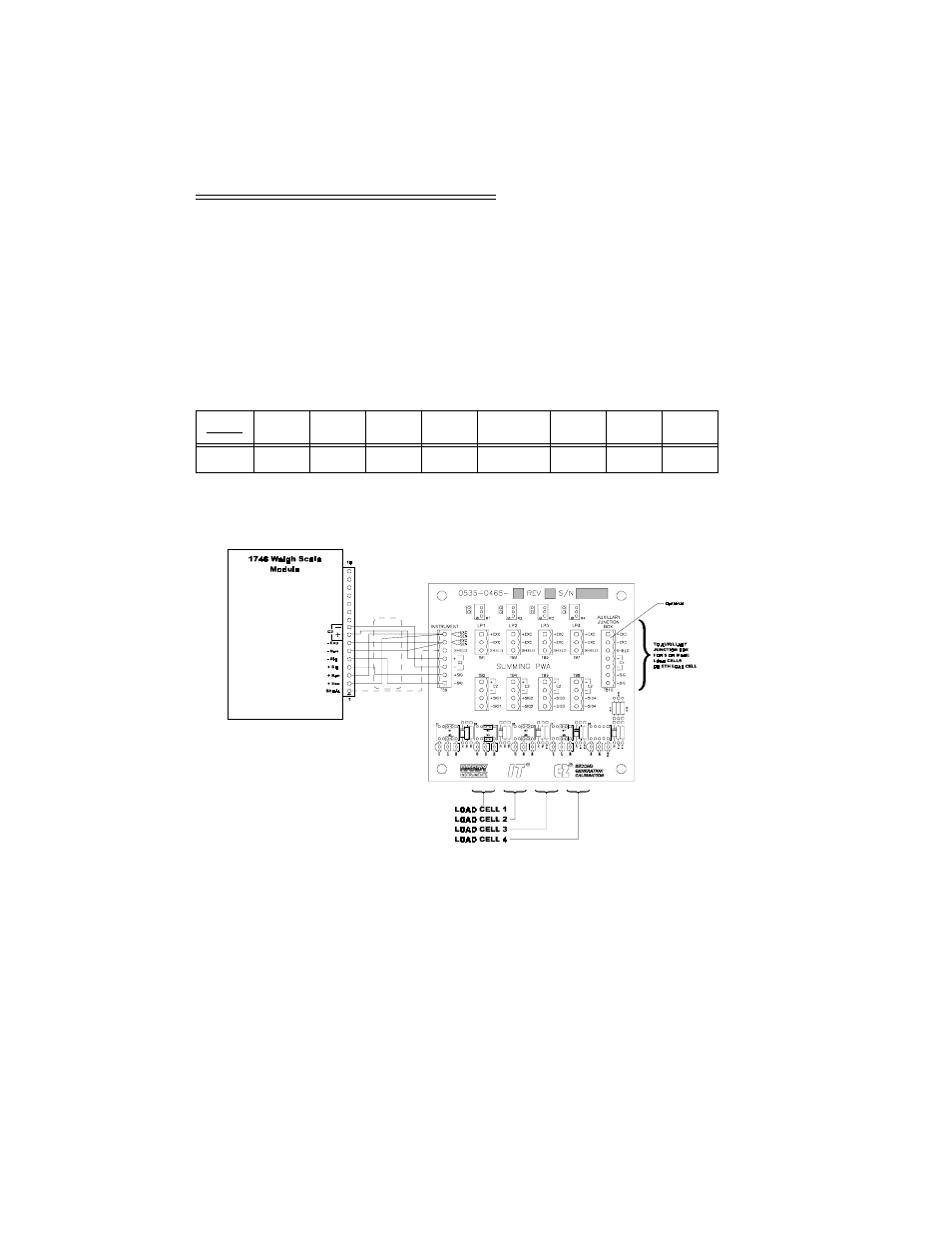

FIG. 3-1 C2 LOAD CELL CONNECTION/HI 215IT JUNCTION BOX
1
Recommended load cell cable, Hardy Instru-
ments (Prt. #6020-0001)
2
Attach the load shield to the terminal block
mounted next to the J1 connector on the HI
200DNWM Module.
Model
EXC +
SEN +
SIG +
SIG -
SEN -
EXC -
C2 +
C2 -
J-BOX
RED
BLUE
GRN
WHT
BRWN
BLK
GREY
VIO
Table 1: C2 CABLE COLOR CODE/HI 215IT J-BOX
