Chapter 3 - Installation
3-3
3 Do not run load cell cable in parallel with or
in the same conduit with power wiring, relay
cables or any other high energy cables.
4 Remove the factory installed jumpers for C2
wire load cell connection.
5 IT summing Card (Prt. #0535-0465)
Non-C2
Loadcell Cable
Connection
(J1) 1 Attach the load cell cable to the terminal
block mounted next to the J1 connector on
the HI 200DNWM Module.
2 Factory installed jumpers to remain in place
for 4 wire load cell connection.
3 Do not run load cell cable in parallel with or
in the same conduit with power wiring, relay
cables or any other high energy cables.
4 Eight (8) conductor load cell cable required
when:
• Cable runs are greater than 50 feet.
• With Soft Calibration

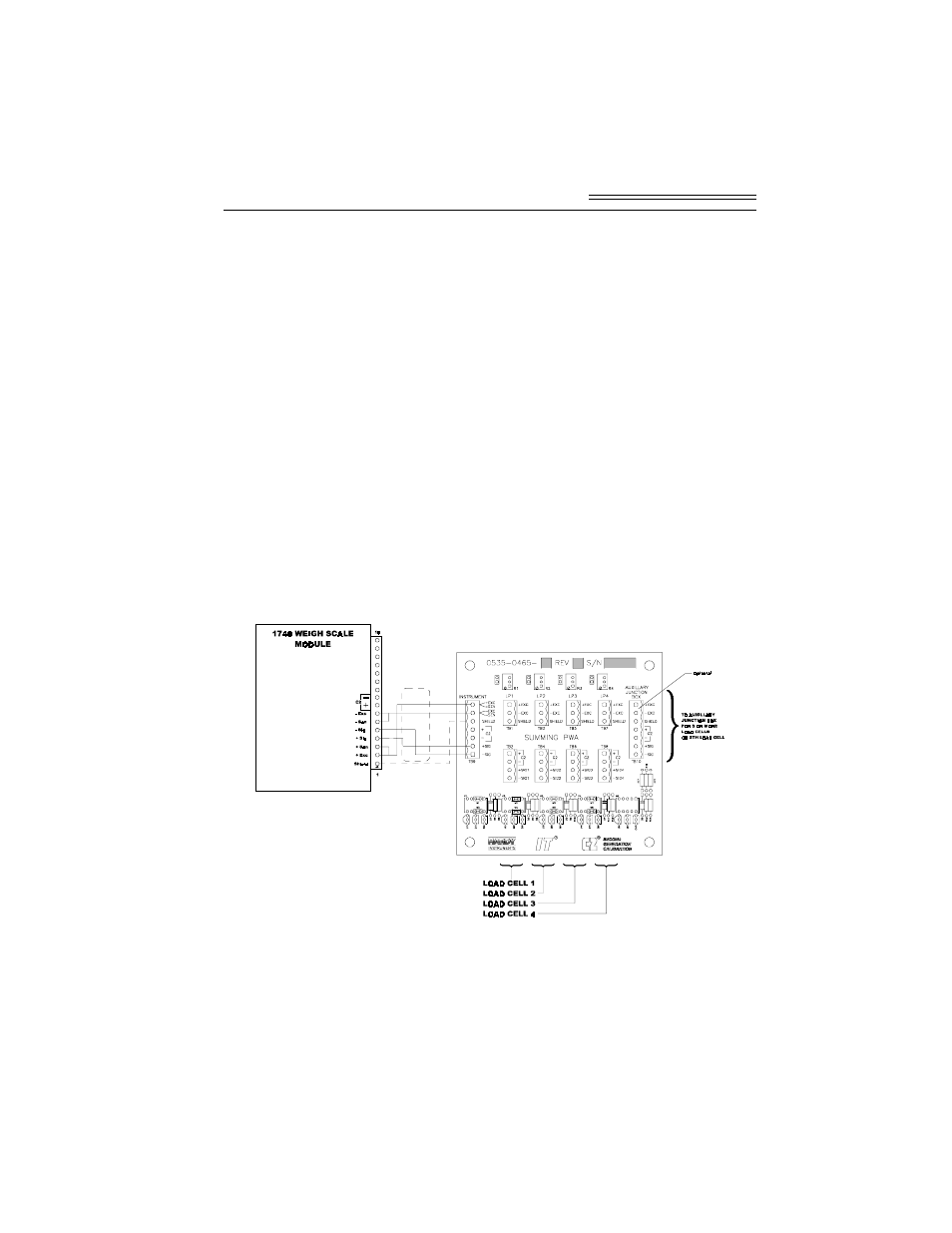

FIG. 3-2 NON C2 LOAD CELL CONNECTION/HI 215IT JUNCTION BOX
