Brookfield DV-II+ Digital Viscometer - Manual (Page 47)

Appendix I - DVE-50 Probe Clip
Probe Clip DVE-50 is supplied with all model DV-II+ Viscometers, DV-III Rheometers, and Digital
Temperature Indicators. It is used to attach the RTD temperature probe to the LV Guard Leg (Part
No. B-20Y) or 600 ml low form Griffin beaker. Figure H1 is a view of the Probe Clip, showing the
hole into which the RTD probe is inserted, and the slot which fits onto the LV guard leg. When
inserting the RTD probe into the Probe Clip, the upper part of the Clip is compressed by squeezing
the points shown in Figure H1.
Note: All Viscometer/Rheometer models — except LV — use the Probe Clip as shown in Figure
H3.

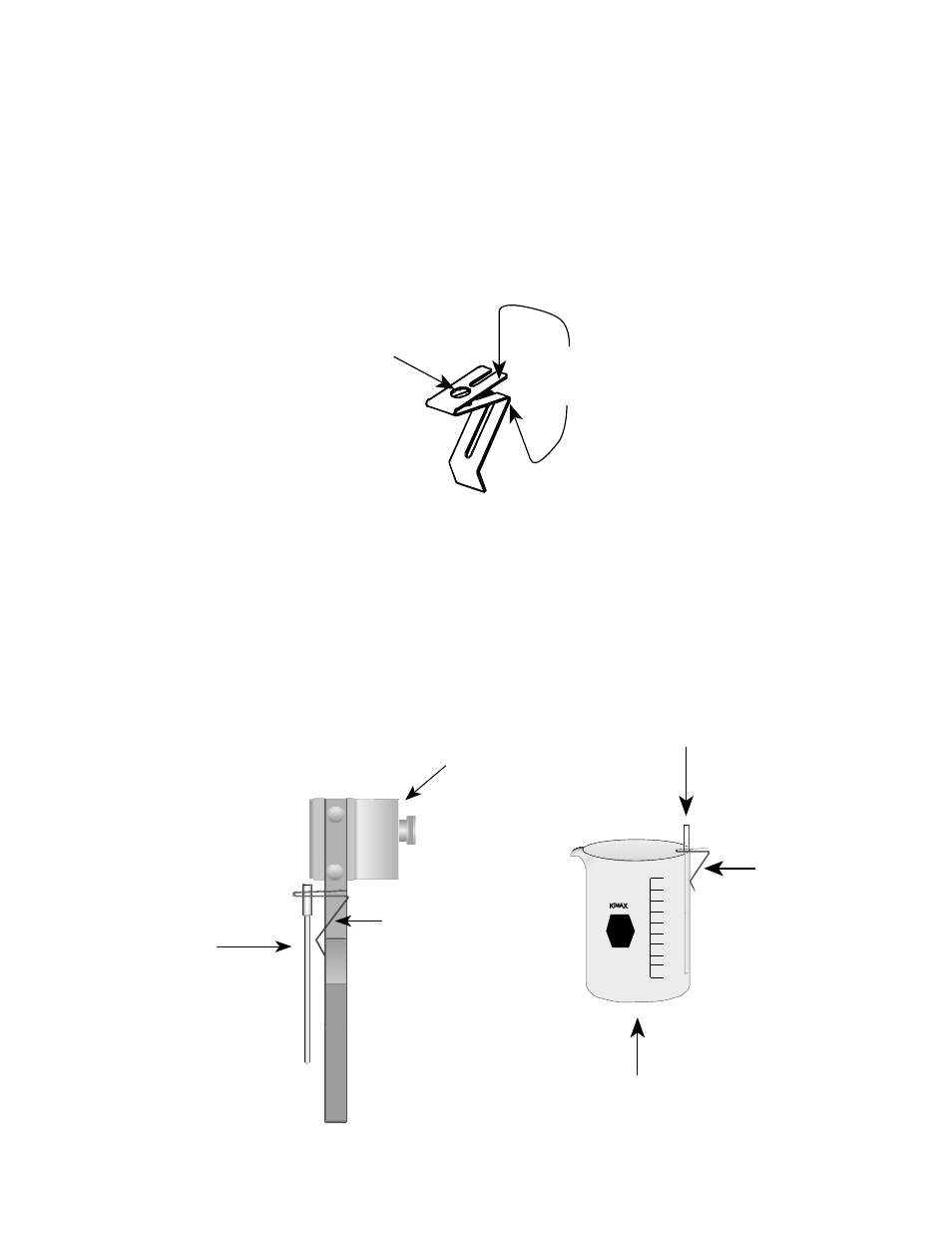

Figure H2 shows the Probe Clip (with RTD temperature probe installed) mounted on the LV guard
leg.
Figure H3 shows the Probe Clip mounted in a 600 ml low form Griffin beaker. This mounting may
be used with LV, RV, HA and HB series instruments.
Note: The RTD probe must be parallel to the beaker wall so as not to interfere with the viscosity
measurement.
Figure H2 Figure H3
