59 v
irtuAl
d
AtA
c
Ables

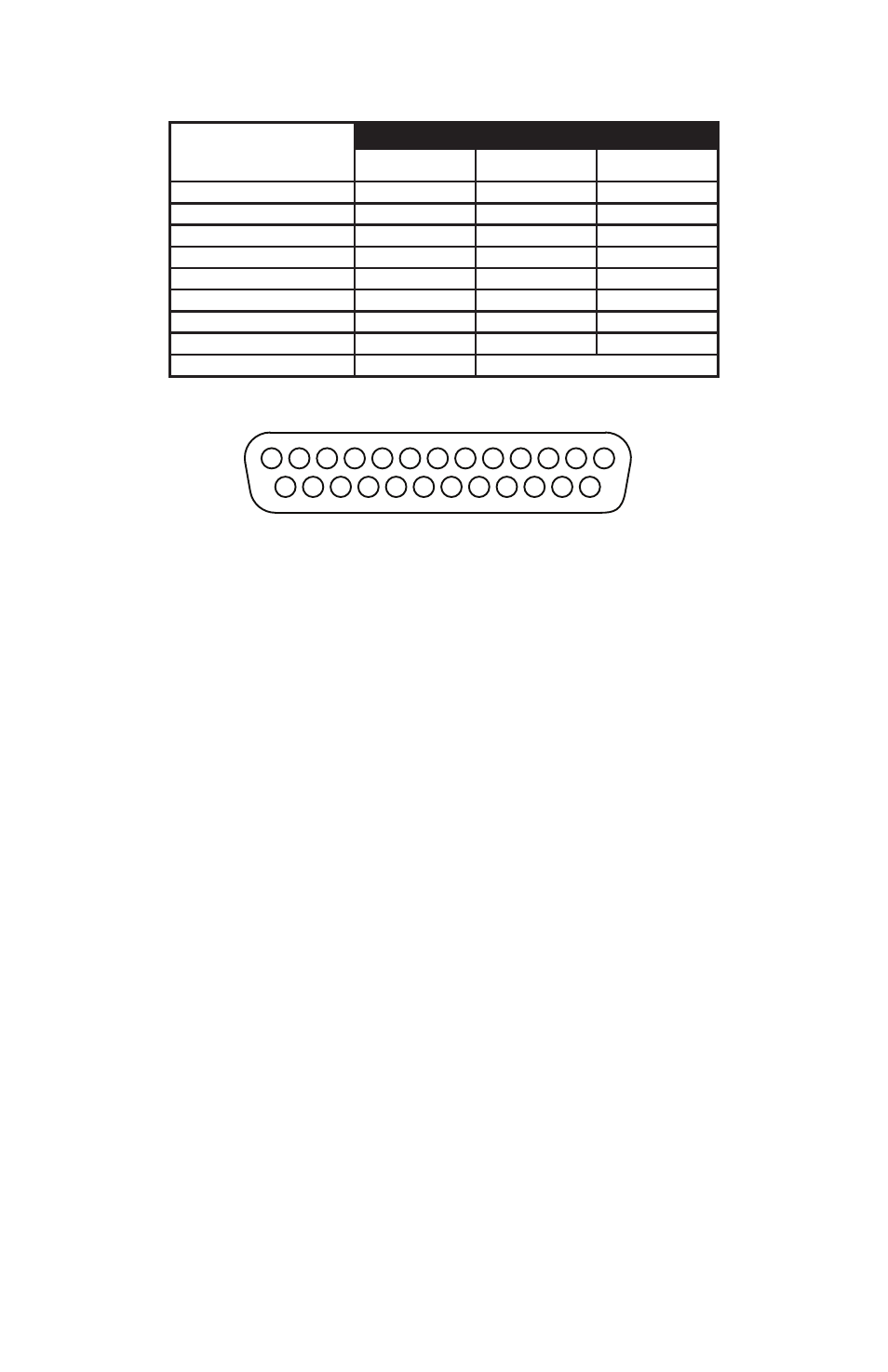

Channel
DB25 Pin Number
Hot Cold Ground
1 24 12 25
2 10 23 11
3 21 9 22
4 7 20 8
5 18 6 19
6 4 17 5
7 15 3 16
8 1 14 2
No Connect 13
13 12 11 10 9 8 7 6 5 4 3 2 1
25 24 23 22 21 20 19 18 17 16 15 14
The pins on the panel-mounted DB25 jacks are
numbered according to the diagram above.
The DB25 panel‑mount connectors have #4‑40 UNC thread.
P N
ote
: Strain relief is suggested when using DB25 cable assemblies. DB25
breakout cables should always be supported when connected to a
Pro64 product to reduce the risk of damaging the Pro64 product’s
rear panel.
