Low Cut Button
The Low Cut button applies a bass rolloff filter centered at 85Hz to the
selected channel. Use this to eliminate low frequency interference such as
microphone handling noise, rumble, etc.
Press the
l
ow
C
ut
button once; the yellow LED in the selected channel strip
will light to indicate that the function is enabled. Press
l
ow
C
ut
again to turn
the filter off. It is not necessary to press Enter.
The Low Cut filter can be controlled from a Yamaha device using m‑control.
The filter on/off state is saved with a mic pre Preset.

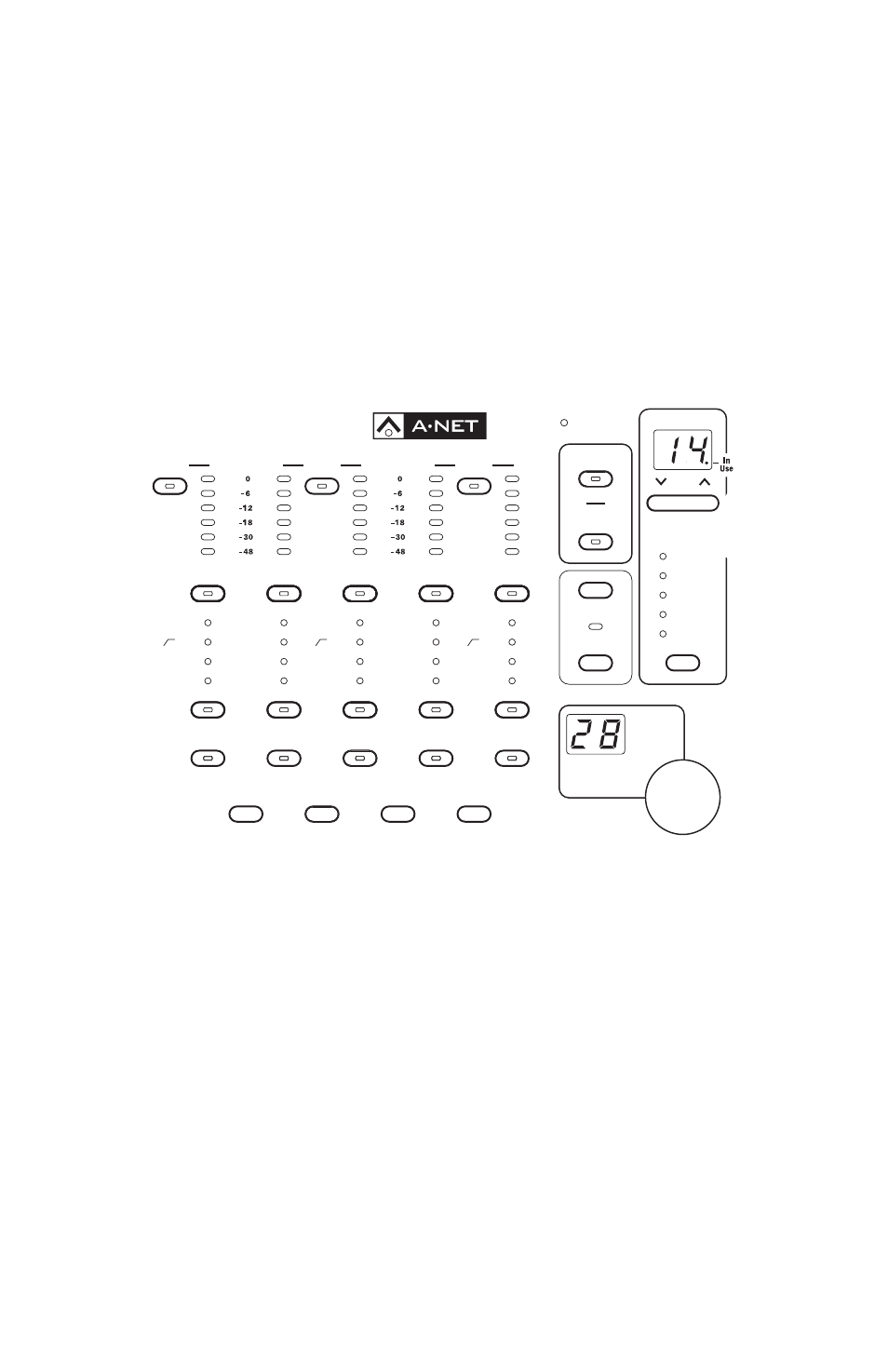

6416
m
A-NET SLOT
Edit Lock
Managed
Edit
CONTROL
MASTER
ENTER
CANCEL
Gain
(dB)
Port A
Port B
Auto
A-NET
TRANSMIT
Manual
VDC SLOT
RS-232
MIDI In
MIDI Out
GPIO In
GPIO Out
ASSIGN
PORT
CLOCK
MASTER
CONTROL
Sample Rate
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Link
Link
Link
Link
Link
Link
Link
Link
Mute
Edit
Mute
Edit
Mute
+48V
Phase
Low Cut
SAVE
RECALL
Pad
Ø
Pad
+48V
Ø
Pad
+48V
Ø
Pad
+48V
Ø
Pad
+48V
Ø
Pad
+48V
Ø
Pad
+48V
Ø
Pad
+48V
Ø
Pad
+48V
Edit
Mute
Edit
Mute
Edit
Mute
Edit
Mute
Edit
Mute
Edit
Mute
Edit
Mute
Mute
Mute
Mute
Edit
Edit
Edit
Edit
Mute
Edit
Mute
Edit
Mute
FUNCTION
Group 4
Group 3
Group 2
Channel strip settings include Phase, Low Cut, Pad, and +48V.
Pad Button
To lower the level of the selected channel by 24dB, press the
P
ad
button.
Since changes to the overall level of a channel caused by the use of the Pad
can cause abrupt changes in level, the use of Enter/Cancel is required to
confirm the operation.
To turn a channel’s Pad on, press the
P
ad
button once. The Enter and Cancel
LEDs will blink. Press
E
ntEr
; the Pad is on. Press the
C
anCEl
button to exit
without turning the Pad on.
To turn the Pad off for a channel when it is enabled, press the
P
ad
button.
The Enter and Cancel LEDs will blink. Press
E
ntEr
; the Pad is turned off. Press
