Aviom 6416m/RCI/MCS - Manual (Page 64)

53 6416
M
F
ront
P
Anel
6416
m
A-NET SLOT
Edit Lock
Managed
Edit
CONTROL
MASTER
ENTER
CANCEL
Gain (dB)
Port A
Port B
Auto
A-NET
TRANSMIT
Manual
VDC SLOT
RS-232
MIDI In
MIDI Out
GPIO In
GPIO Out
ASSIGN
PORT
CLOCK
MASTER
CONTROL
Sample Rate
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Link Link Link Link Link Link Link Link
Mute
Edit
Mute
Edit
Mute
+48V Phase Low Cut SAVE RECALL Pad
Ø
Pad
+48V
Ø
Pad
+48V
Ø
Pad
+48V
Ø
Pad
+48V
Ø
Pad
+48V
Ø
Pad
+48V
Ø
Pad
+48V
Ø
Pad
+48V
Edit
Mute
Edit
Mute
Edit
Mute
Edit
Mute
Edit
Mute
Edit
Mute
Edit
Mute Mute Mute Mute
Edit Edit Edit Edit
Mute
Edit
Mute
Edit
Mute
FUNCTION
Group 4
Group 3
Group 2

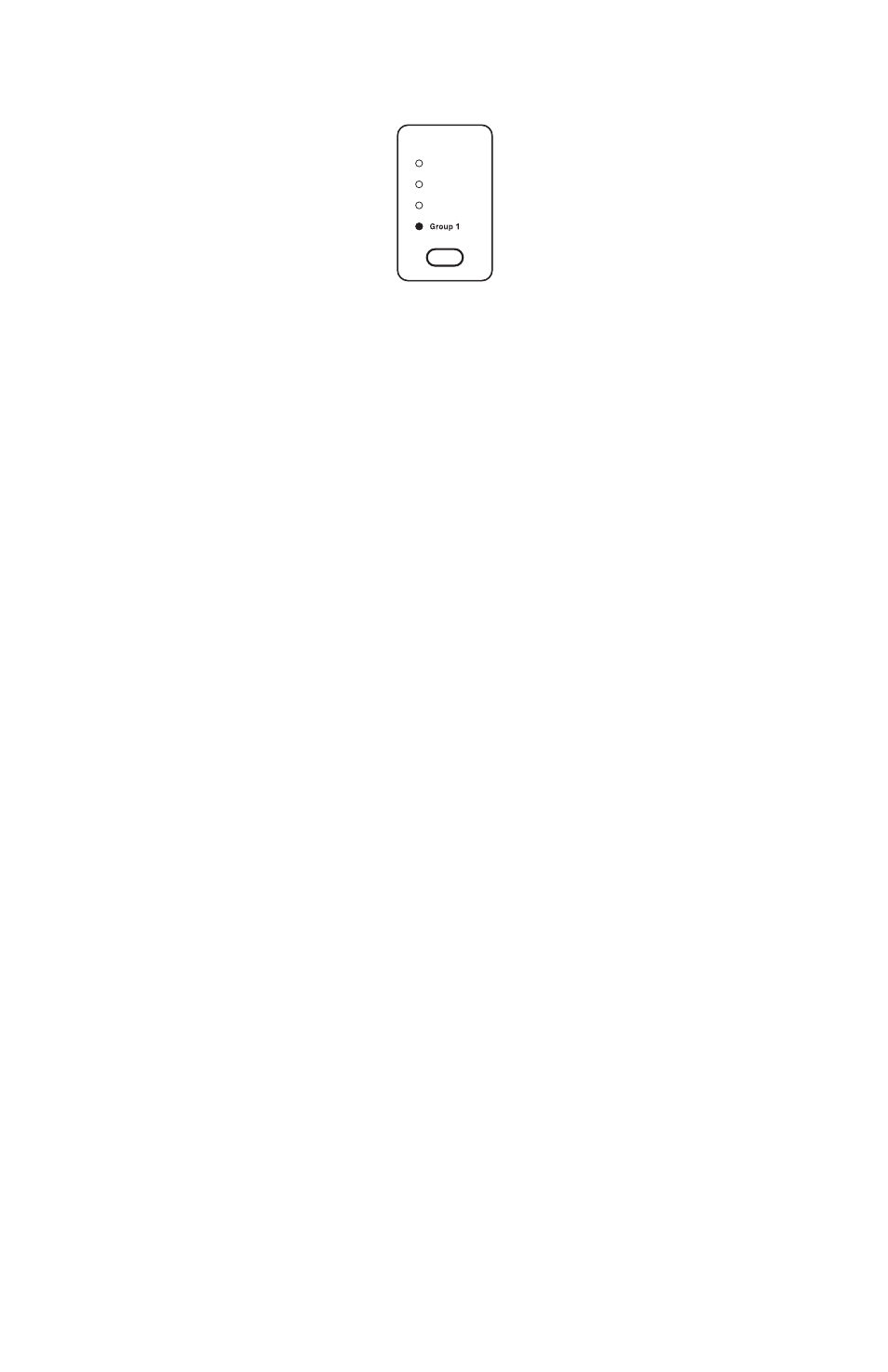

The 6416m is set to be part of Control Group 1.
A mic preamp must be set to one of the four Control Groups in order to be
remote controlled using an RCI and MCS.
Use the selection button to cycle through the selections, Groups 1‑4 and
Off. Only active mic channels in the currently selected Control Group can be
edited with an MCS connected to an RCI.
When operating a Pro64 network that contains 6416m Mic Input Modules
but no RCI or MCS units, the Control Group setting has no effect.
Control Group settings are not saved as part of a Preset.
Refer to the information in the following section regarding how Presets and
Control Groups interact with and without the RCI/MCS in the network.
