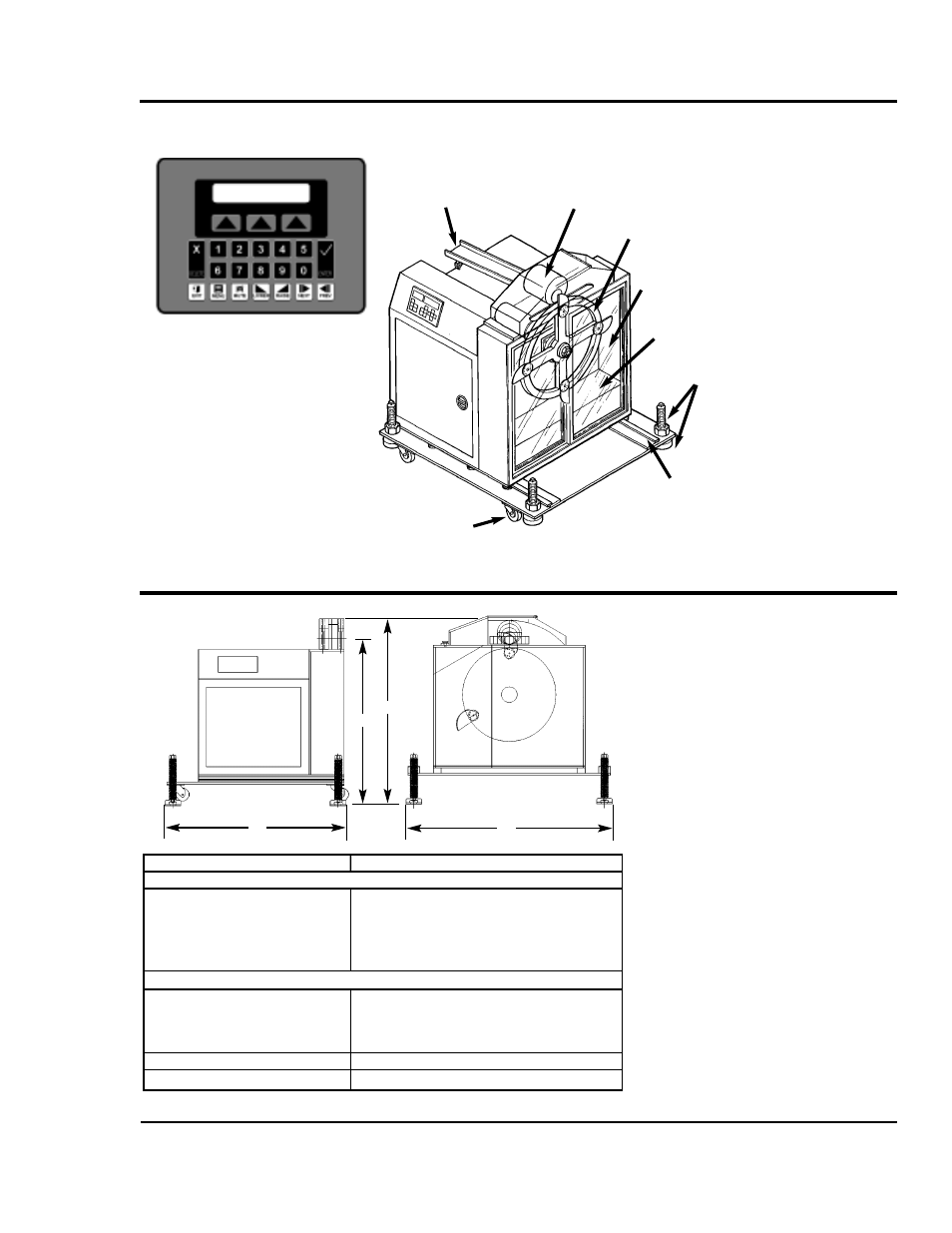

The SC-5 Sure Cut Servo Cutter features: SC-5
F
EATURES
D
ESCRIPTION
2-7
UGE059/1003 SC-5 SURE CUT Servo Knife Cutter
Swivel Casters
Parts discharge chute or
optional discharge conveyor
Optional slide base
assembly with position
locking mechanism
Wide Range of Cutter
Bushing Capacities
24-inch diameter fly-
wheel with multiple
blade mounting system
Polycarbonate blade
observation window
Optional blade
lubrication system
Heavy-duty leveling
screws and pads
CONAIR SERVO CUTTER
Version 1.0
The standard control:
● Large easy-to-read display.
● Soft keys allows the opera-
tor to select different func-
tions.
● Numeric keys permits data
entry for the operator.
● Fixed function keys contain
universal symbols and text.
MODELS SC-5
Performance characteristics
Extruder capacity in. {mm}
Tube diameters 2.25 - 5.25 {57 - 133}
Profile dimensions 2x4 - 2x10, 4x7 {51x102 - 51x254, 102x178}
Blade drive motor Hp {kW} 4.6 {3.4}
Feed direction right>left
Dimensions in. {mm}
A - Height
47 {1194}
B - Height to centerline 40±2 {1016±50.8}
C - Length 44 {1118}
D - Width 52 {1321}
Voltage/phase/frequency 230 V/3/60 Hz 0r 460 V/3/60 Hz
Cutter control Red Lion {CL01/FM4}
A
B
C D
● 24-inch flywheel
● Up to 150 cuts/minute on
demand with one blade
● Up to 300 cuts/minute with one
blade on Flywheel mode
● Blade speeds adjustable to
300 RPM
● Surface speeds to 0.438 inches
per millisecond
● Heavy-duty positional AC
brushless servo drive
● 10:1 planetary gear head
reducer
● 3,000 pulse bi-directional
encoder
S
PECIFICATIONS
